Vacuum Tube Lifter VHZ Basic is the right answer for your needs if you need to lift and handle loadsquickly and easily. Its advantage is the single medium responsible for graspingand lifting the load. It is a vacuum. No electric hoist and no pneumatic orhydraulic rollers are necessary. The operator controls the lifting and loweringof the load using a control handle. When you increase the vacuum in the system,the load lifted; when you decrease the vacuum in the system, the load islowered.

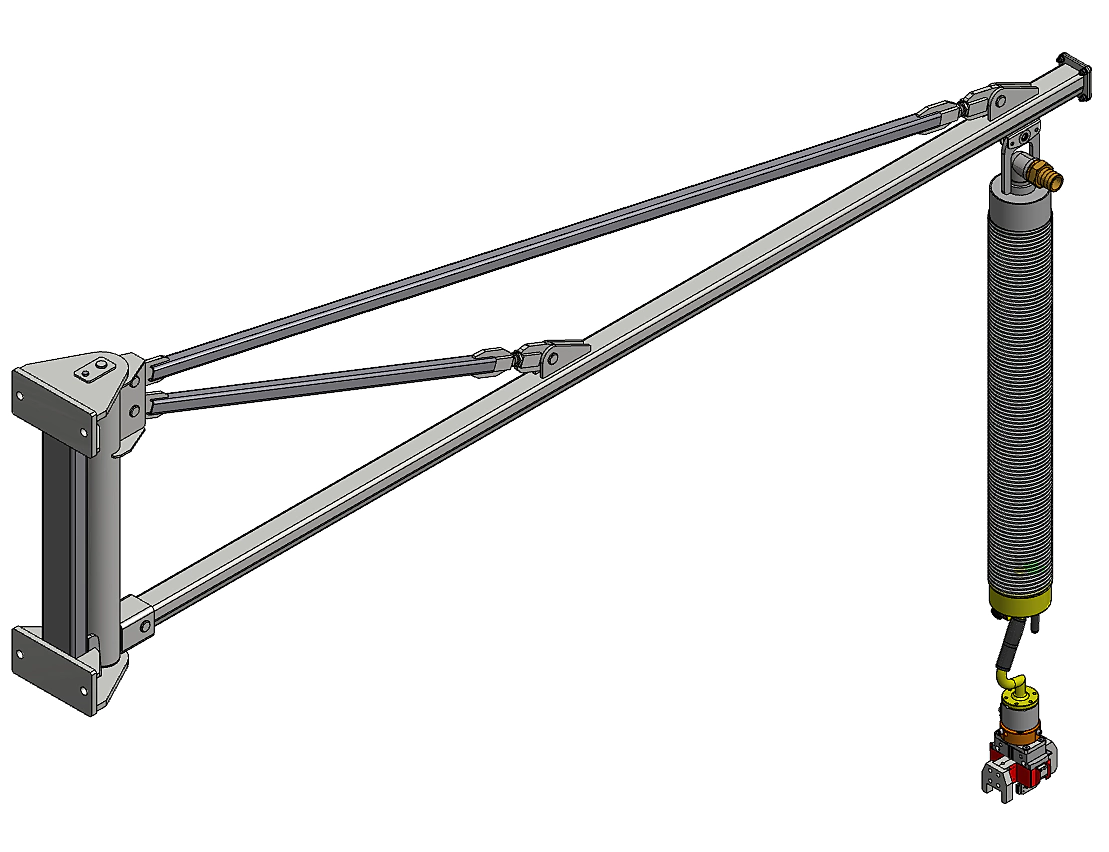

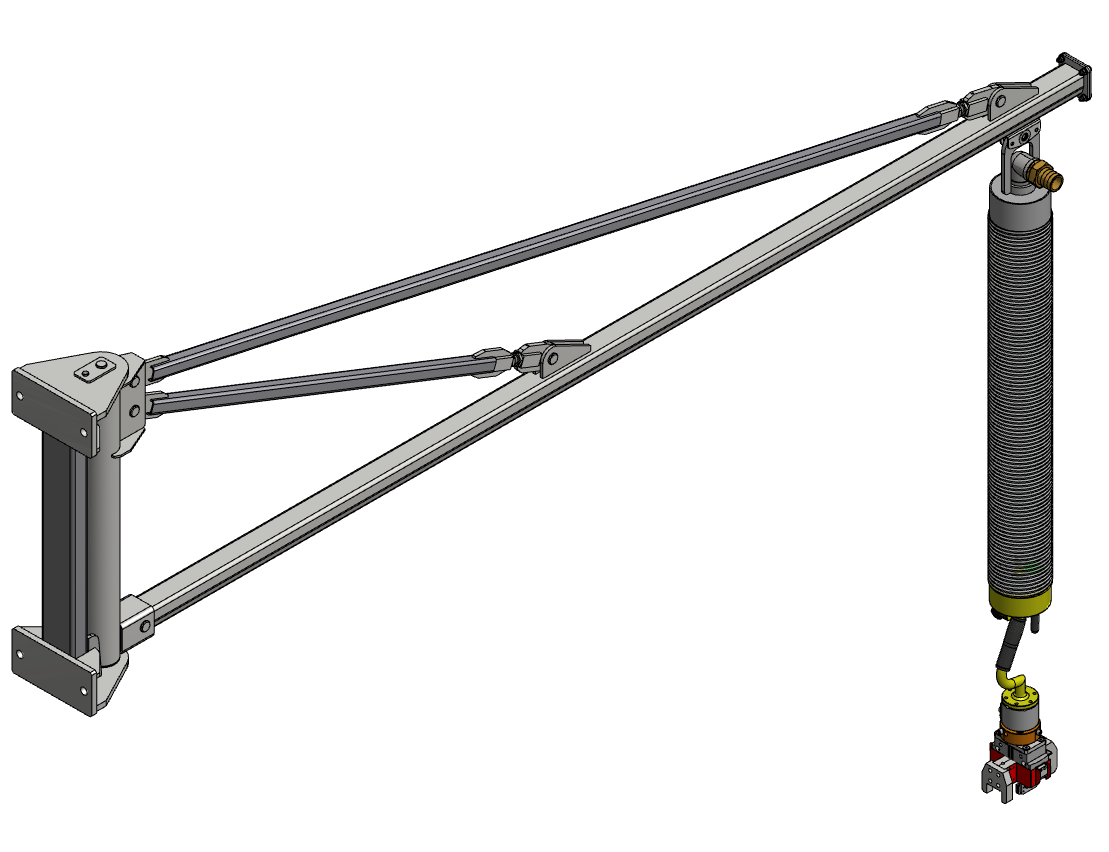

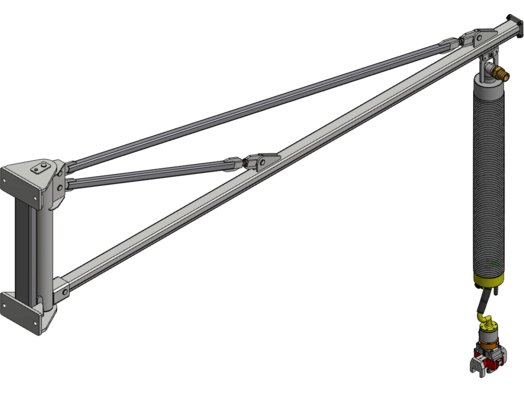

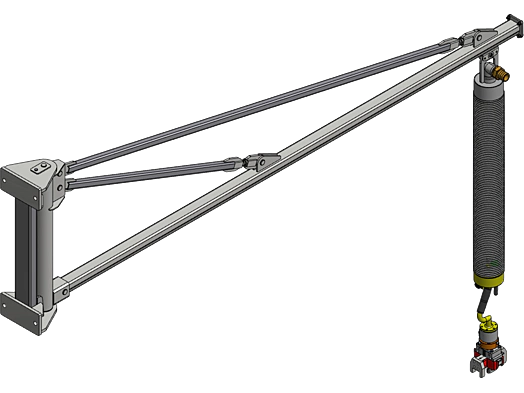

VACUUM TUBE LIFTER - VHZ Basic

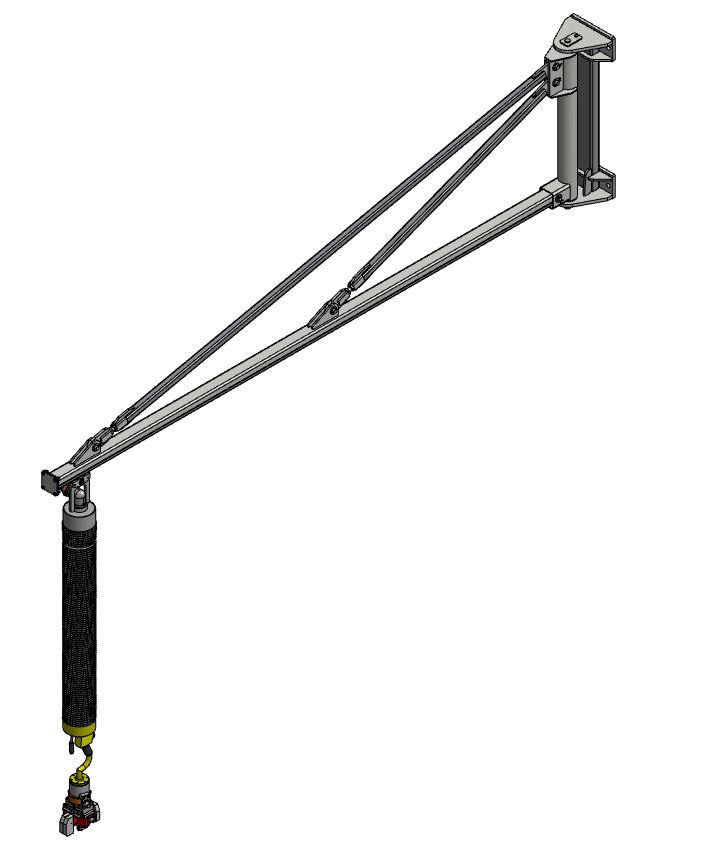

The Vacuum Tube Lifter - VHZ Basic is a universal handling system without a columnstructure, with light manual rotation, travel and simple operation
Application:

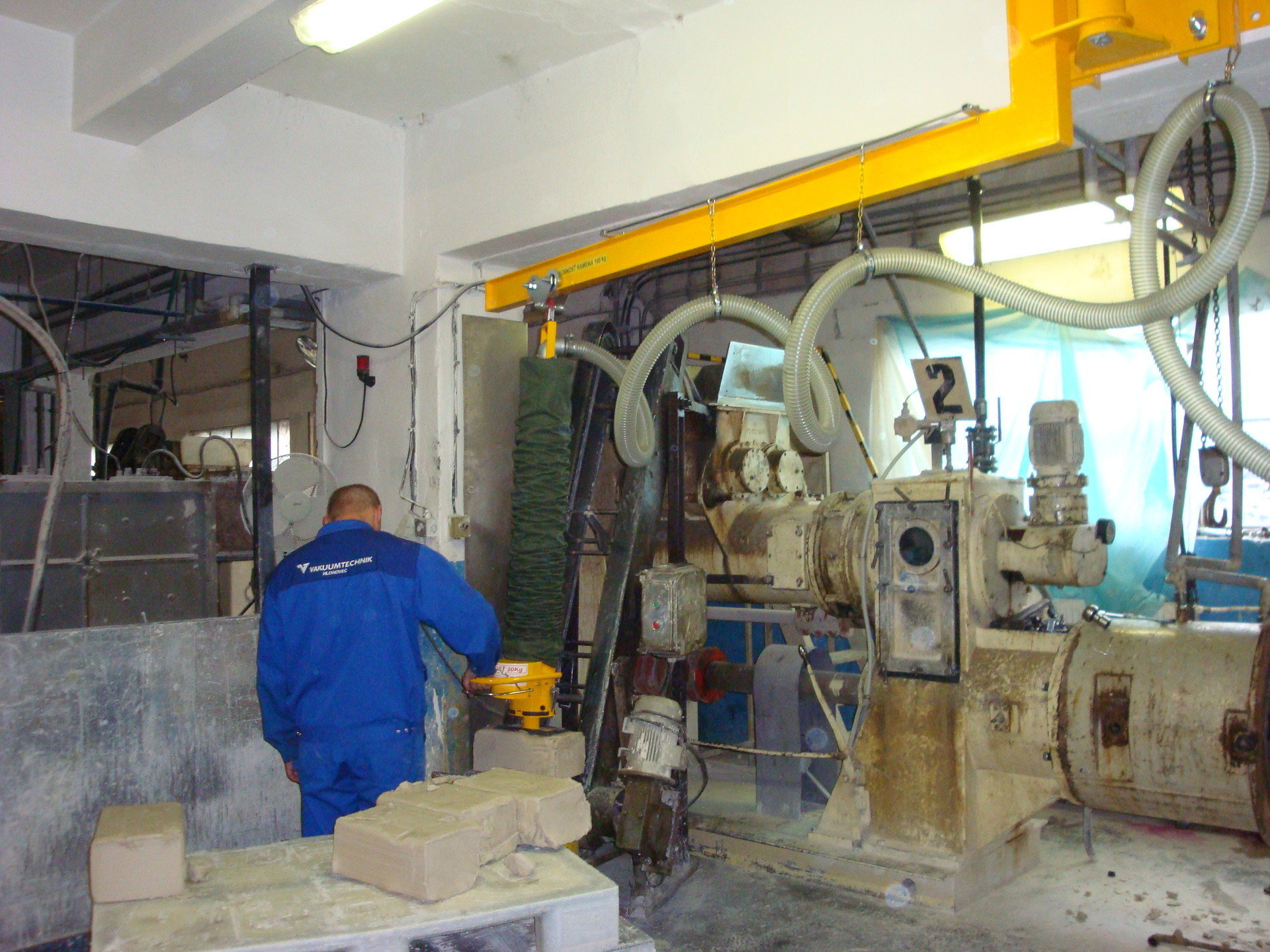

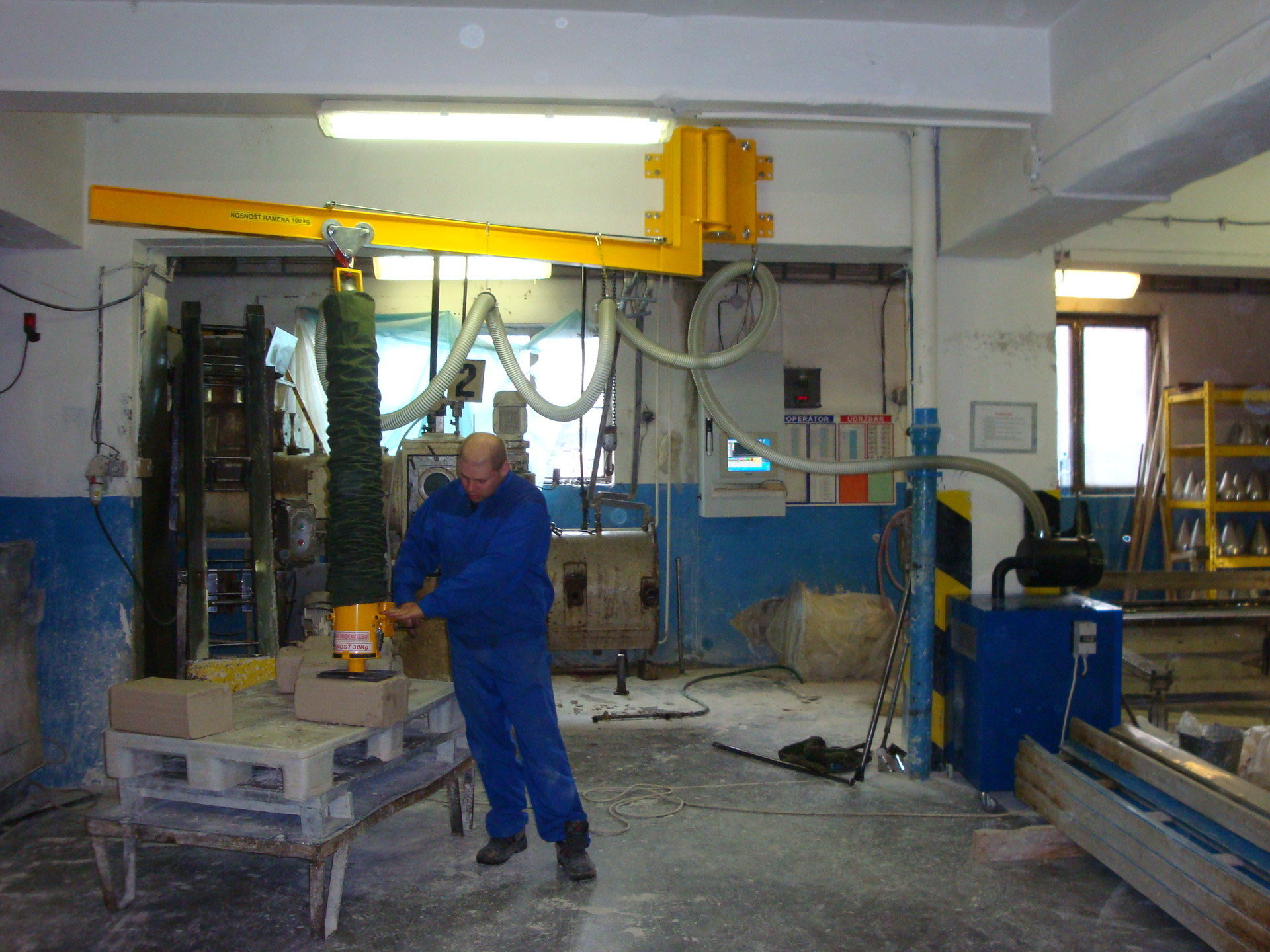

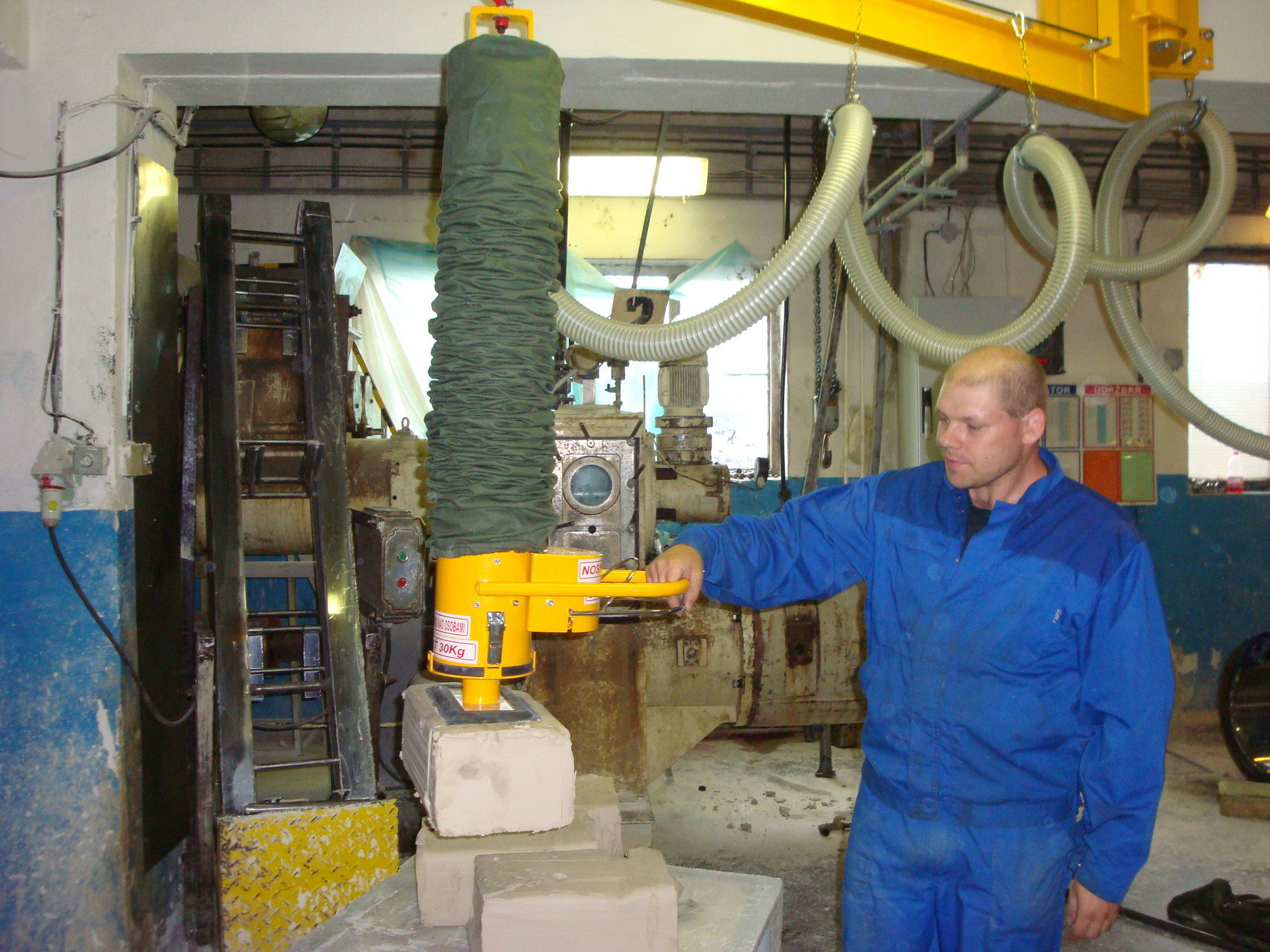

The Vacuum Tube Lifter VHZ Basic is a universal handling system that is easy to operate.It is mounted in a side wall or structure. The device allows you to grasp, liftand handle small-sized or large-sized loads in a horizontal position within thework area, which is given by the range of the VHZ Basic Vacuum TubeLifter.This device can be mounted with lifting capacity ranging from 30 kg to 150 kg.
Potential types of loads to be handled:
- Cardboard boxex
- Paper or textile bags
- Barrels
- Wooden plates and boards covered with air-tight finish
- Plastic plates and boards
- Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
- Stone with grinded surface
- Glass plates and boards
Benefits:
- Reliable - high reliability andminimal maintenance are ensured
- Safe - safety guaranteed inevery situation
- Variable - various terminal vacuum ormechanical tools for grasping loads can be delivered
- Practical - its versatilityand a wide range of structural systems will meet even the most demandingrequirements of the industry
Basic technical information:
| Maximum lifting capacity | 30, 50, 75, 100, 150 kg |
| Intended handling | in horizontal position |
| Vertical movement | do 1700 mm |
| Lifting speed | 0-50 m/min |
| Power supply | 3+PE (PEN) 400VAC/50Hz/15VAC |
Information table:

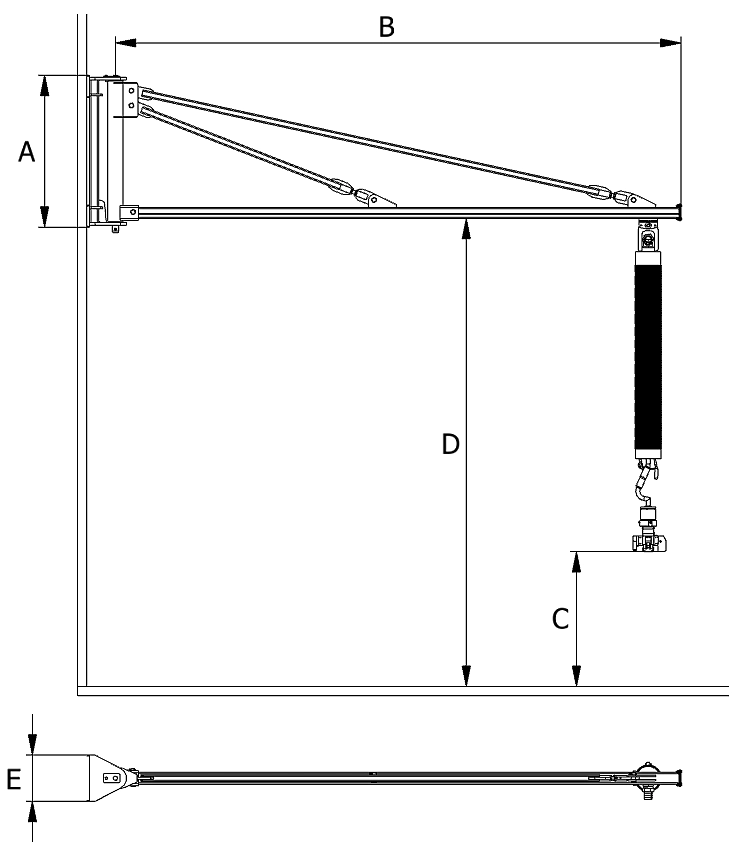

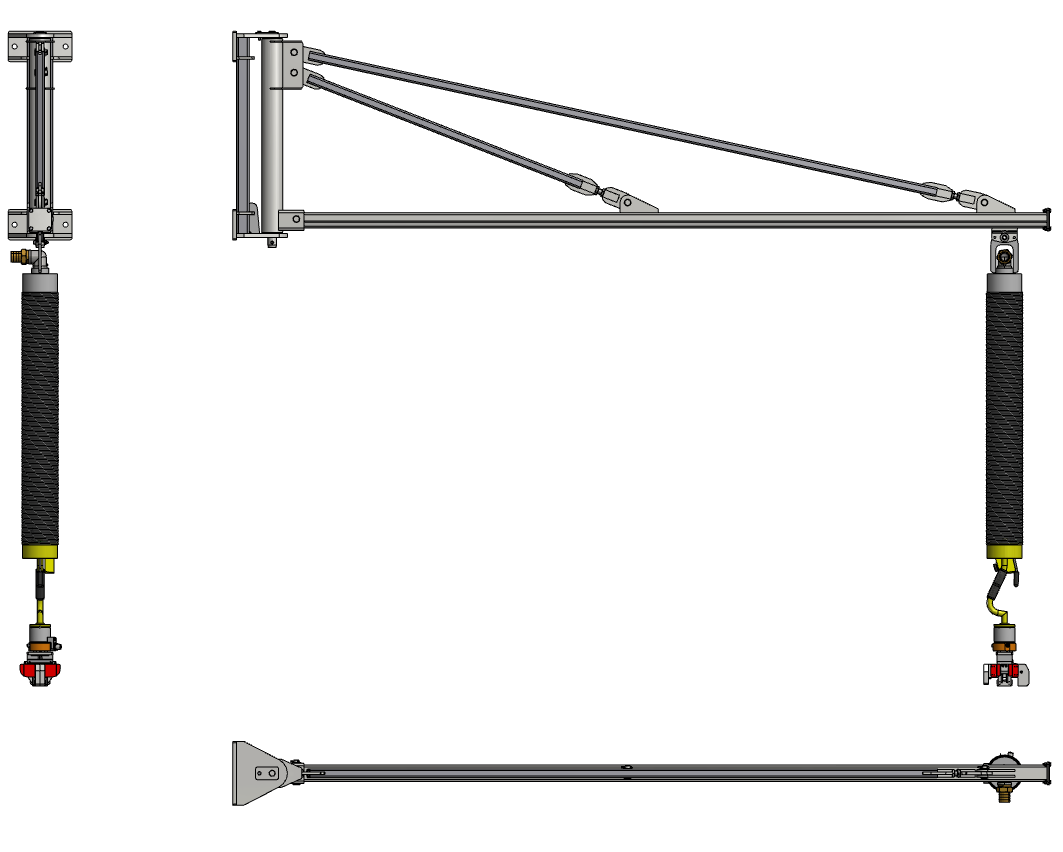

| VHZ TYPE | LIFTING CAPACITY (kg) | CONTROL | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|
| VHZ Basic 30 | 30 | One-handed | min. 1100 max. 1600 | min. 2000 max. 5000 | 1700 | min. 3000 max. 4000 | 295 |
| VHZ Basic 50 | 50 | One-handed | min. 1100 max. 1600 | min. 2000 max. 5000 | 1700 | min. 3000 max. 4000 | 295 |
| VHZ Basic 75 | 75 | One-handed | min. 1100 max. 1600 | min. 2000 max. 5000 | 1700 | min. 3000 max. 4000 | 295 |
| VHZ Basic 100 | 100 | One-handed | min. 1100 max. 1600 | min. 2000 max. 5000 | 1700 | min. 3000 max. 4000 | 295 |
| VHZ Basic 150 | 150 | One-handed | min. 1100 max. 1600 | min. 2000 max. 5000 | 1700 | min. 3000 max. 4000 | 295 |
