Basic description:

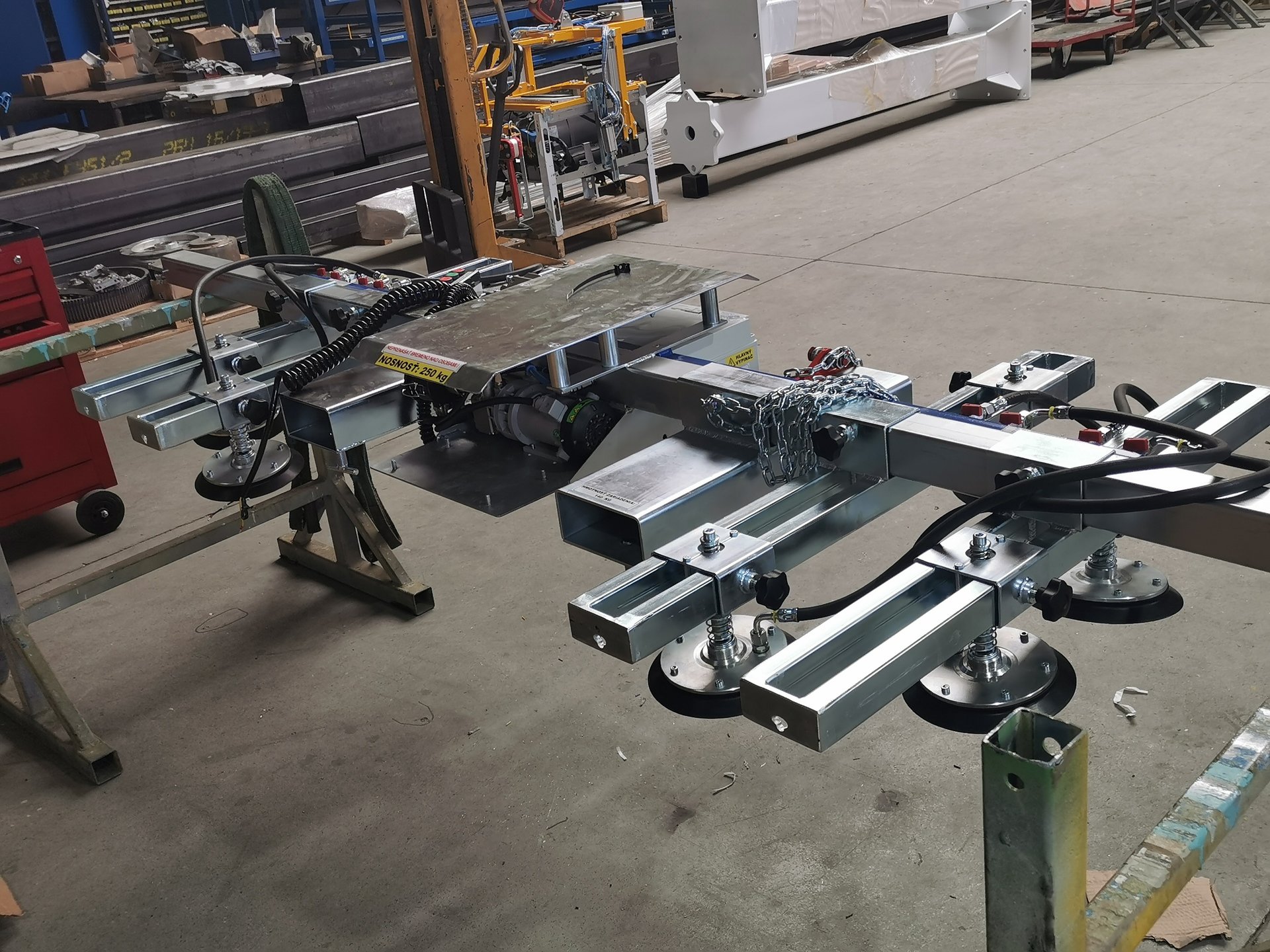

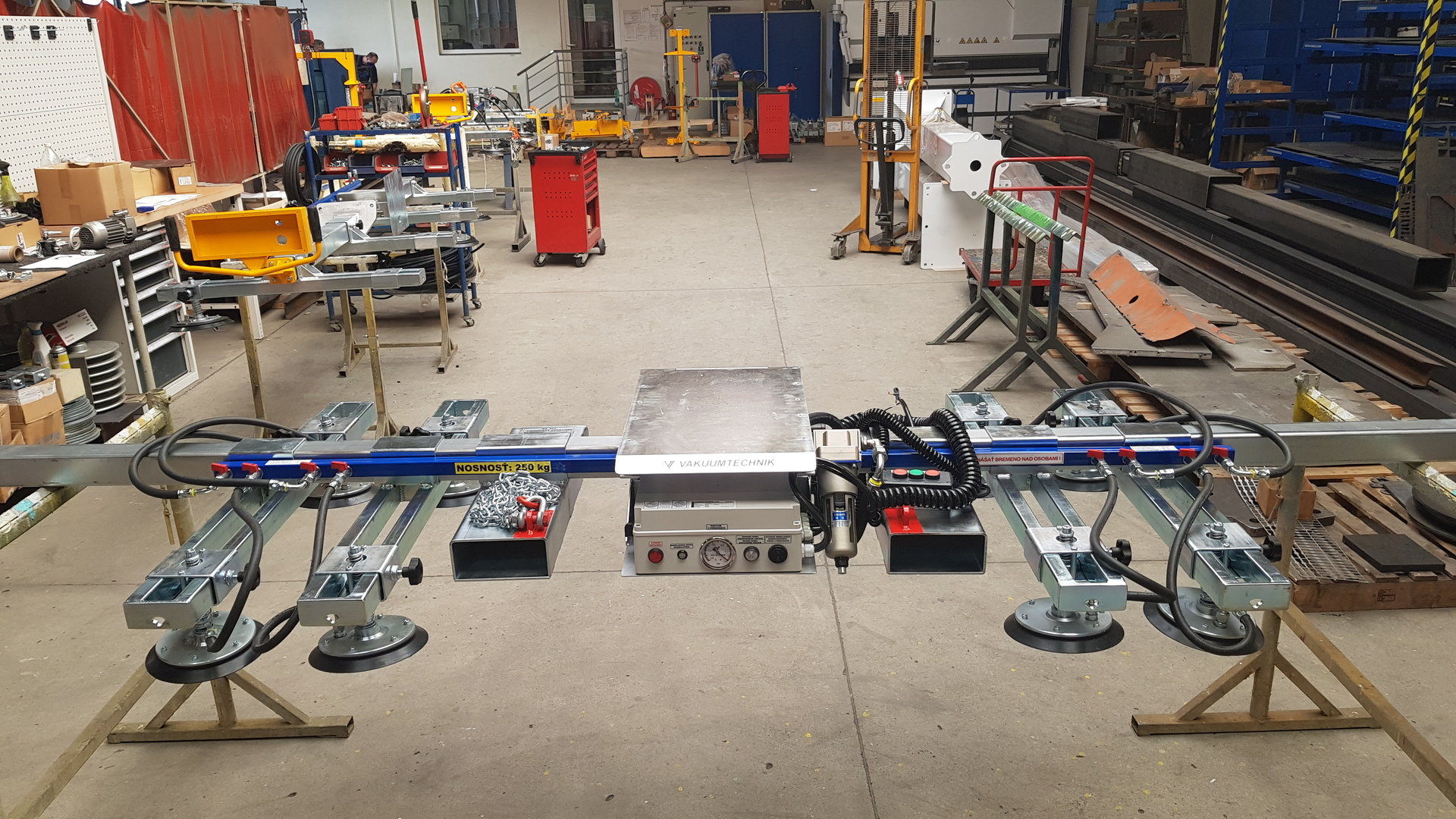

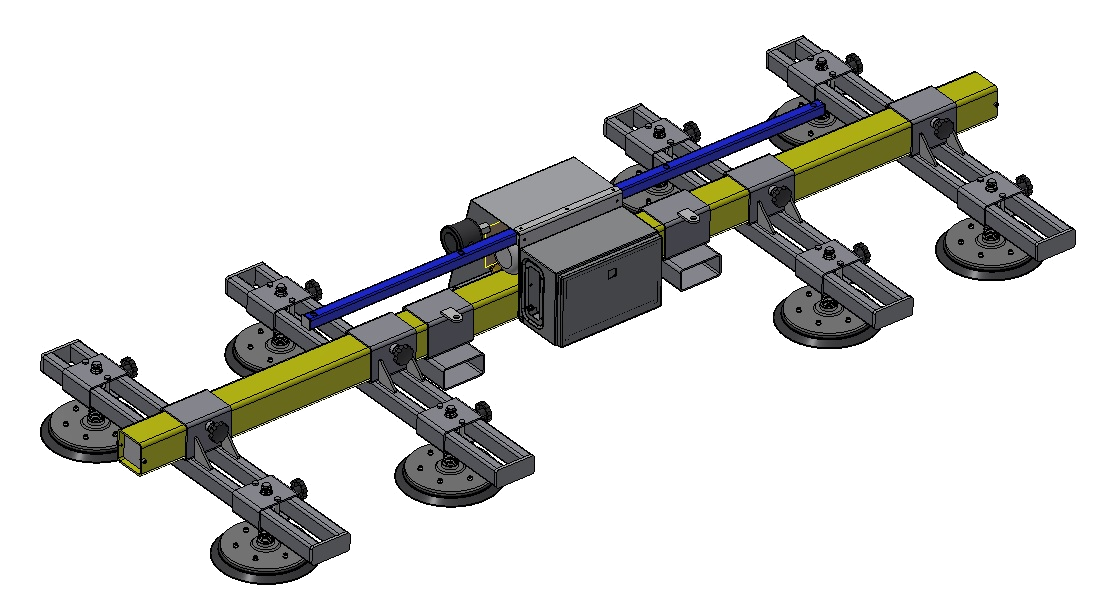

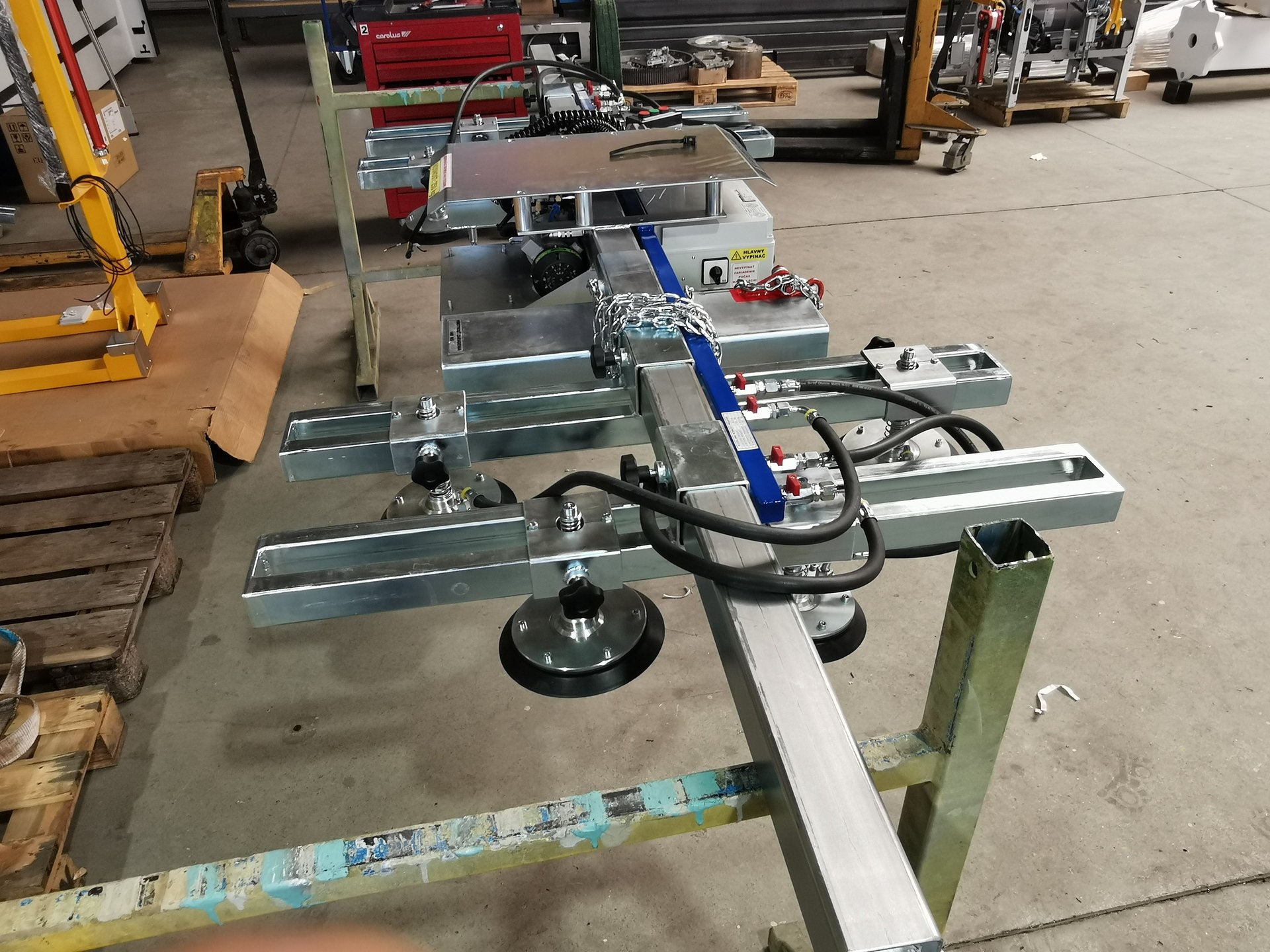

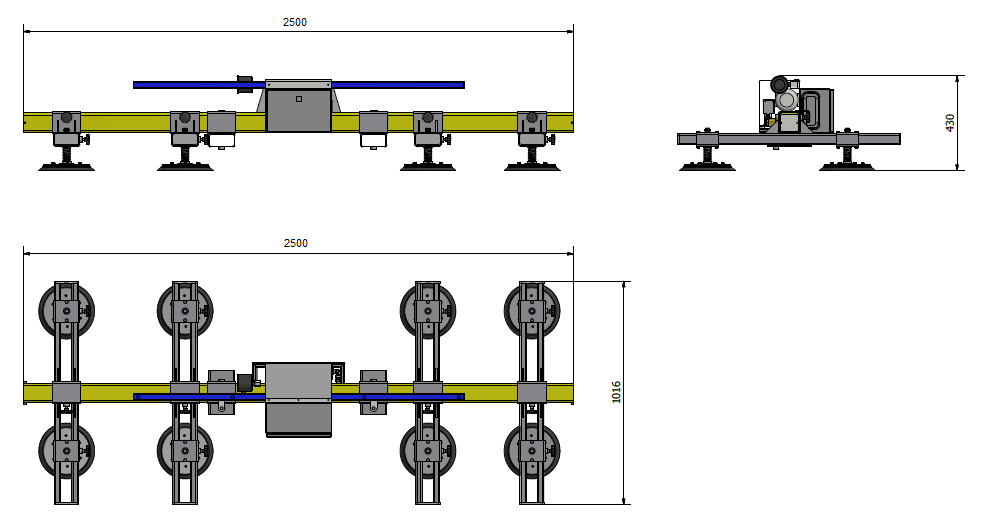

- main supporting steel structure with two brackets for attachment to a forklift
- cross beams manually adjustable in the "x" axis
- eight suction cups 255 mm in diameter
- vacuum pump – design (24V sústava)
- vacuum tank ensures safe lifting of the load even incase of an unexpected power failure of the air pump
- acoustic and visual signalisation of insufficient vacuum in suction cups
- GRIP - thrugh push-button control conveniently located at the control handles on the spiral cable up to 3 m
- RELEASE - thrugh a push-buttons control conveniently located at the control handles on the spiral cable up to 3 m
- double-acting control to suck off the load mechanically (electromagnetically using a spiral-button control - for asurcharge)
- spiral cable for connecting the handler up to 3 m
- quick-clamping system of electrical connection via a connector
