VACUUM MANIPULATOR - VM 500/7-2,5x1

Basic description:

  • main supporting steel structure with a four-pointsuspension
  • cross beams manually adjustable in the "x" axis
  • seven suction cups 255 mm in diameter
  • suction cups manually adjustable in “y¨ axis
  • vacuum pump – design (400V three phase system, or 230Vsingle phase system)
  • vacuum tank ensures safe lifting of the load even incase of an unexpected power failure of the air pump
  • acoustic and visual signalisation of insufficient vacuum in suction cups
  • GRIP/ RELEASE the load through a manual valve conveniently located on the VM control handle
  • double-acting control to suck off the loadmechanically (electromagnetically using a spiral-button control - for asurcharge)
  • spiral cable for connecting the handler up to 3 m
  • quick-clamping system of electrical connection via a connector

Application:

The vacuum manipulator VM 500/7-2,5x1 is a handy little gripping device that allows you to grip and handle small, medium or large-sized flat loads up to 500 kg in a horizontal position within the work area, which is given by the range of the lifting equipment (crane or any other lifting device) the vacuum manipulator will be suspended on.

Potential types of loads to be handled:

✓    Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
✓    Glass plates and boards
✓    Plastic plates and boards
✓    Stone with grinded surface
✓    Wooden plates and boards covered with air-tight finish

Benefits:

  • Simple – very convenient anddedicated device that is easy to operate
  • Variable – transverse beams and suction cups on the beam can beeasily adjusted by hand
  • Reliable – high reliability and minimalmaintenance are ensured
  • Safe – safety guaranteed in every situation
  • Possibility of gripping sheet metal blanks from the size of 300x300 mm

Basic technical information:

Maximum load capacity500 kg (with negative pressure –0.6 bar (-60 kPa))
Designed for manipulationin horizontal position, to be lifted on a lifting device
Weight135 kg
Max. load dimensions3000x1500 mm
Min. load dimensions300x300 mm
Power supplya) 3 PE (PEN) 400VAC/50Hz/15VAC
b) 1+N+PE 230VAC/50Hz/24VDC

Information table:

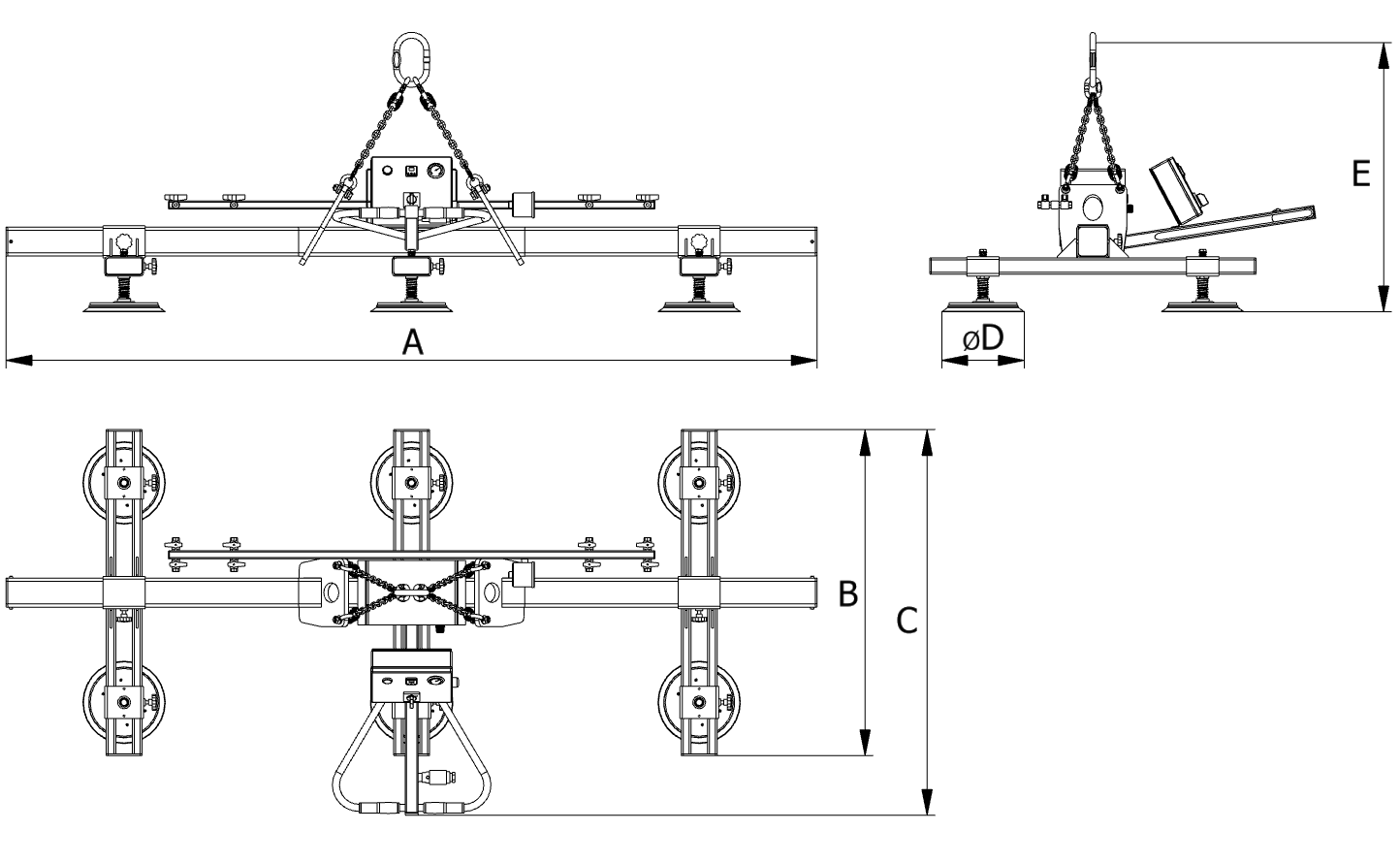

Number of suction cups / diameter (mm)LOAD CAPACITY (kg)WEIGHT (kg)A (mm)B (mm)C (mm)D (mm)E (mm)
7/255500135252010101308255780

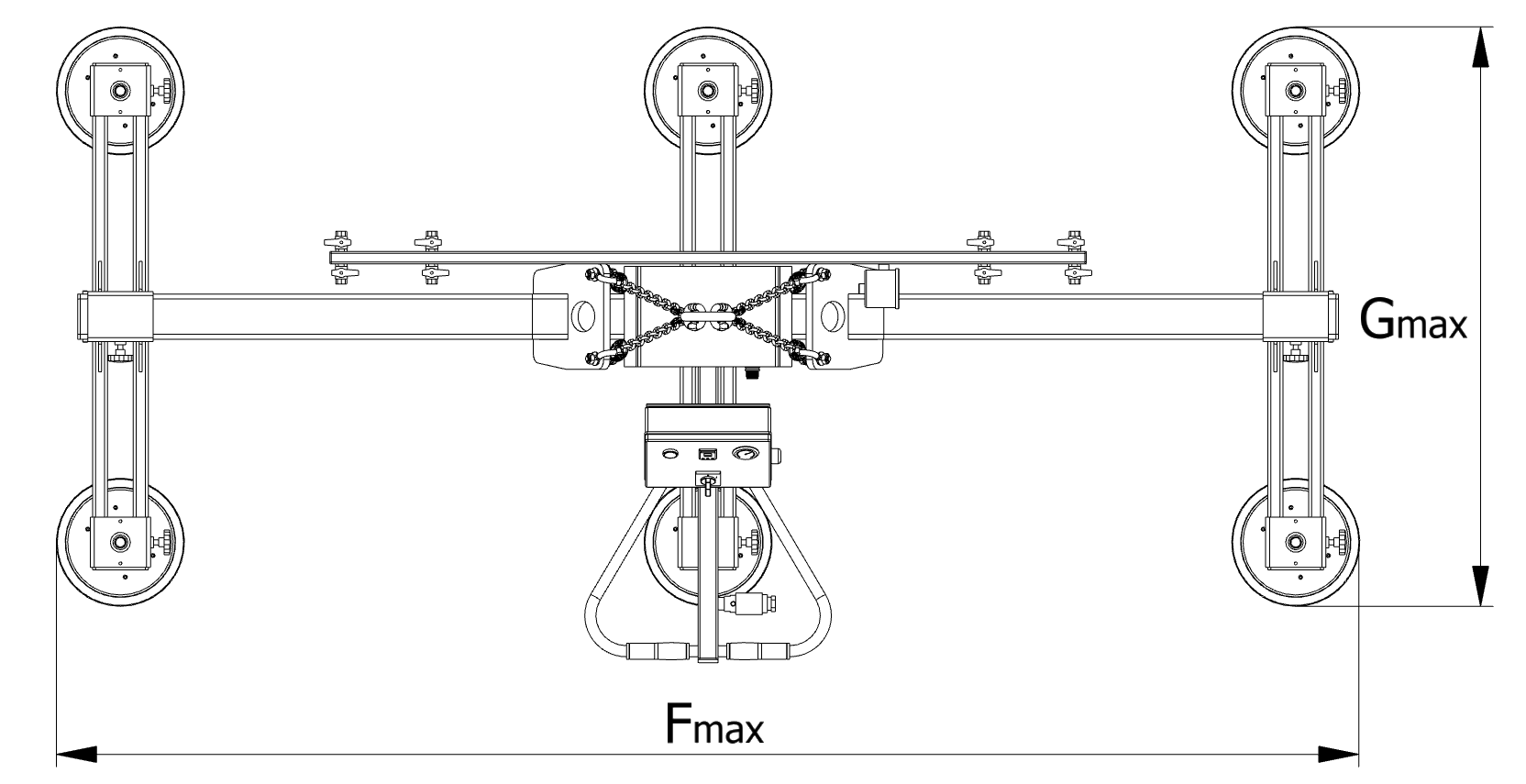

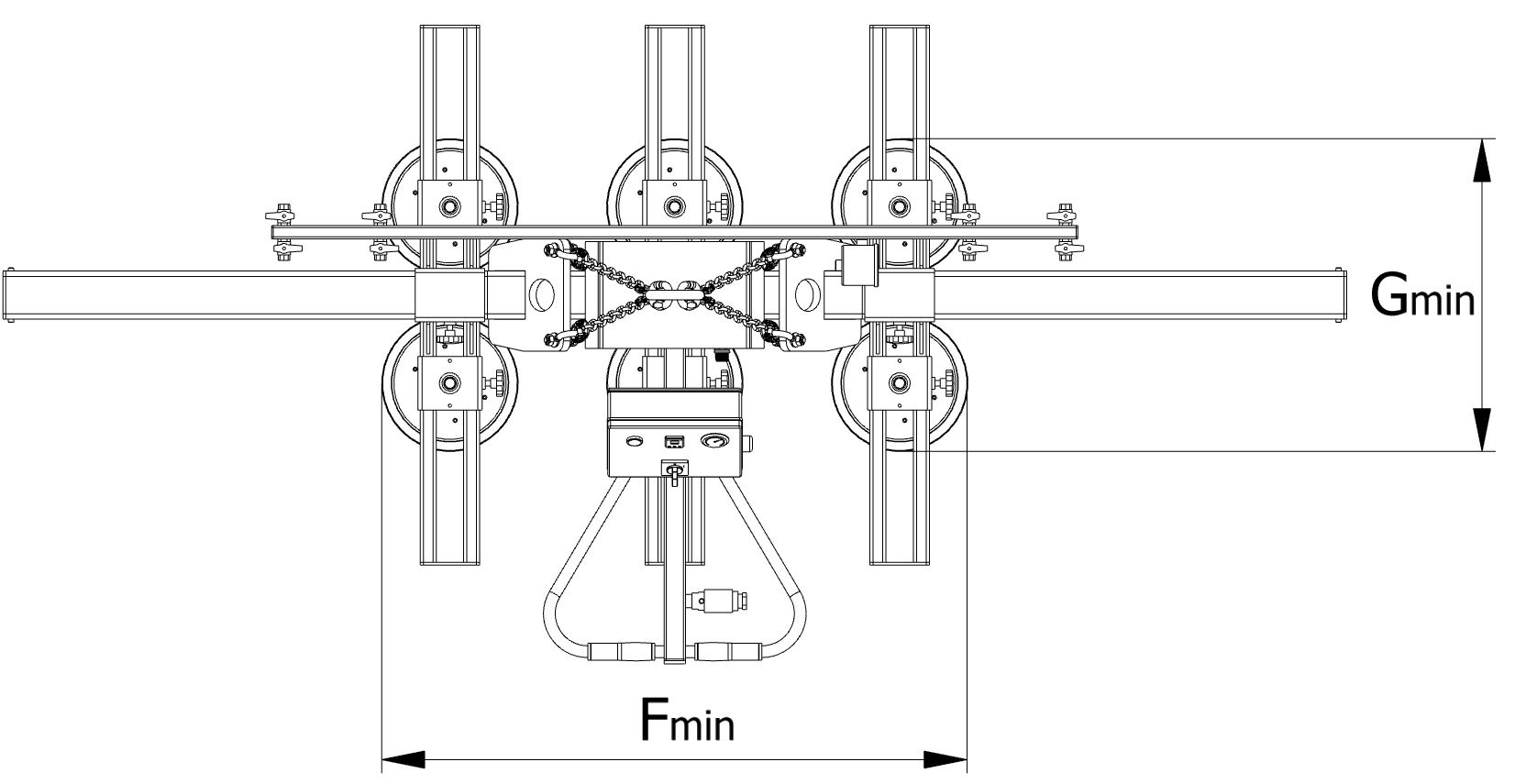

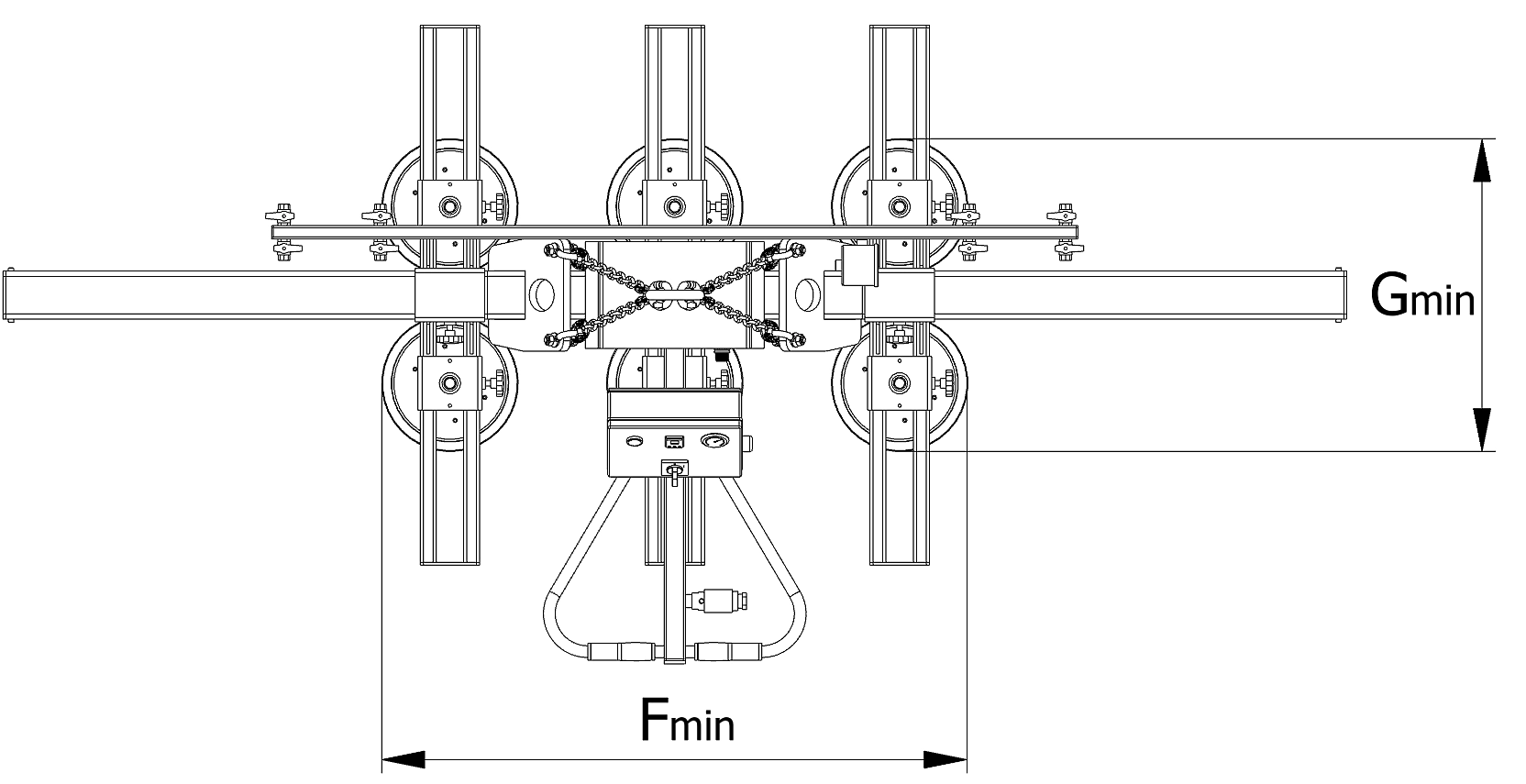

F min (mm)F max (mm)G min (mm)G max (mm)
110025906001155

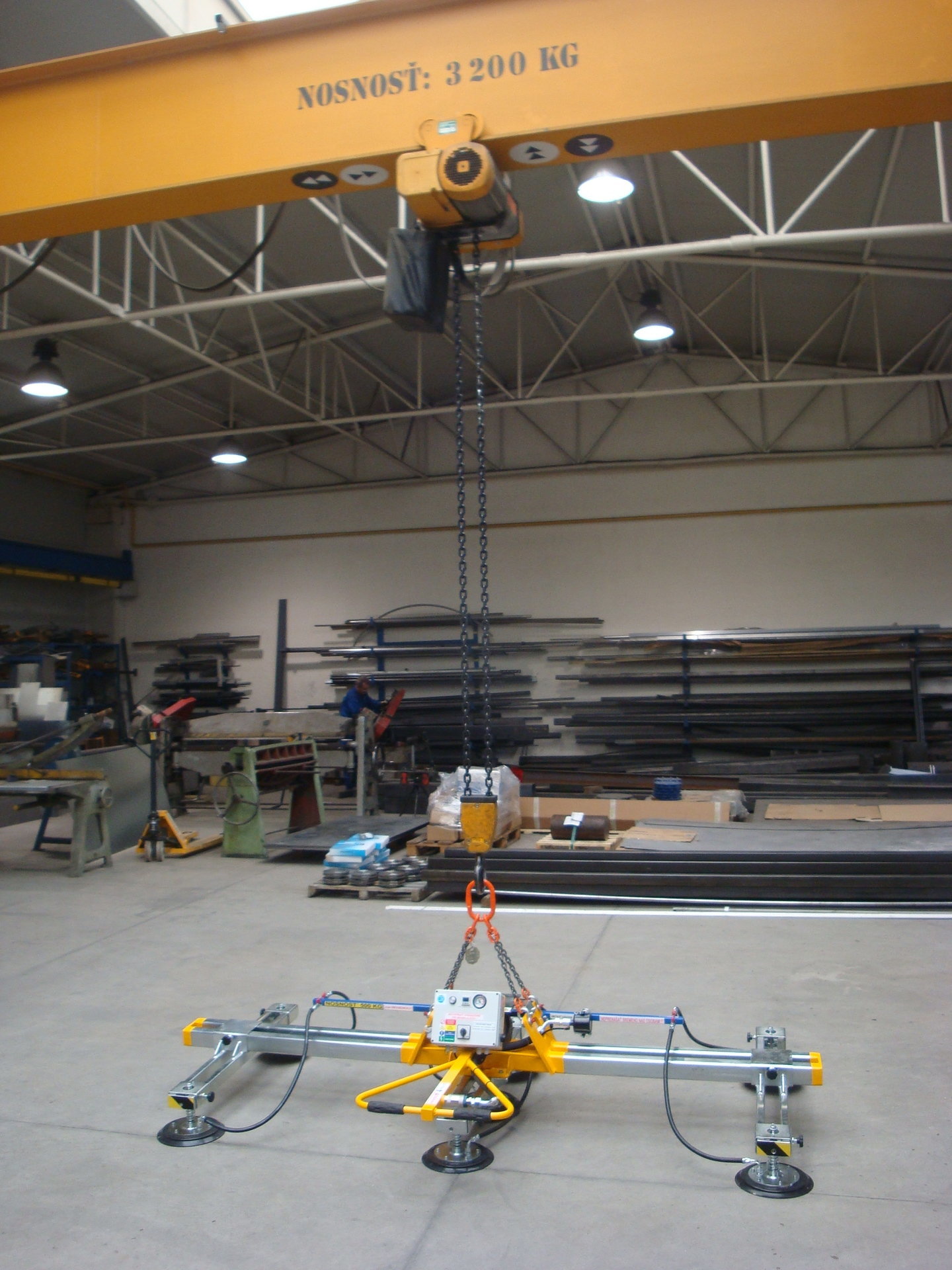

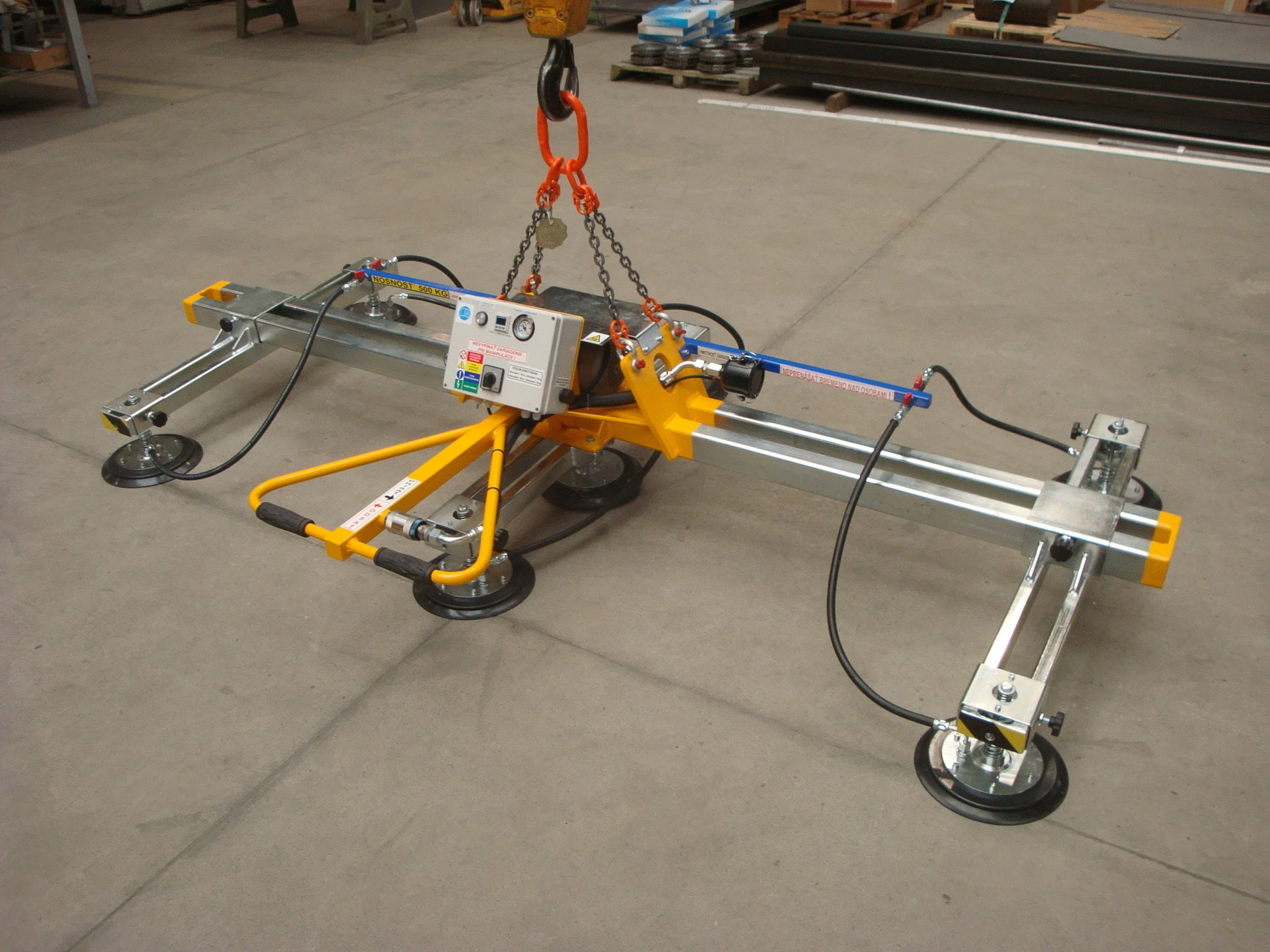

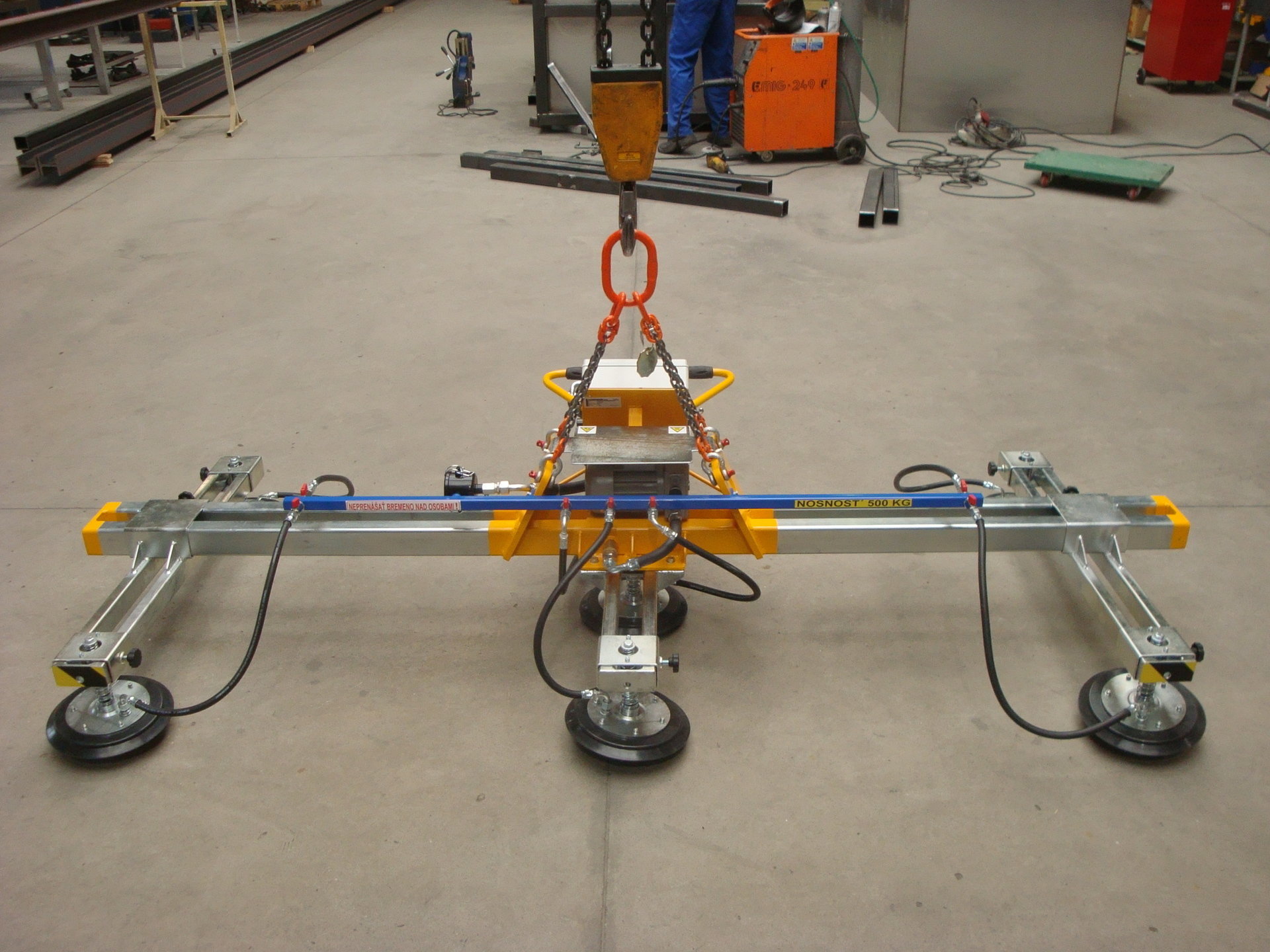

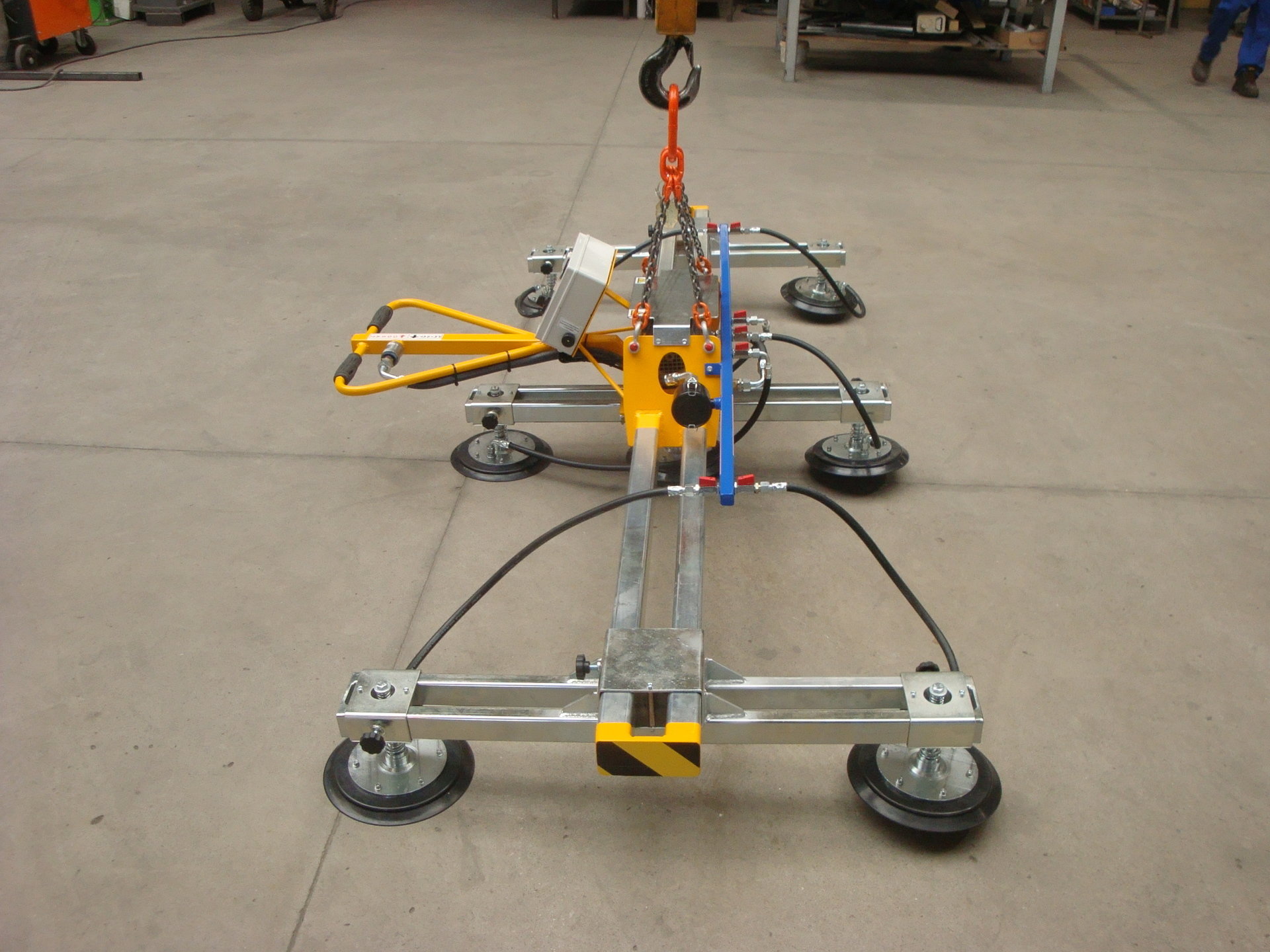

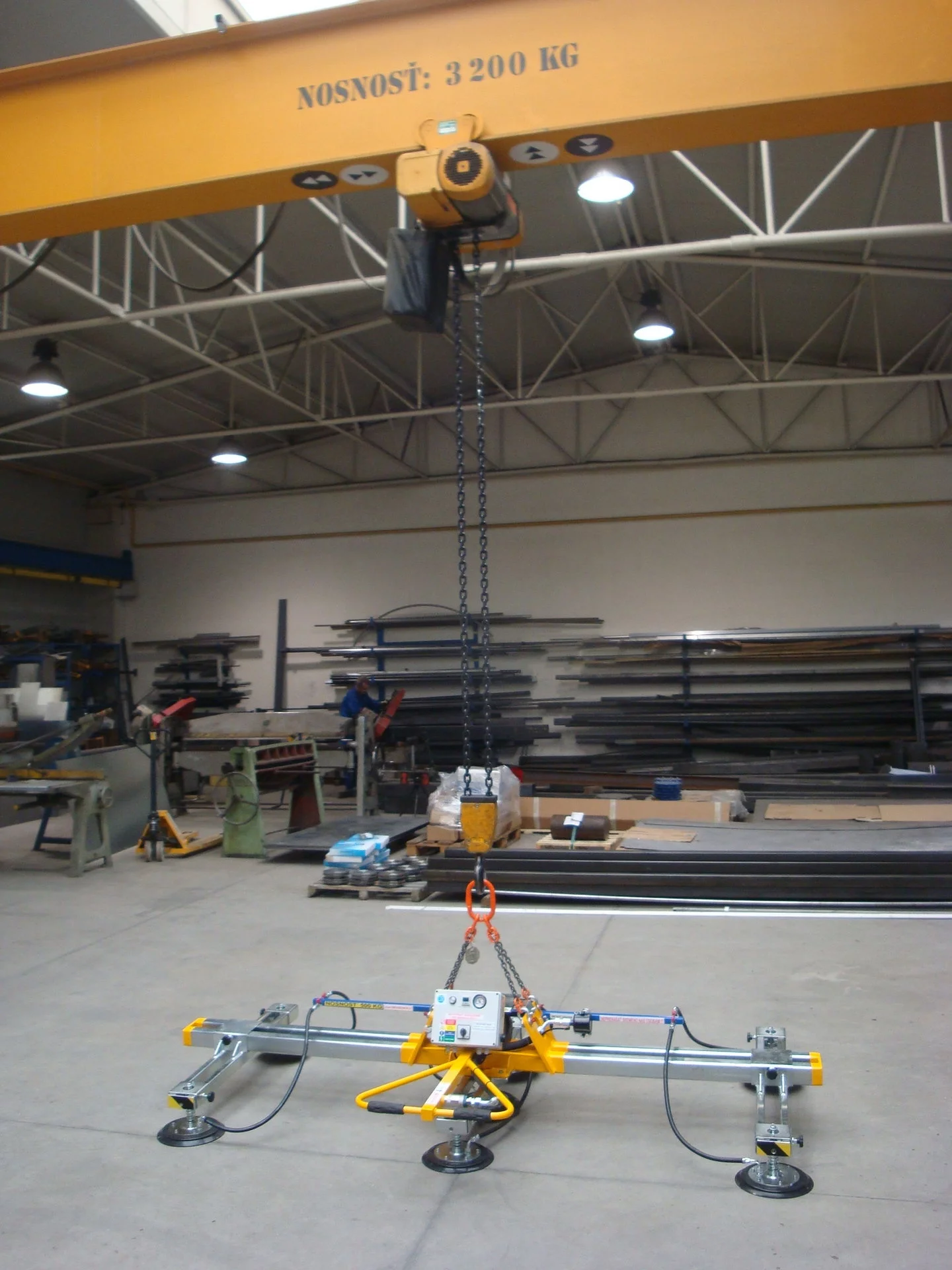

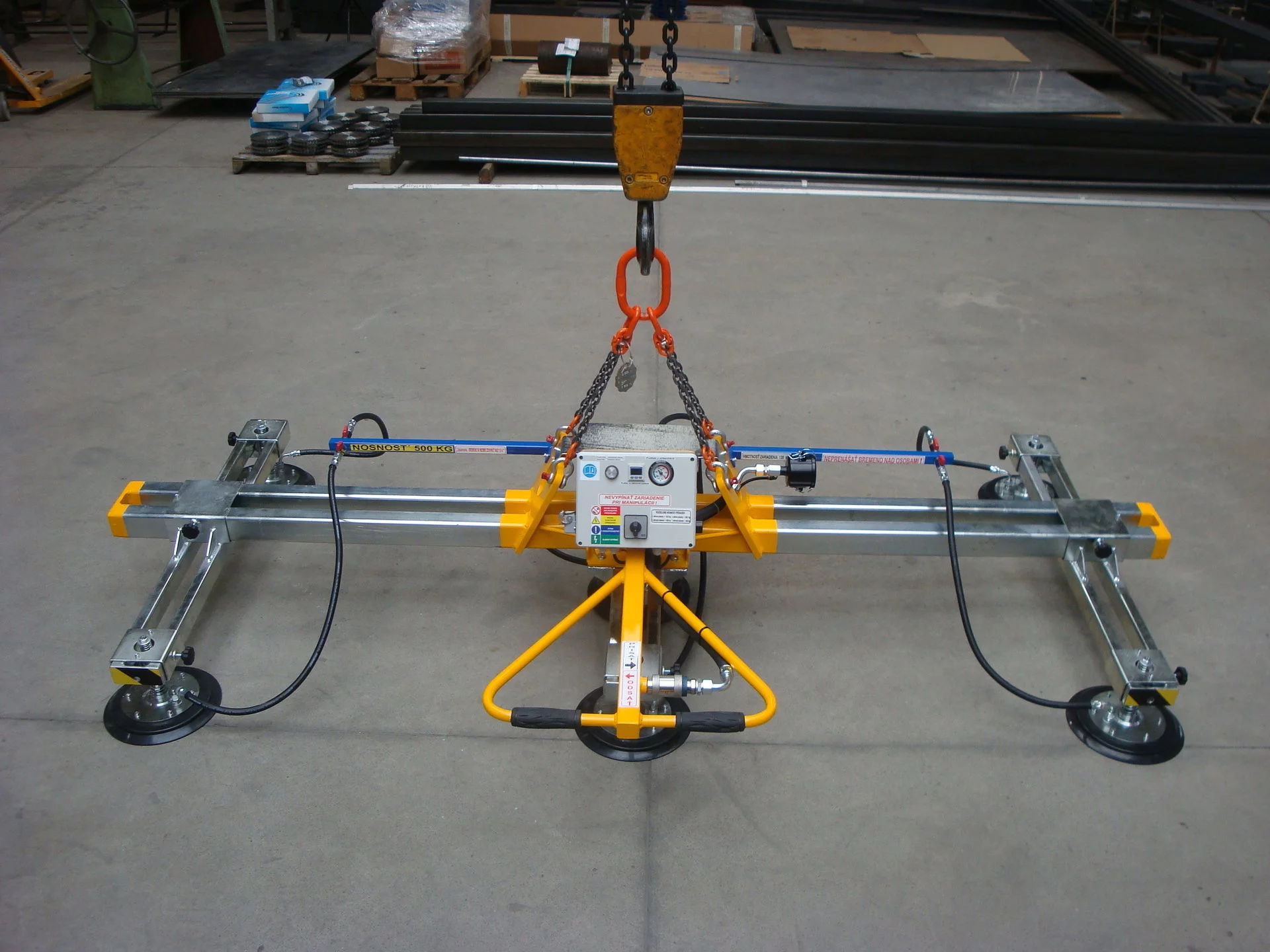

Photo gallery

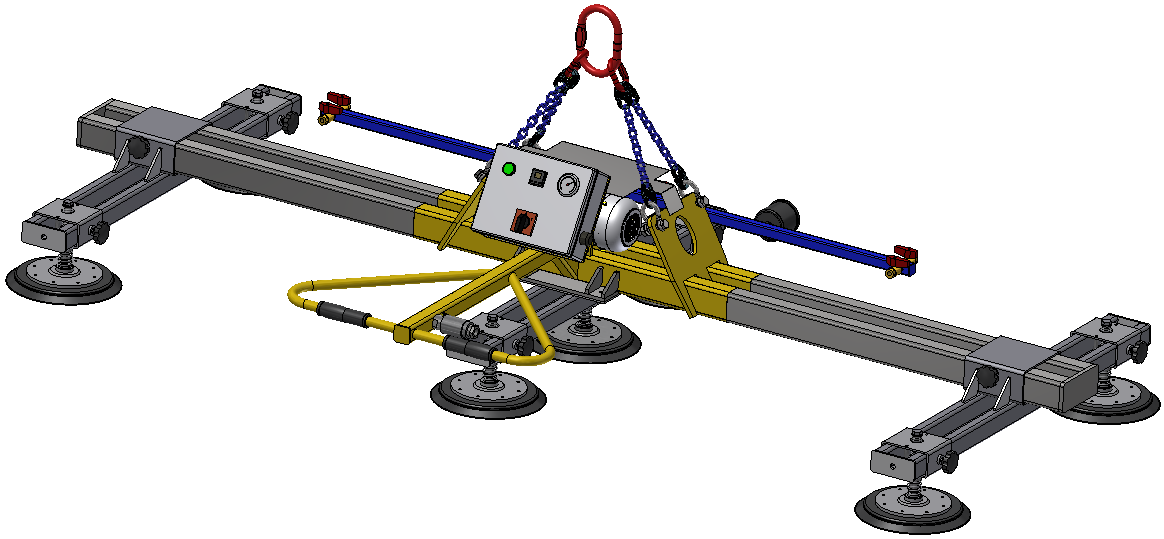

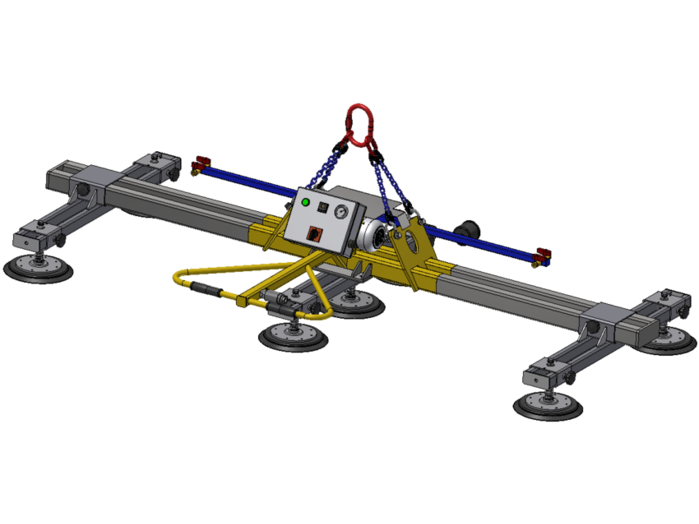

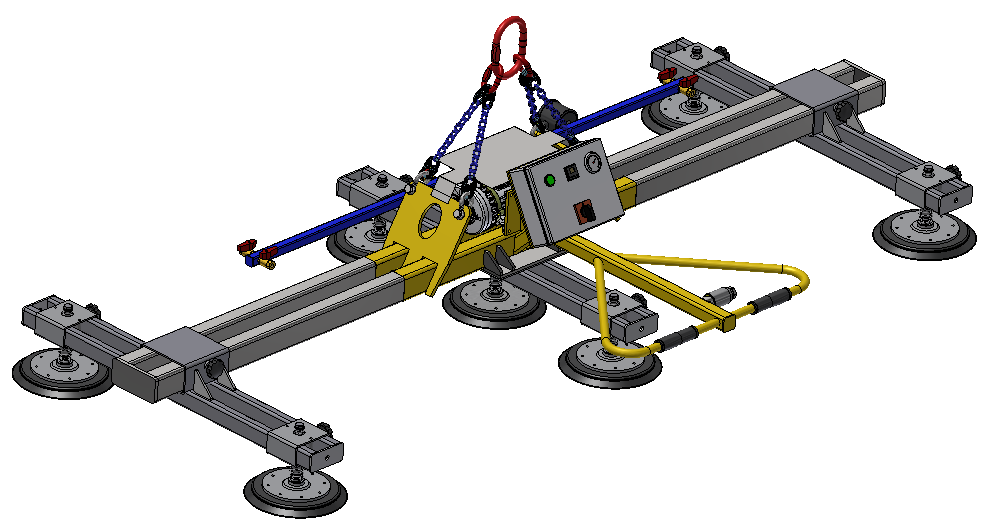

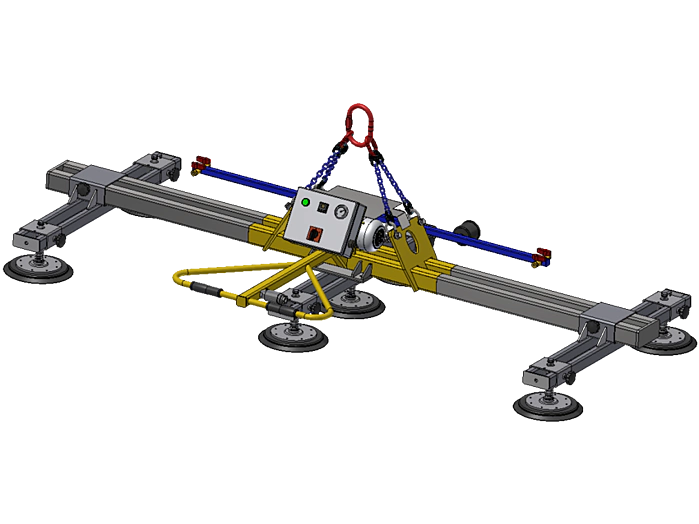

3D models + drawings

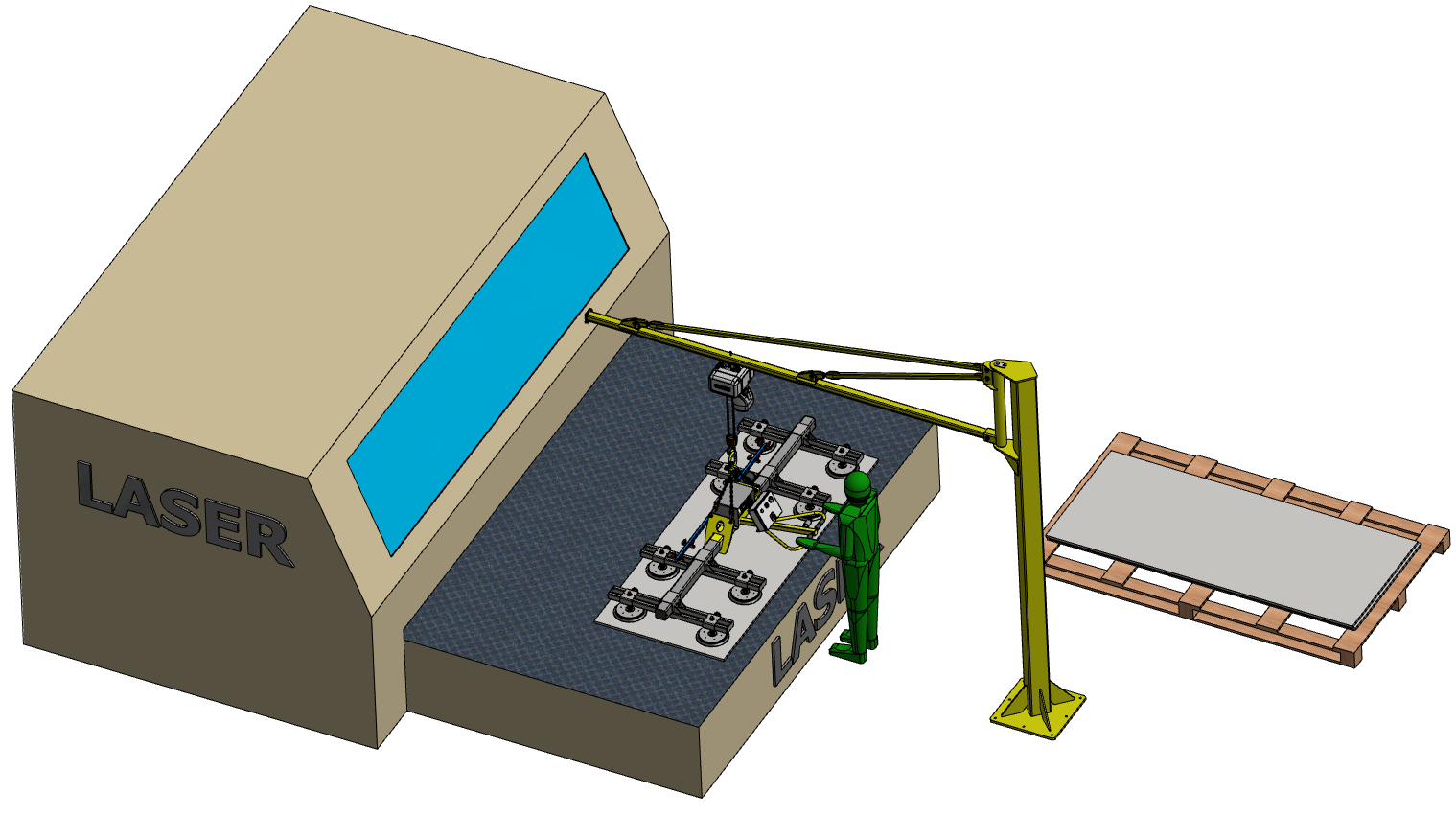

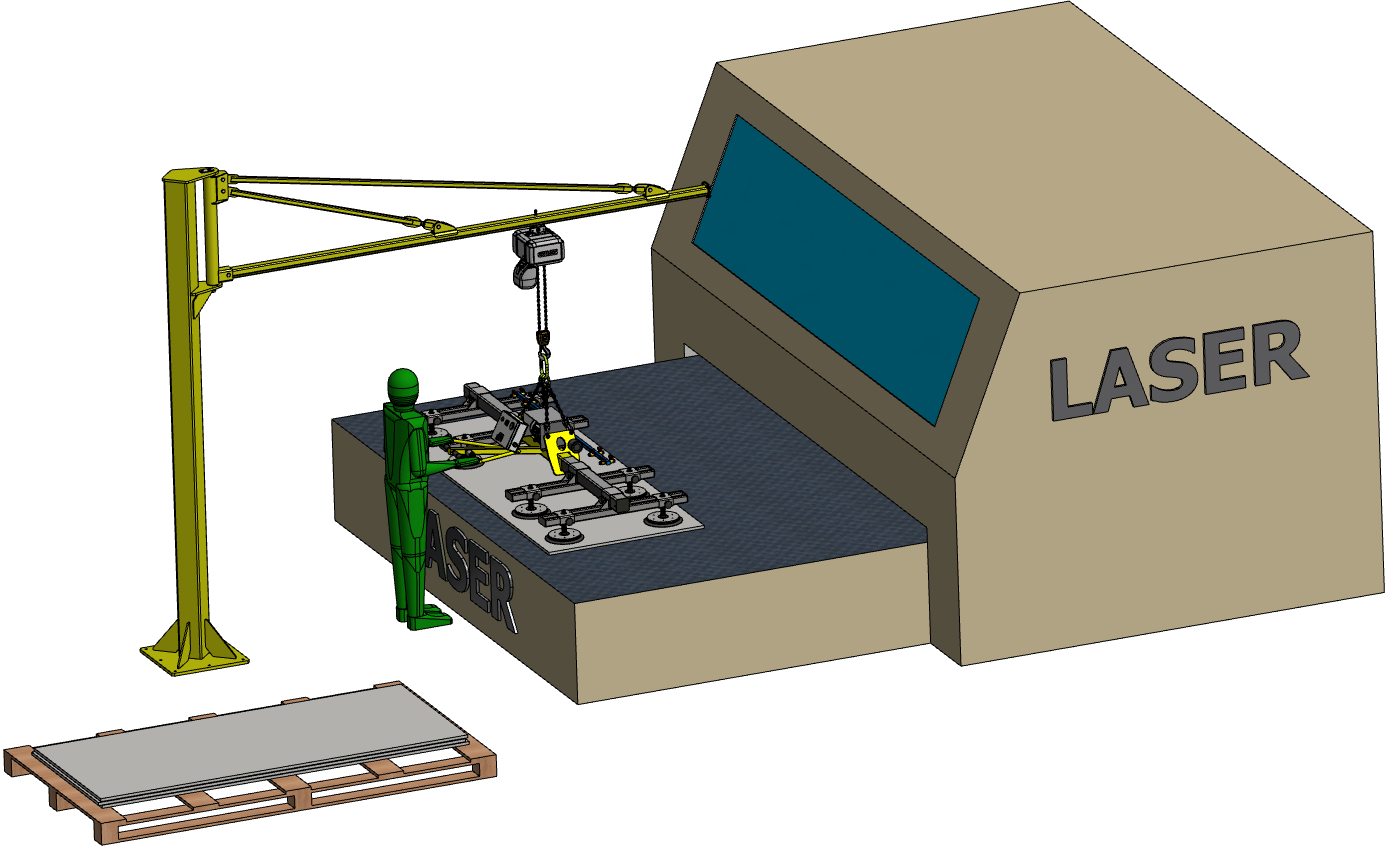

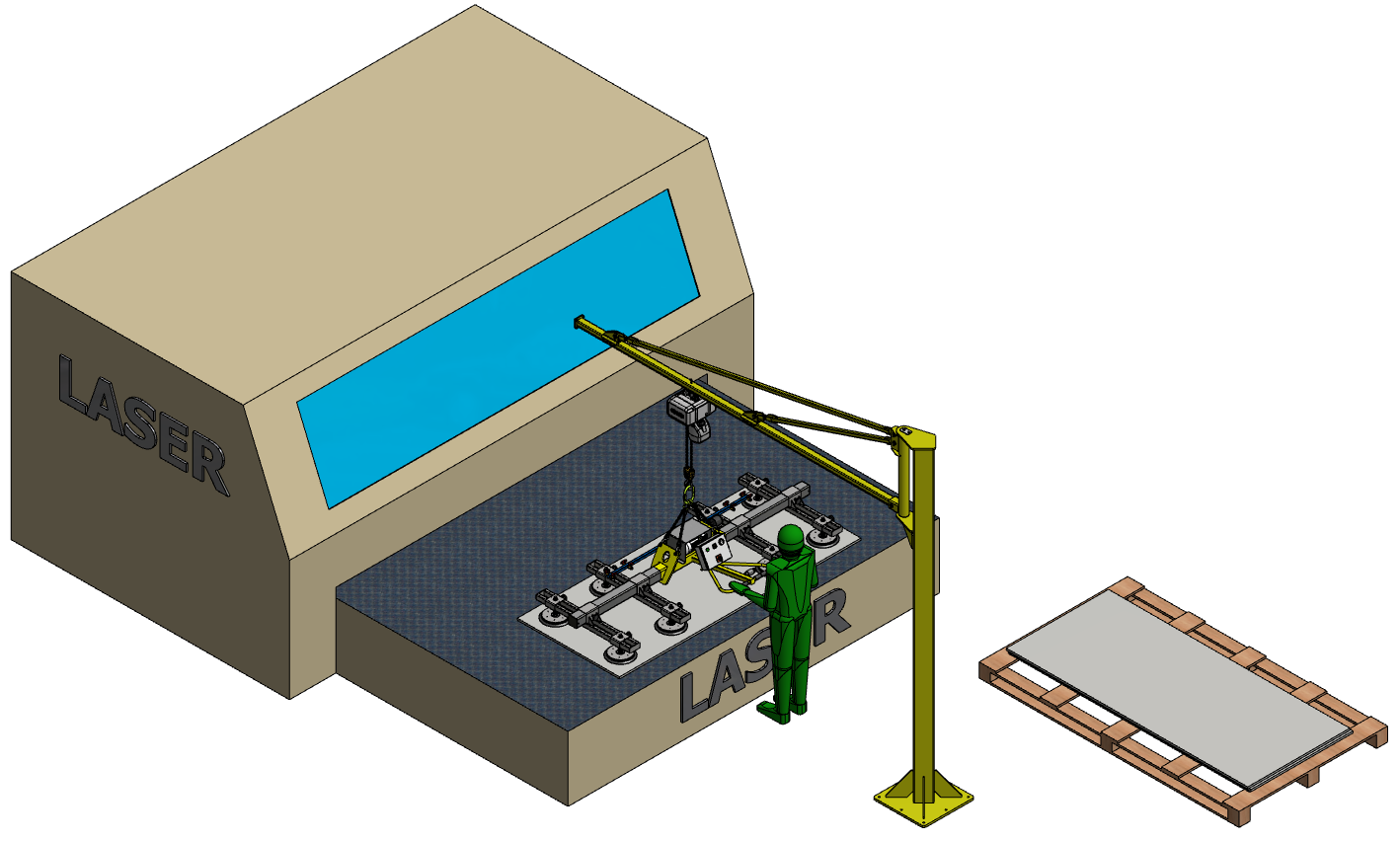

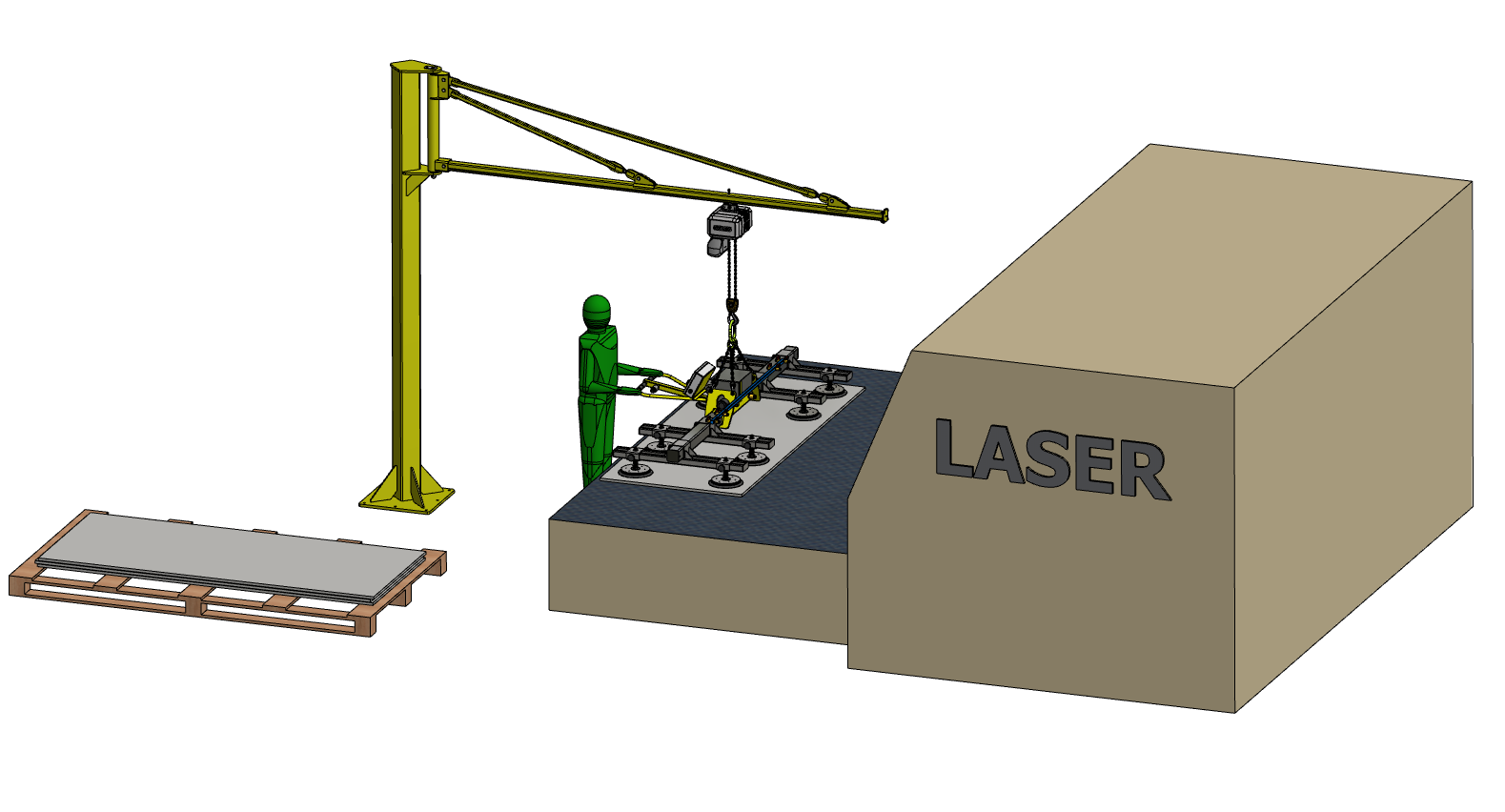

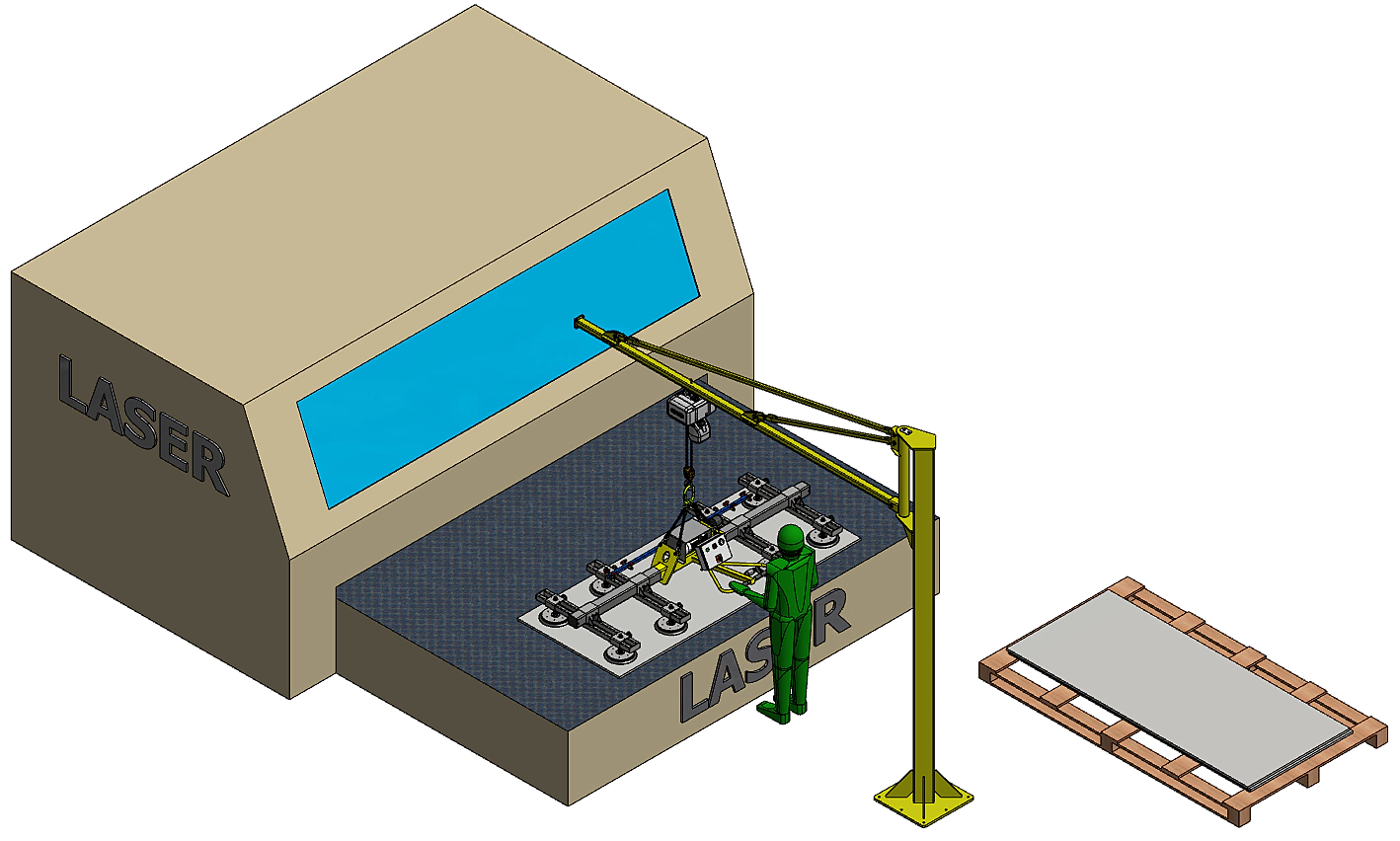

Example - handling of steel sheets for a cutting center - laser
