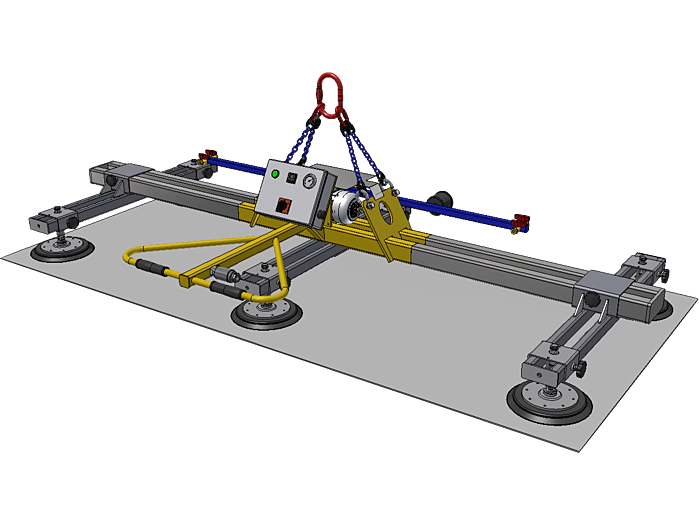

VACUUM MANIPULATOR - VM 250/6-2,5x1
- main supporting steel structure with a four-pointsuspension
- cross beams manually adjustable in the "x" axis
- six suction cups 255 mm in diameter
- suction cups manually adjustable in “y¨ axis
- vacuum pump – design (400V three phase system, or 230Vsingle phase system)
- vacuum tank ensures safe lifting of the load even incase of an unexpected power failure of the air pump
- acoustic and visual signalisation of insufficient vacuum in suction cups
- GRIP/ RELEASE the load through a manual valve conveniently located on the VM control handle
- double-acting control to suck off the loadmechanically (electromagnetically using a spiral-button control - for asurcharge)
- spiral cable for connecting the handler up to 3 m
- quick-clamping system of electrical connection via a connector
Application:

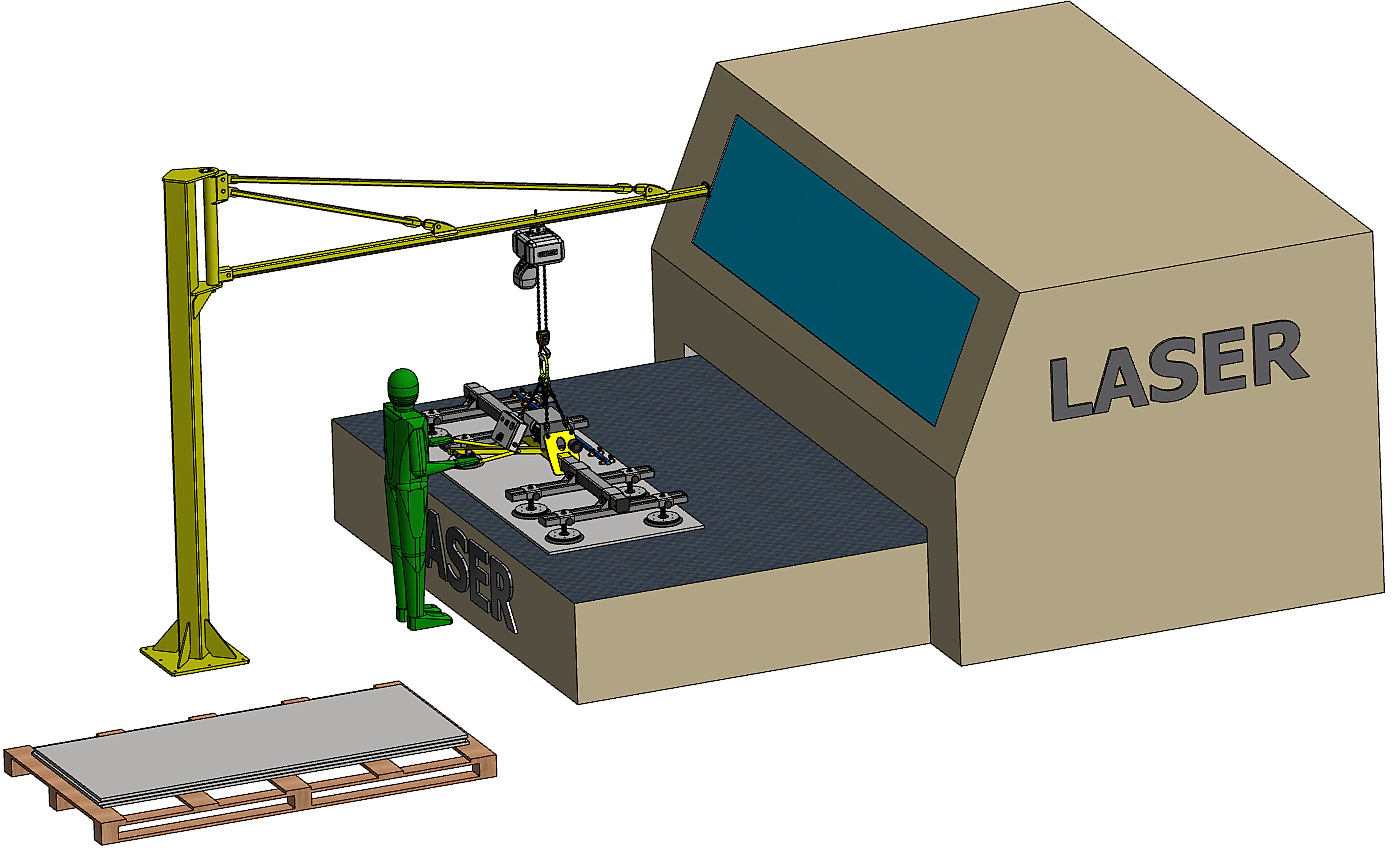

The vacuum manipulator VM 250/6-2,5x1 is a handy little gripping device that allows you to grip and handle small, medium or large-sized flat loads up to 250 kg in a horizontal position within the work area, which is given by the range of the lifting equipment (crane or any other lifting device) the vacuum manipulator will be suspended on.
Potential types of loads to be handled:
✓ Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
✓ Glass plates and boards
✓ Plastic plates and boards
✓ Stone with grinded surface
✓ Wooden plates and boards covered with air-tight finish
Benefits:
- Simple – very convenient anddedicated device that is easy to operate
- Variable – transverse beams and suction cups on the beam can beeasily adjusted by hand
- Reliable – high reliability and minimalmaintenance are ensured
- Safe – safety guaranteed in every situation
Basic technical information:
| Maximum load capacity (WLL) | 250 kg (with negative pressure –0.6 bar (-60 kPa)) |
|---|---|
| Designed for manipulation | in horizontal position, to be lifted on a lifting device |
| Weight | 110 kg |
| Max. dimensions of load | 3000x1500 mm |
| Min. dimensions of load | 2000x1000 mm |
| Power supply | a) 3+PE (PEN) 400VAC/50Hz/15VAC |
| b) 1+N+PE 230VAC/50Hz/24VDC |
Information table:
| Number of suction cups / diameter (mm) | LOAD CAPACITY (kg) | WEIGHT (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|
| 6/255 | 250 | 110 | 2520 | 1010 | 1308 | 255 | 780 |
| F min (mm) | F max (mm) | G min (mm) | G max (mm) | ||||
| 1100 | 2590 | 600 | 1155 |
