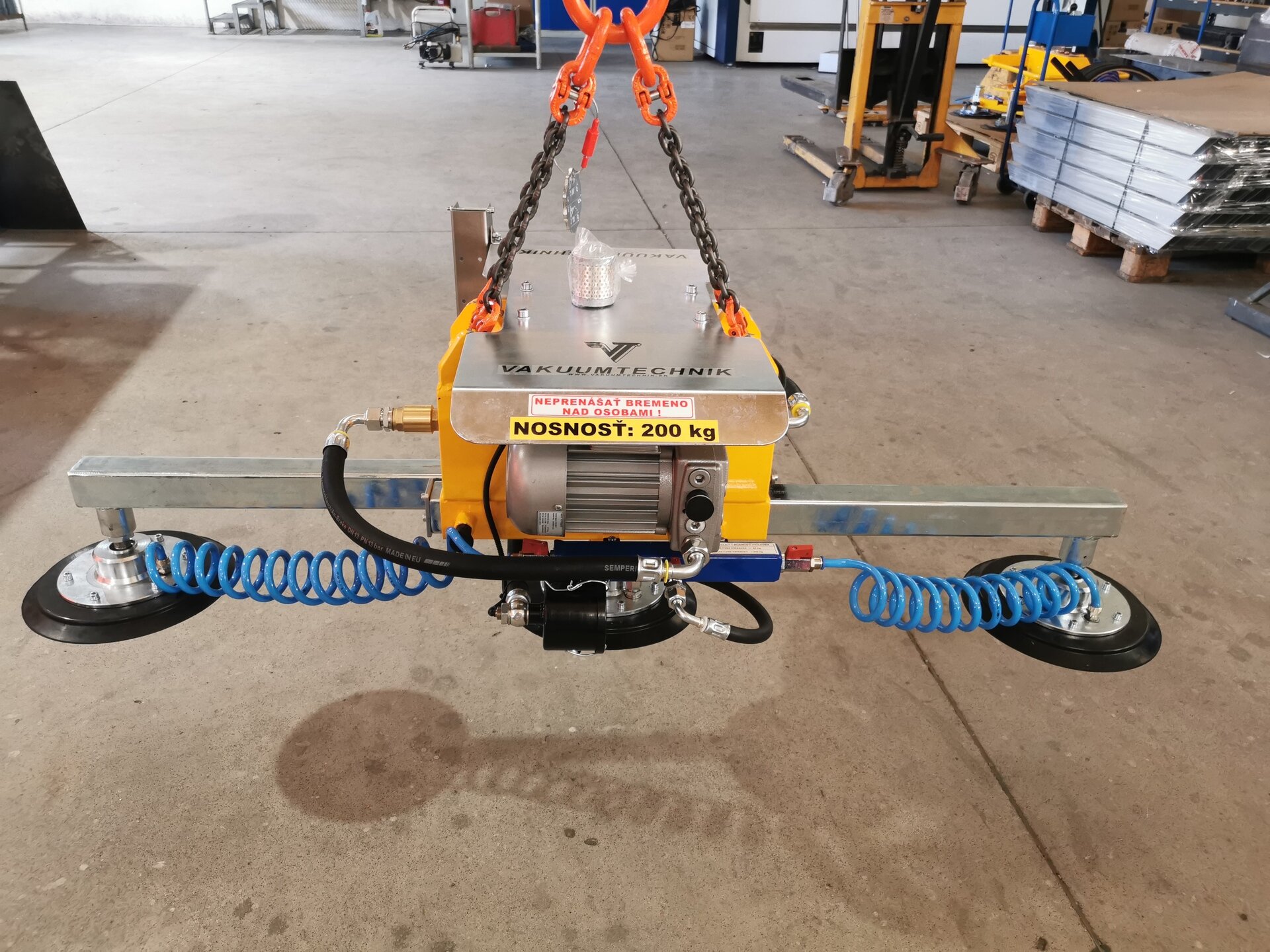

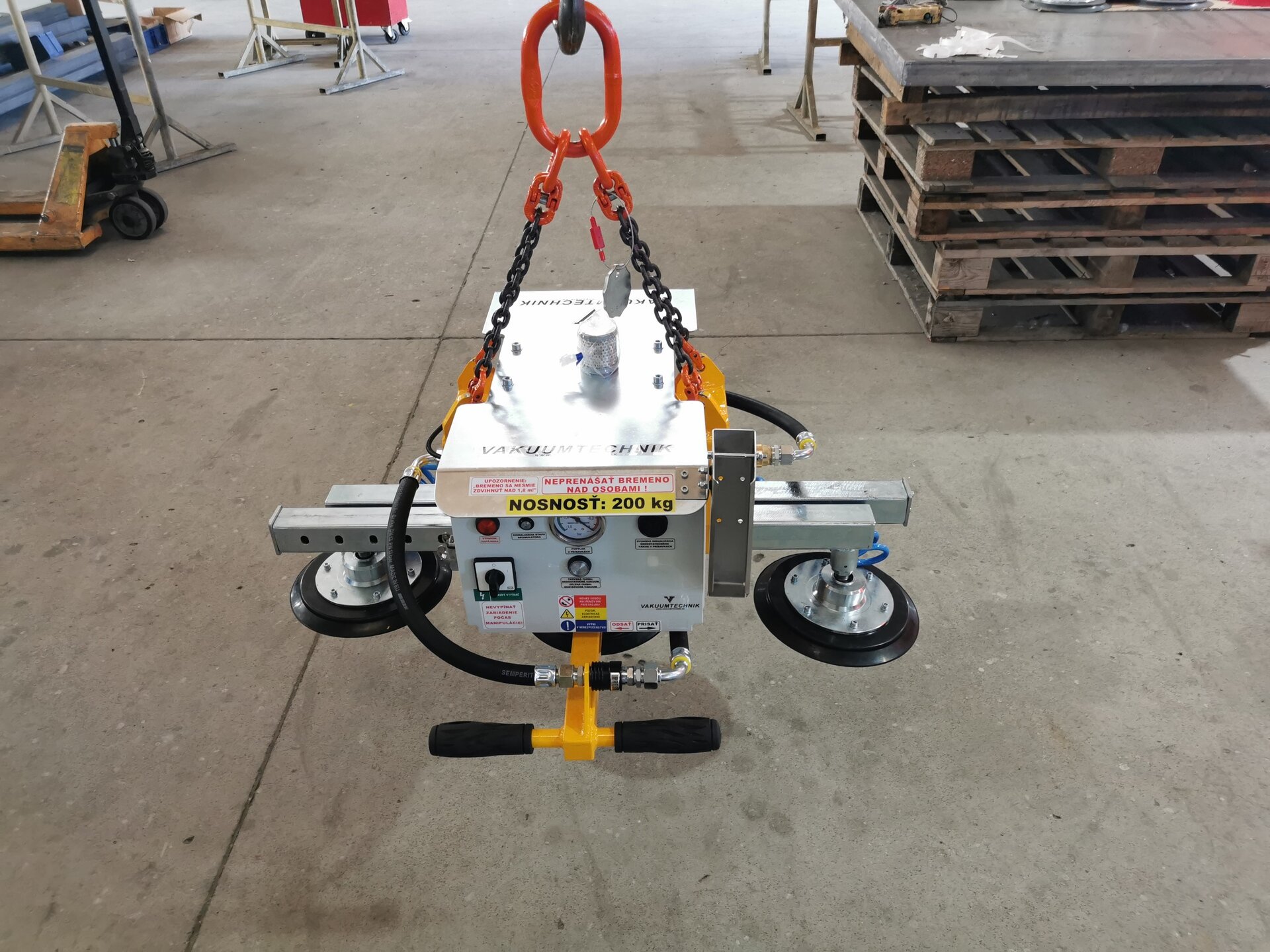

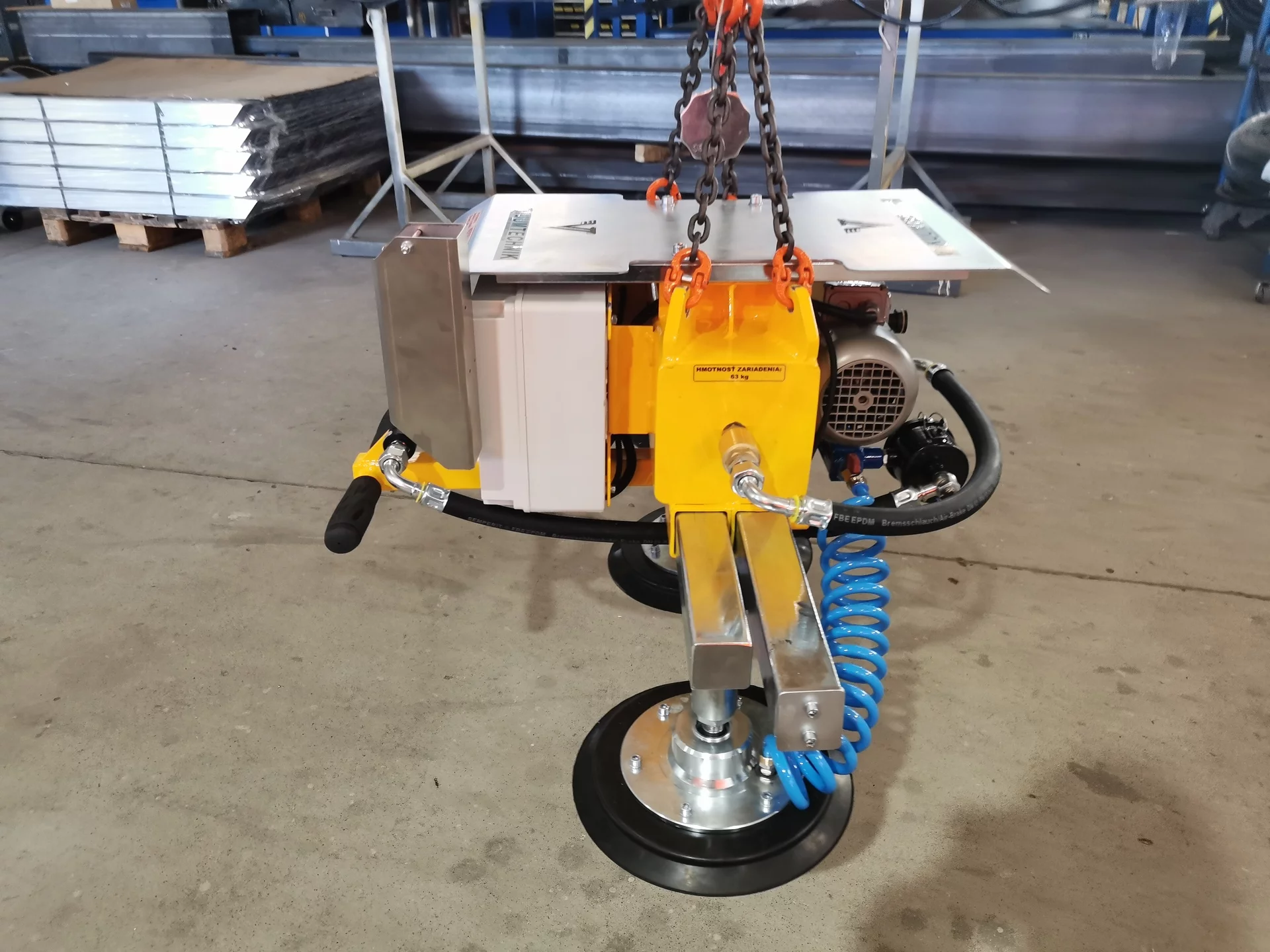

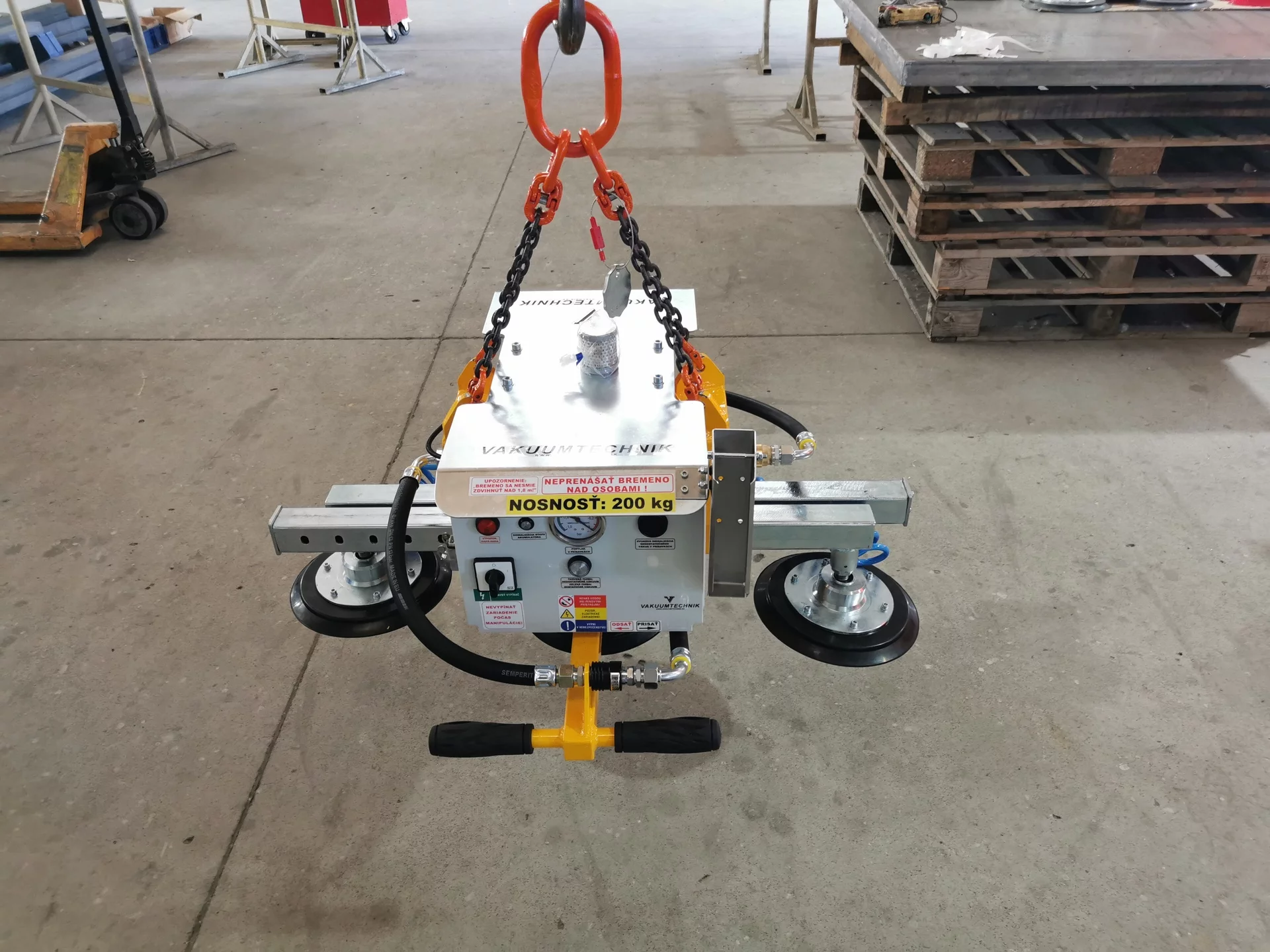

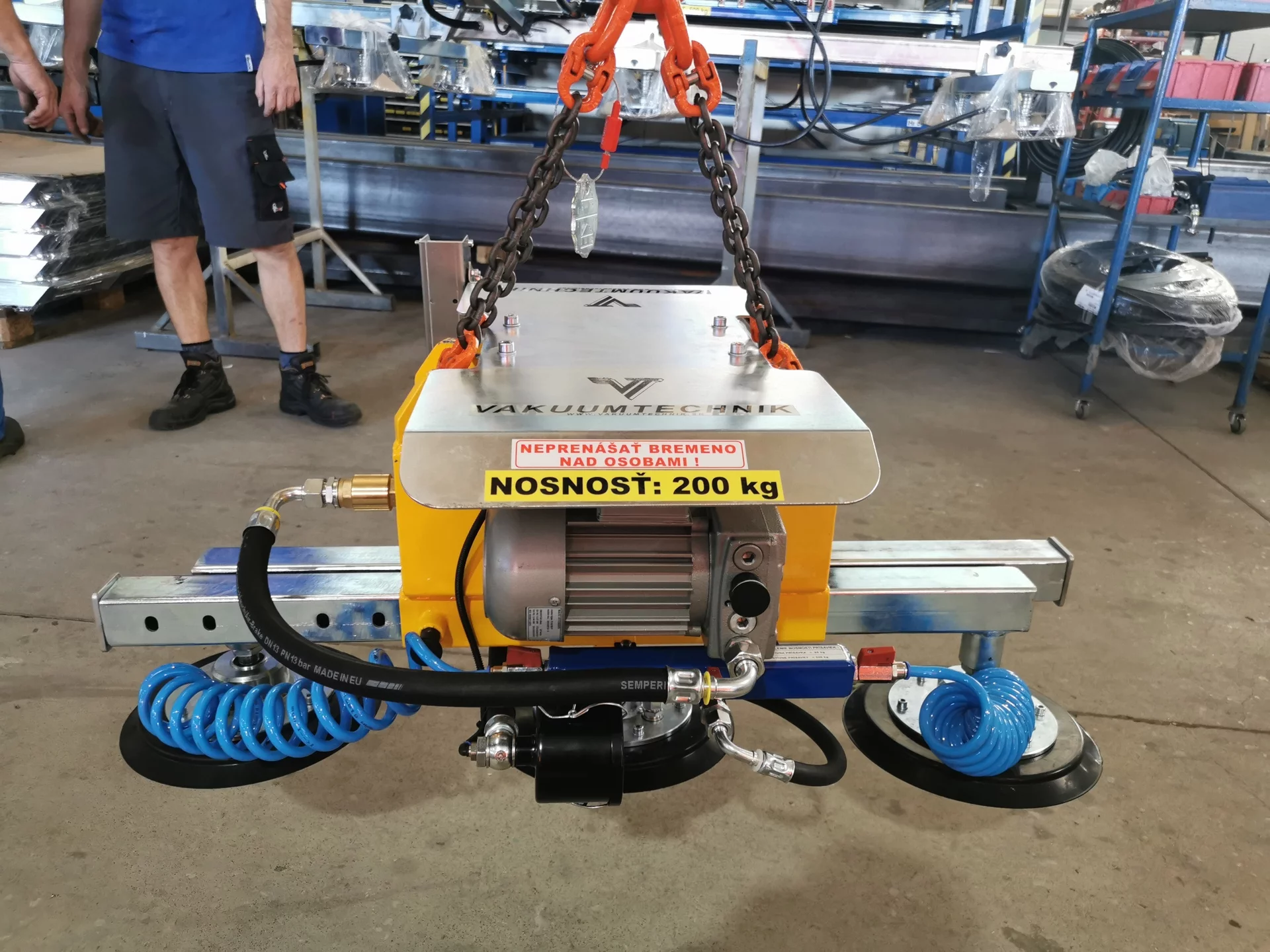

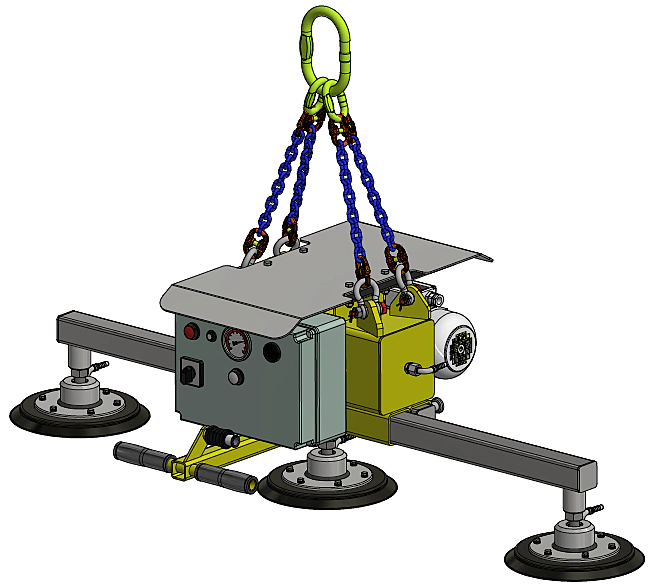

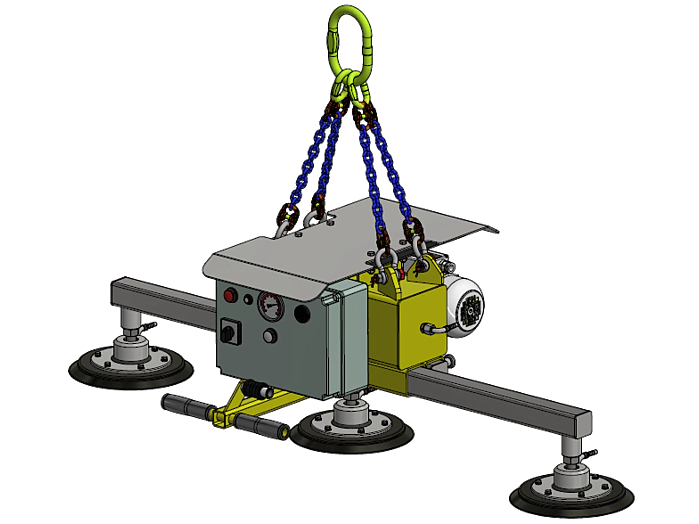

VACUUM MANIPULATOR - VM 200/3-1500
- Main supporting steel structure with a four-pointsuspension
- Three suction cups 255 mm in diameter
- Manually telescopically adjustable two suction cups in the "x" axis by 255 mm
- Vacuum pump – design (400V three phase system, or 230Vsingle phase system)
- Vacuum tank ensures safe lifting of the load even incase of an unexpected power failure of the air pump
- Acoustic and visual signalisation of insufficientvacuum in suction cups

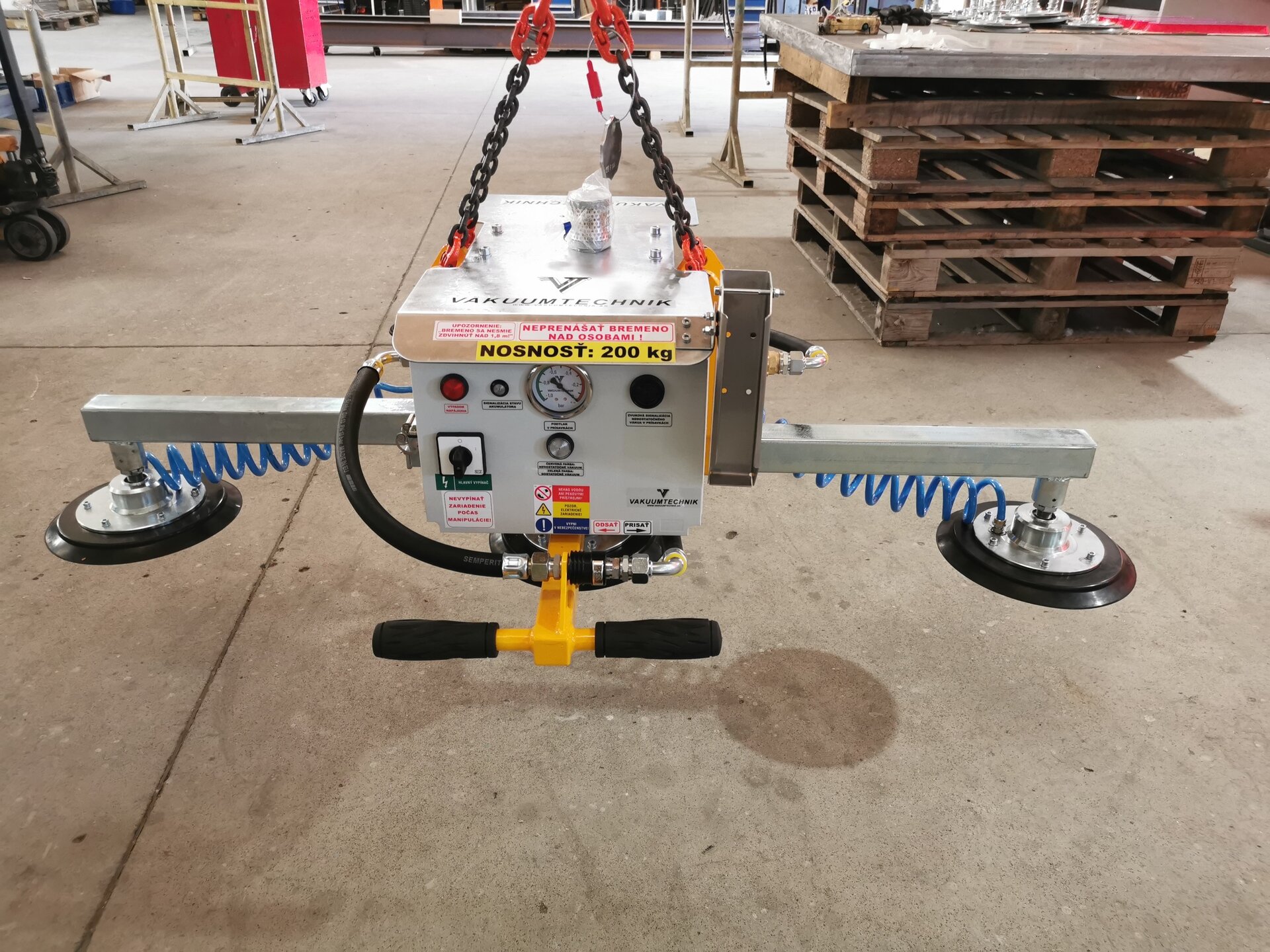

- GRIP/ RELEASE the load through a manual valve conveniently located on the VM control handle
- Double-acting control to suck off the loadmechanically (electromagnetically using a spiral-button control - for asurcharge)
- Spiral cable for connecting the handler up to 3 m
- Quick-clamping system of electrical connection via a connector
Application:

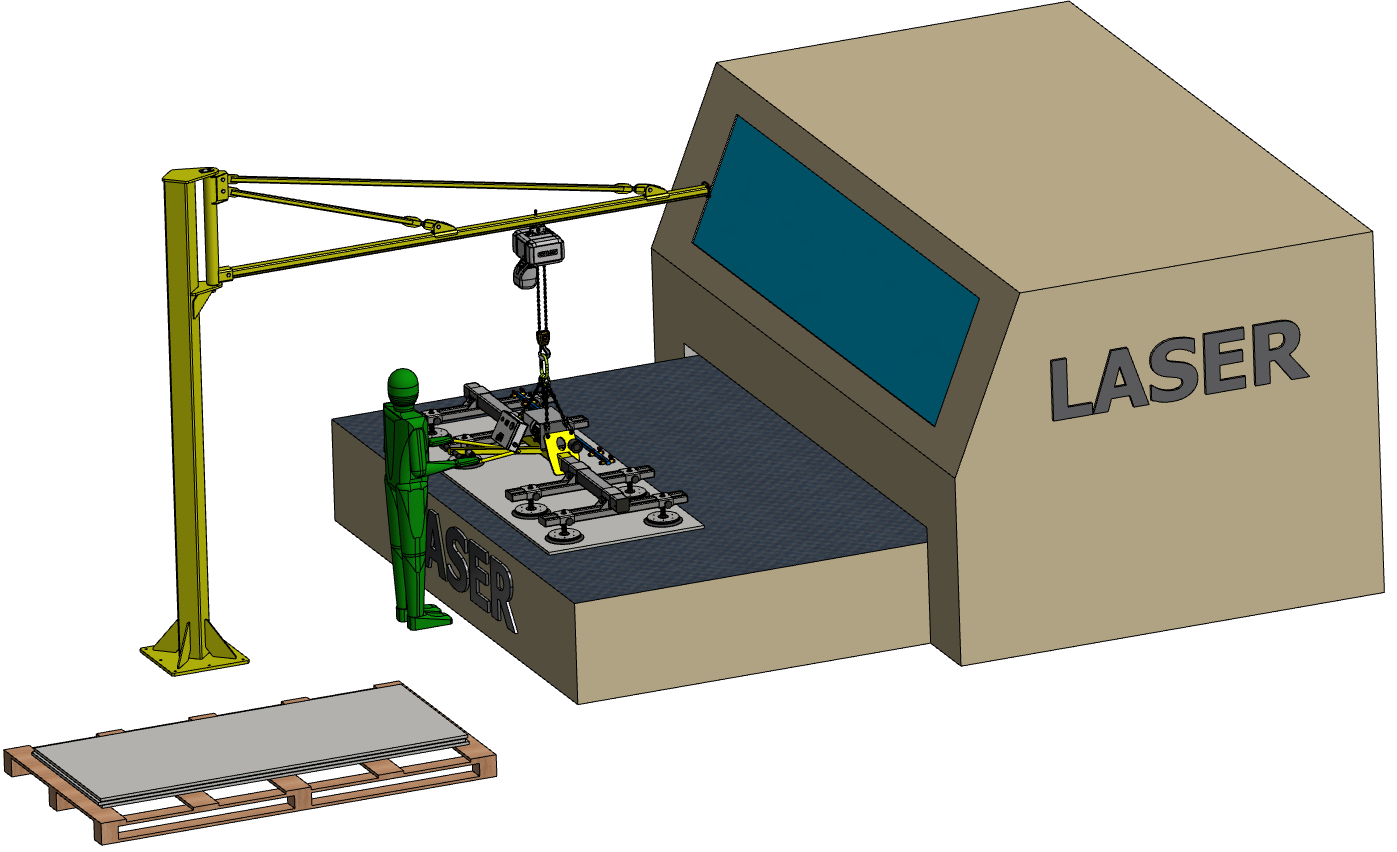

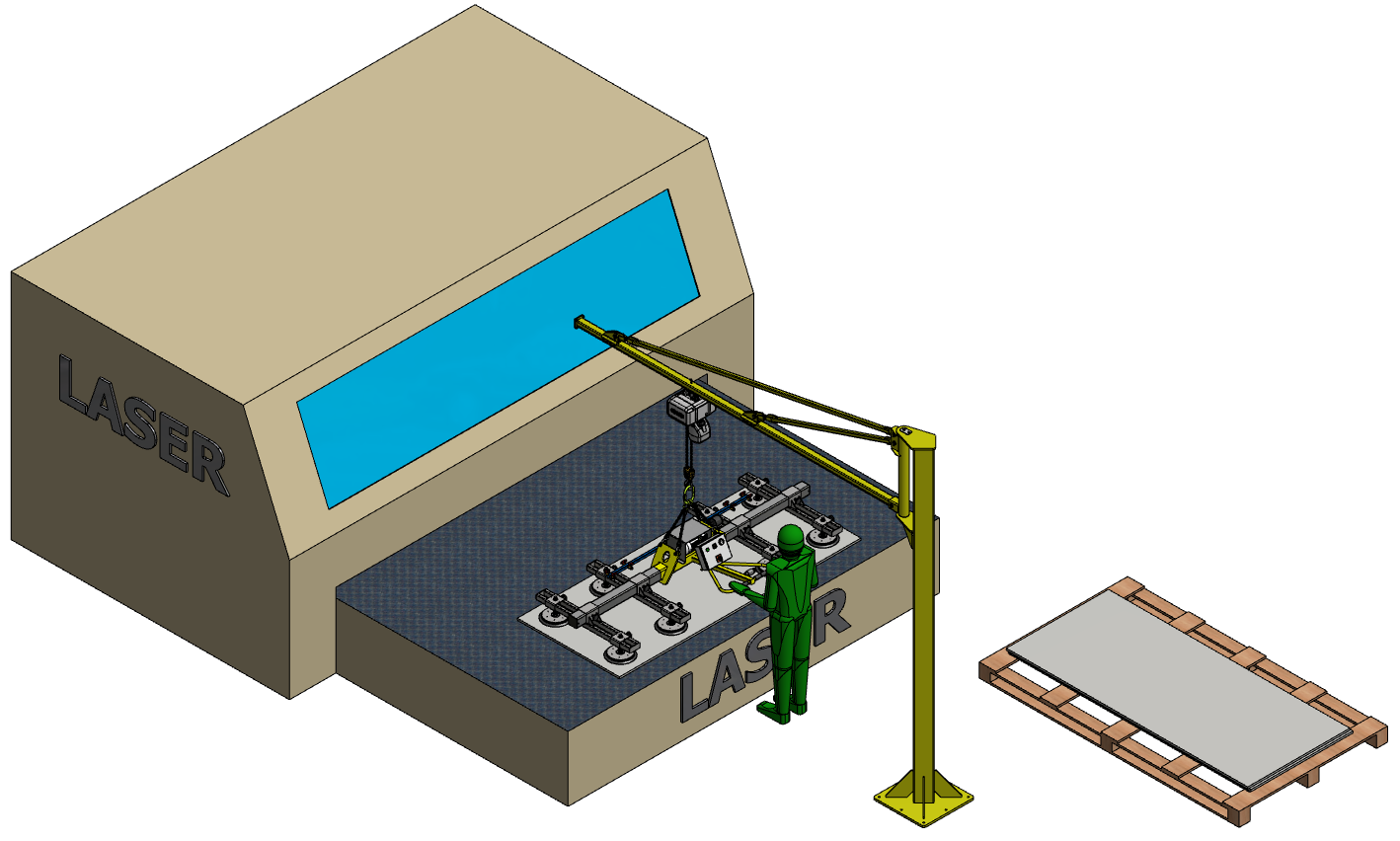

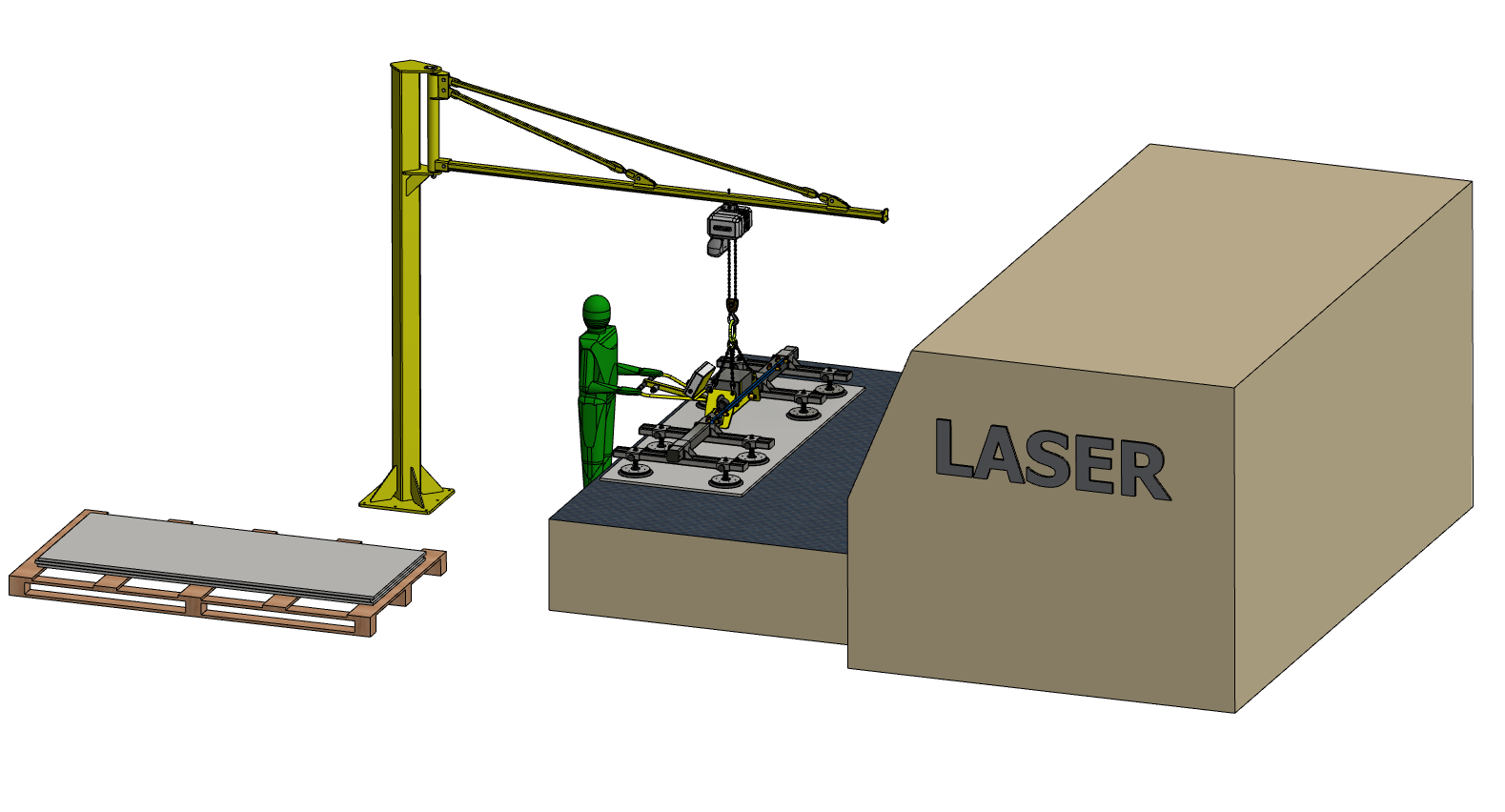

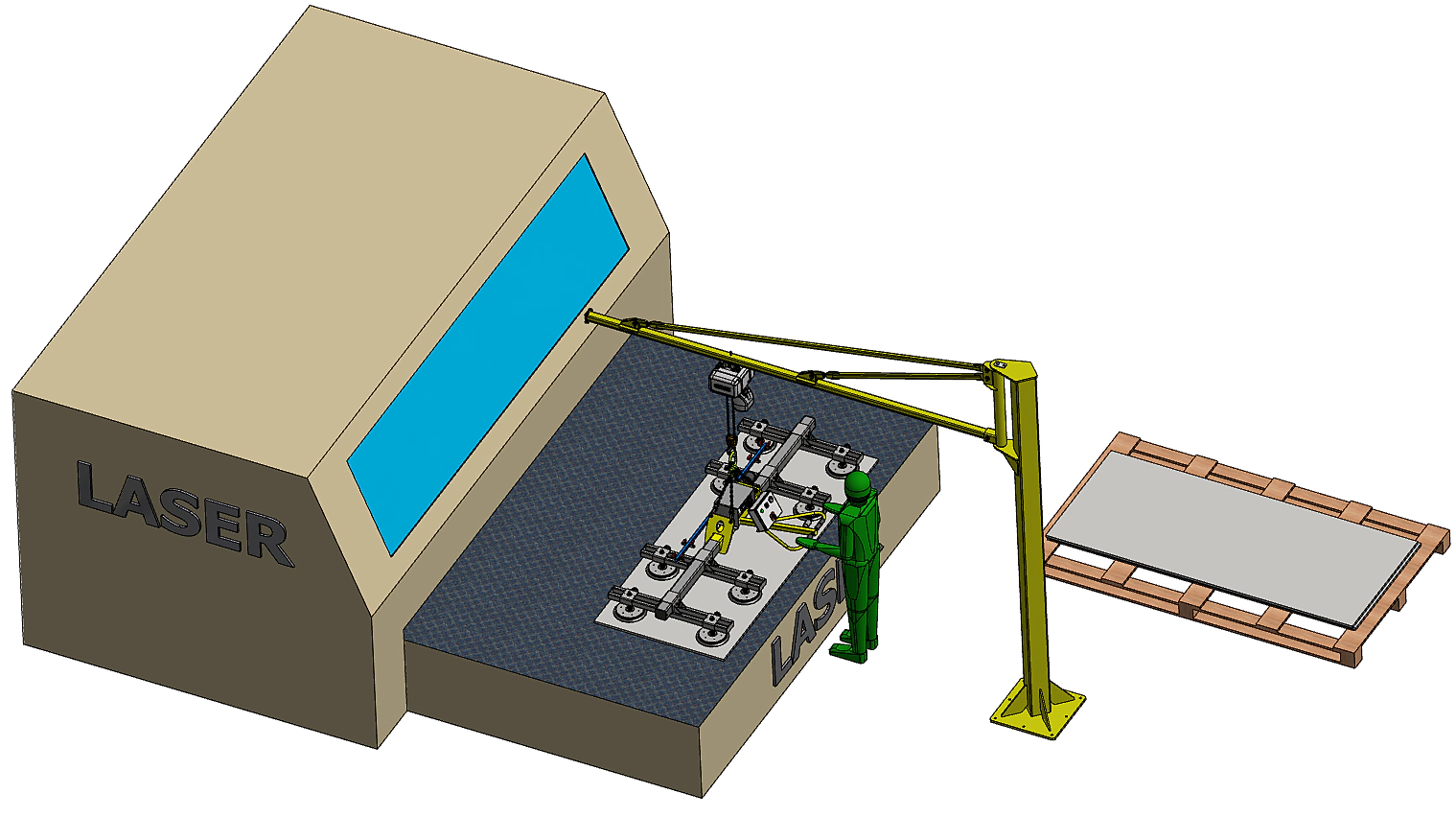

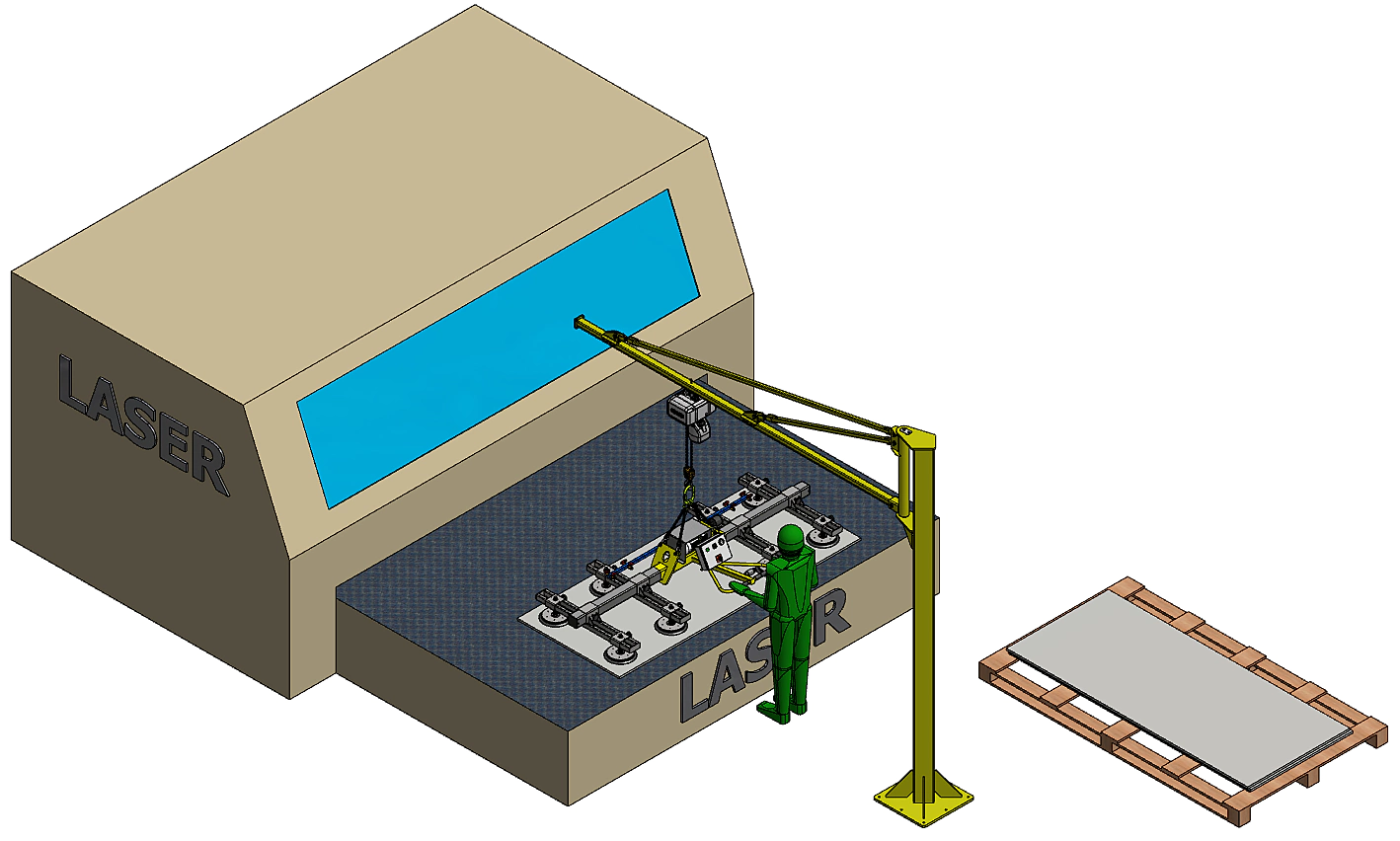

The vacuum manipulator VM 200/3-1500 js a handy little gripping device that allows you to grip and handle narrow sheets, medium sized flat loads up to 200 kg in a horizontal position within the work area, which is given by therange of the lifting equipment (crane or any other lifting device) the vacuum manipulator will be suspended on.
Potential types of loads to be handled:
✓ steel sheets, boards and non-ferrous metals (includingnon-magnetic)
✓ glass plates and boards
✓ plastic plates and boards
✓ stone with grinded surface
✓ wooden plates and boards covered with air-tight finish
Benefits:
- Lightweight - easy to operate equipment, suitable for very thin materials such as sheets
- Variable – transverse beams and suction cups on the beam can beeasily adjusted by hand
- Reliable - high reliability and minimalmaintenance are ensured
- Safe – safety guaranteed in every situation
Basic technical information:
| Maximum load capacity (WLL) | 200 kg (with negative pressure –0.6 bar (-60 kPa)) |
|---|---|
| Designed for manipulation | in horizontal position, to be lifted on a lifting device |
| Weight | 63 kg |
| Max. dimensions of load | 2500x1250 mm |
| Min. load dimensions | 1000x300 mm |
| Power supply | a) 3 PE (PEN) 400VAC/50Hz/15VAC |
| b) 1 N PE 230VAC/50Hz/24VDC |
Information table:

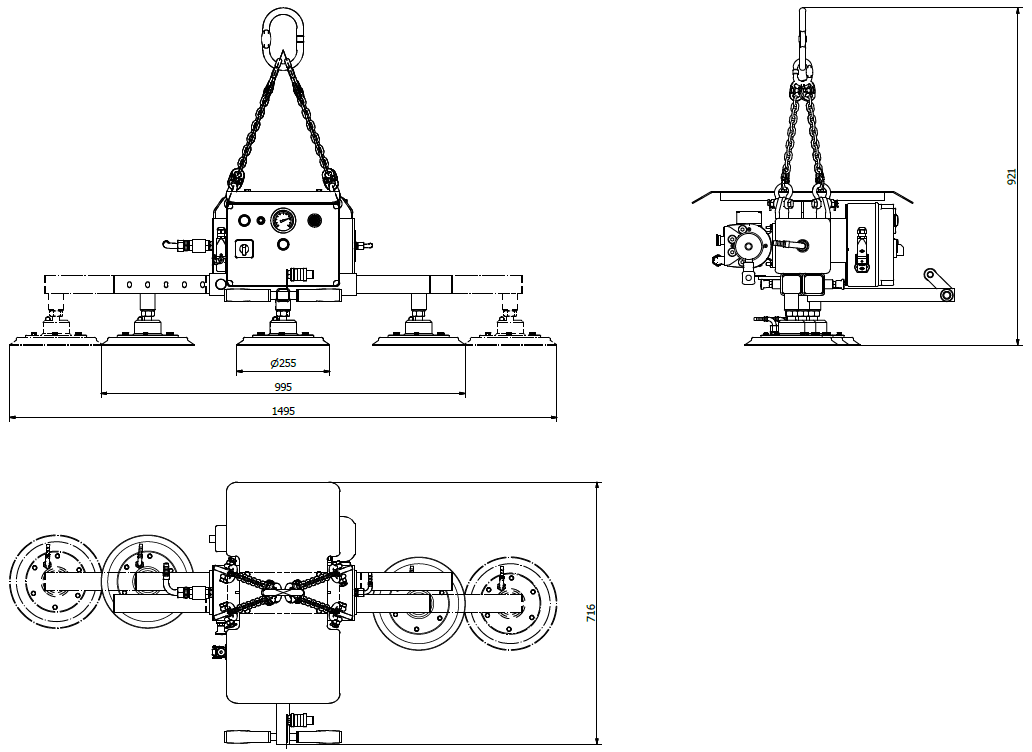

| Number of suction cups / diameter (mm) | LOAD CAPACITY (kg) | WEIGHT (kg) | Lenght (mm) | Depth (mm) | Height (mm) |
|---|---|---|---|---|---|
| 3/255 | 200 | 63 | 995 (1495) | 716 | 921 |
