VACUUM MANIPULATOR - VM 14200/3 - 4000

Basic description:

  • main supporting steel structure with a two-pointsuspension
  • - two end suction cups with dimensions 1400x450 mm
    - one central suction cup with dimensions 2900x1400 mm
  • vacuum pump – design (400V three phase system)
  • vacuum tank ensures safe lifting of the load even incase of an unexpected power failure of the air pump
  • acoustic and visual signalisation of insufficient vacuum in suction cups
  • GRIP/ RELEASE the load through a manual valve conveniently located on the VM control handle
  • double-acting control to suck off the loadmechanically (electromagnetically using a spiral-button control - for asurcharge)
  • spiral cable for connecting the handler up to 3 m
  • quick-clamping system of electrical connection via a connector

Application:

The vacuum manipulator VM 14200/3 - 4000 is a handy large gripping device that allows you to grip and handle  medium or large-sized flat loads up to 14200 kg in a horizontal position within the work area, which is given by the range of the lifting equipment (crane or any other lifting device) the vacuum manipulator will be suspended on.

Potential types of loads to be handled:

✓ aluminum blocks
✓ steel formats of sheets, plates and non-ferrous metals (also non-magnetic)
✓ stone with sanded surface

Benefits:

  • Simple – very convenient anddedicated device that is easy to operate
  • Variable – transverse beams and suction cups on the beam can beeasily adjusted by hand
  • Reliable – high reliability and minimalmaintenance are ensured
  • Safe – safety guaranteed in every situation

Basic technical information:

Maximum load capacity14200 kg (with negative pressure –0.6 bar (-60 kPa))
Designed for manipulationin horizontal position, to be lifted on a lifting device
Weight1800 kg
Max. dimensions of load6000x2000 mm
Min. dimensions of load2900x1500 mm
Power supply3+PE (PEN) 400VAC/50Hz/15VAC

Information table:

Number of suction cups / diameter (mm)LOAD CAPACITY (kg)WEIGHT (kg)Overall width (mm)Overall depth (mm)Overall height (mm)Suction cup diameter (mm)
1/2900x14001420018003900207210351/2900x1400
2/1400x450 2/1400x450

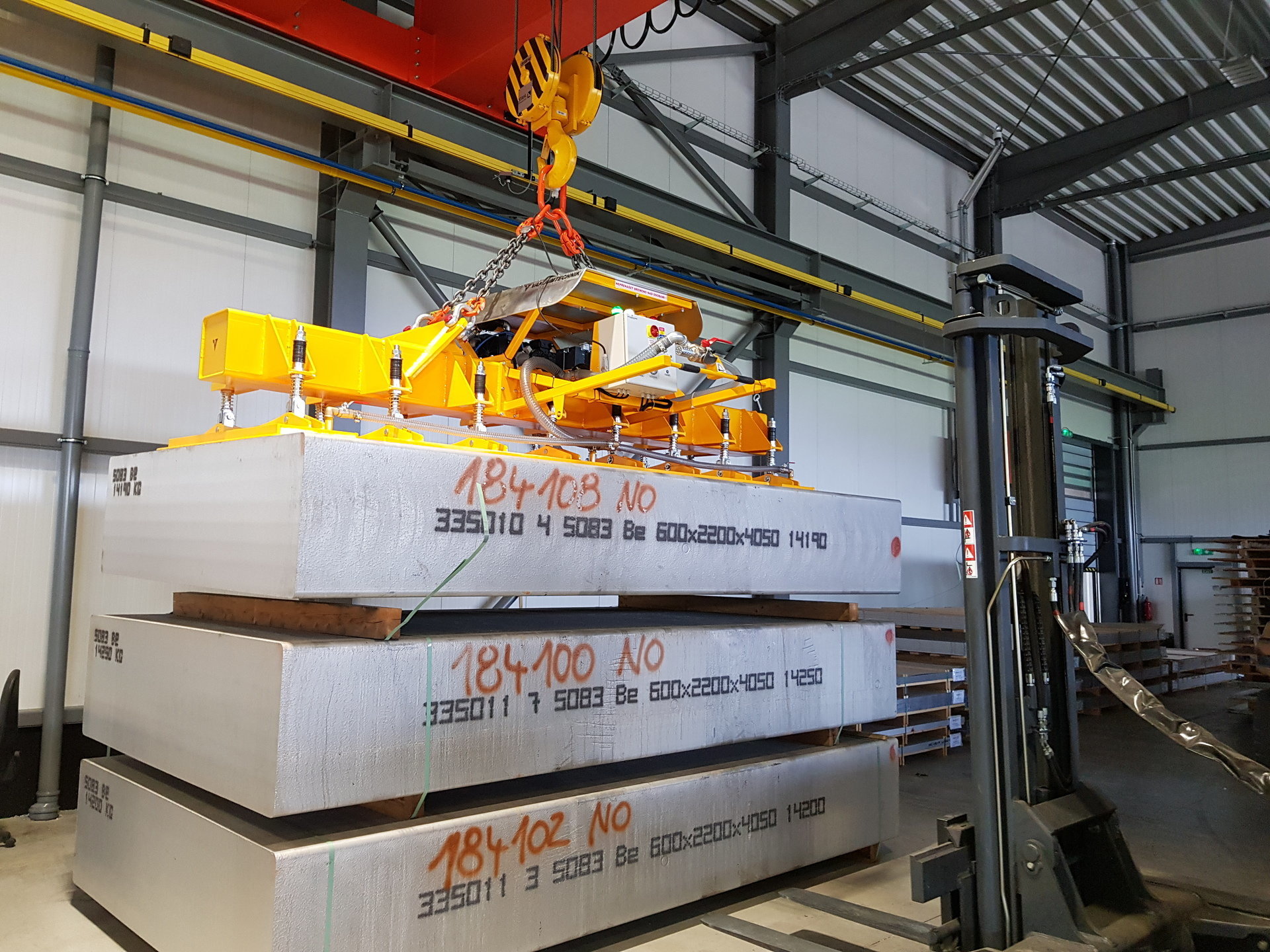

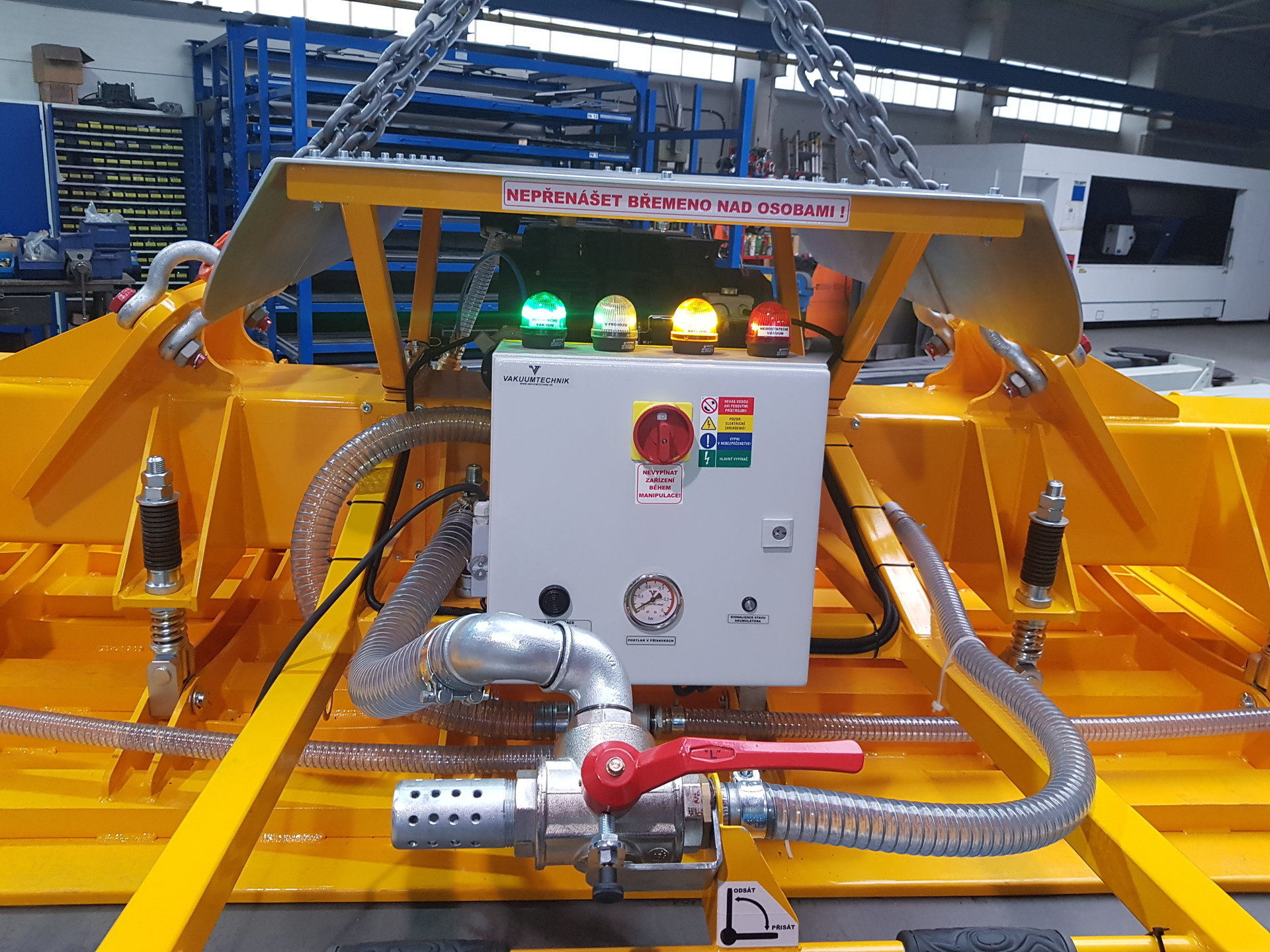

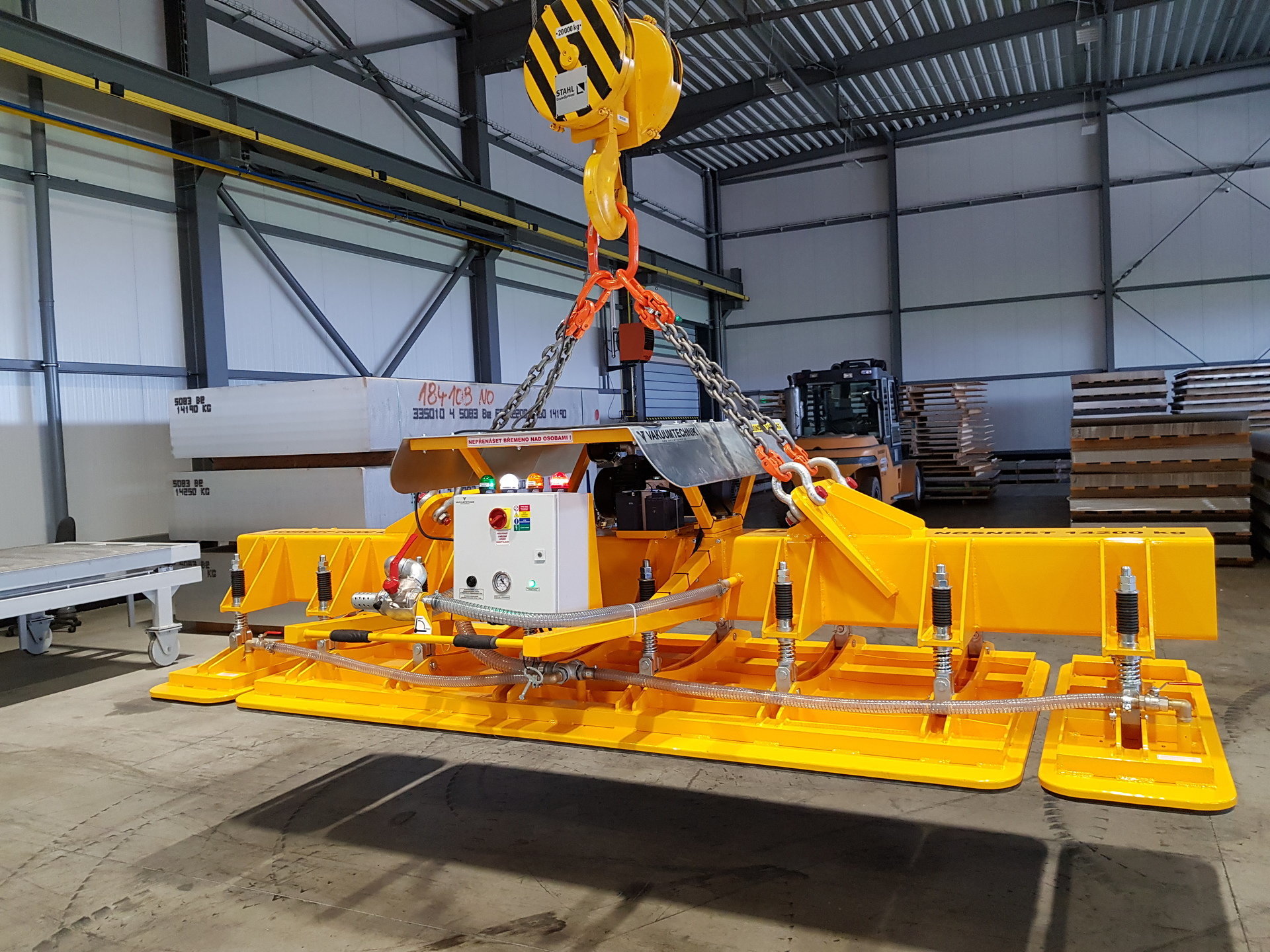

Photo gallery

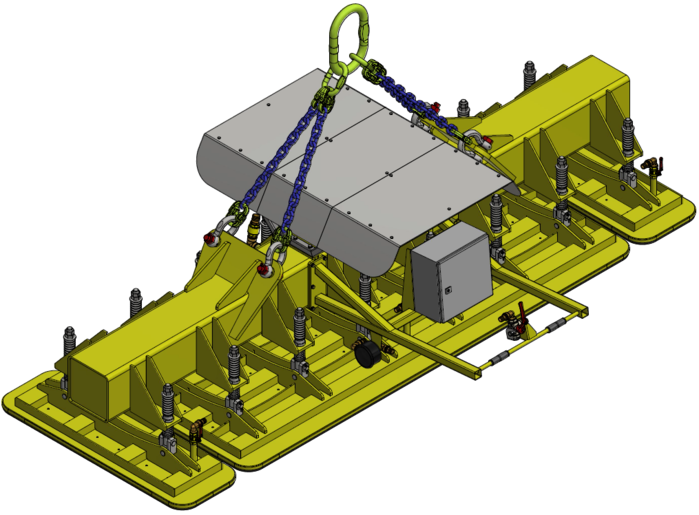

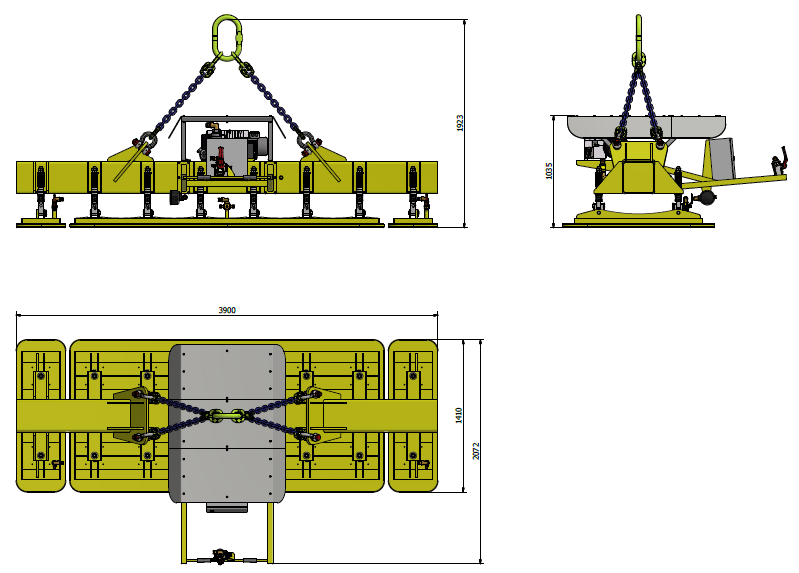

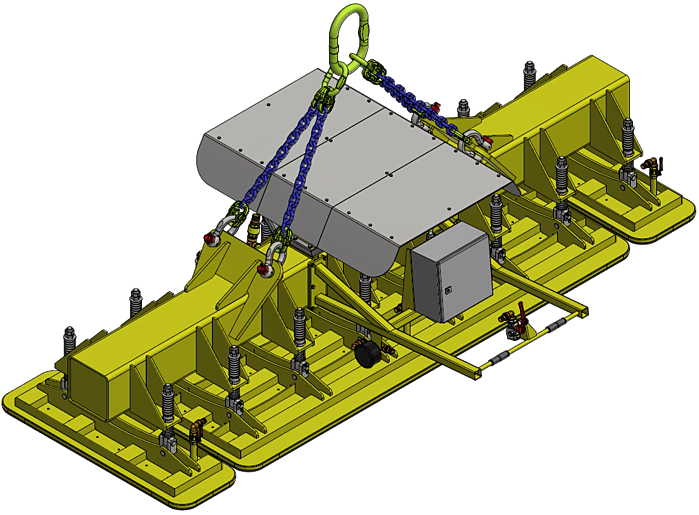

3D models + drawings
