VACUUM MANIPULATOR - VM 600/4+4-2000/OBS

Basic description:

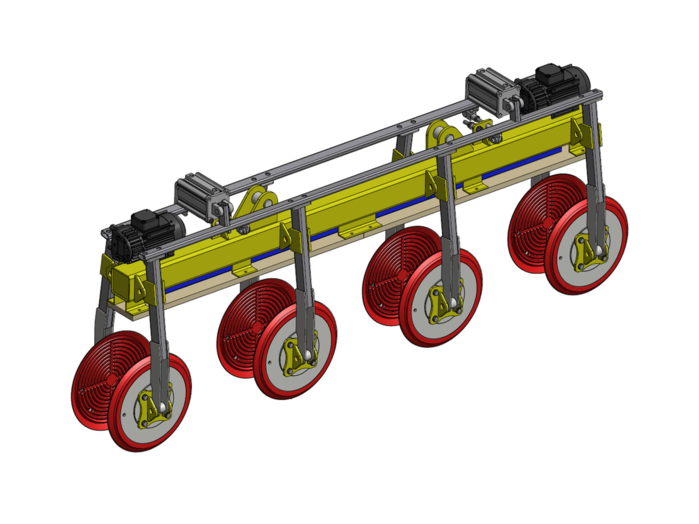

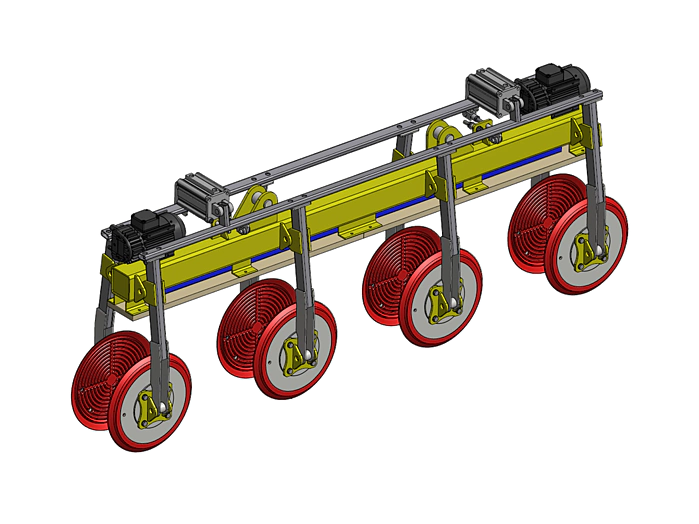

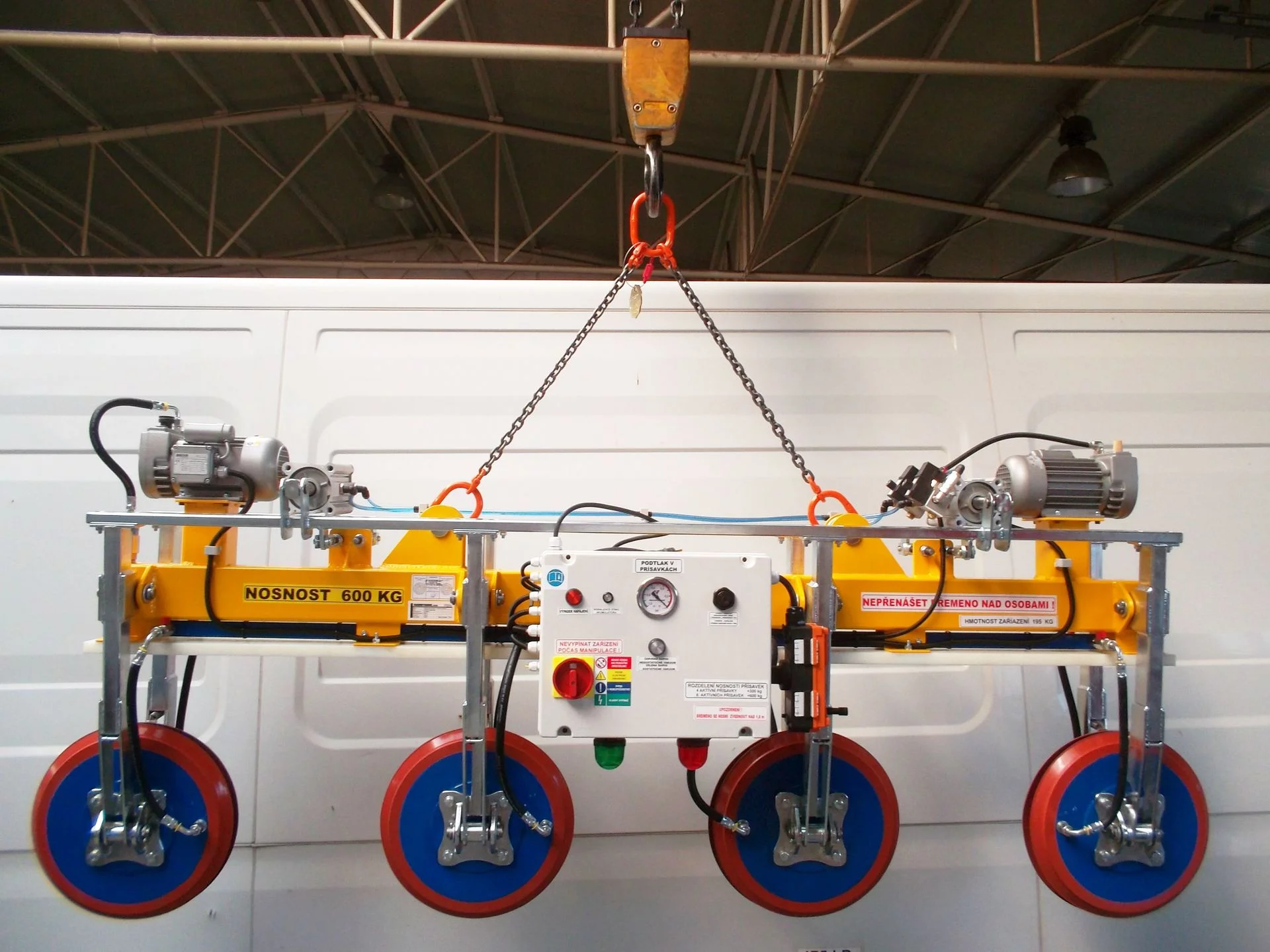

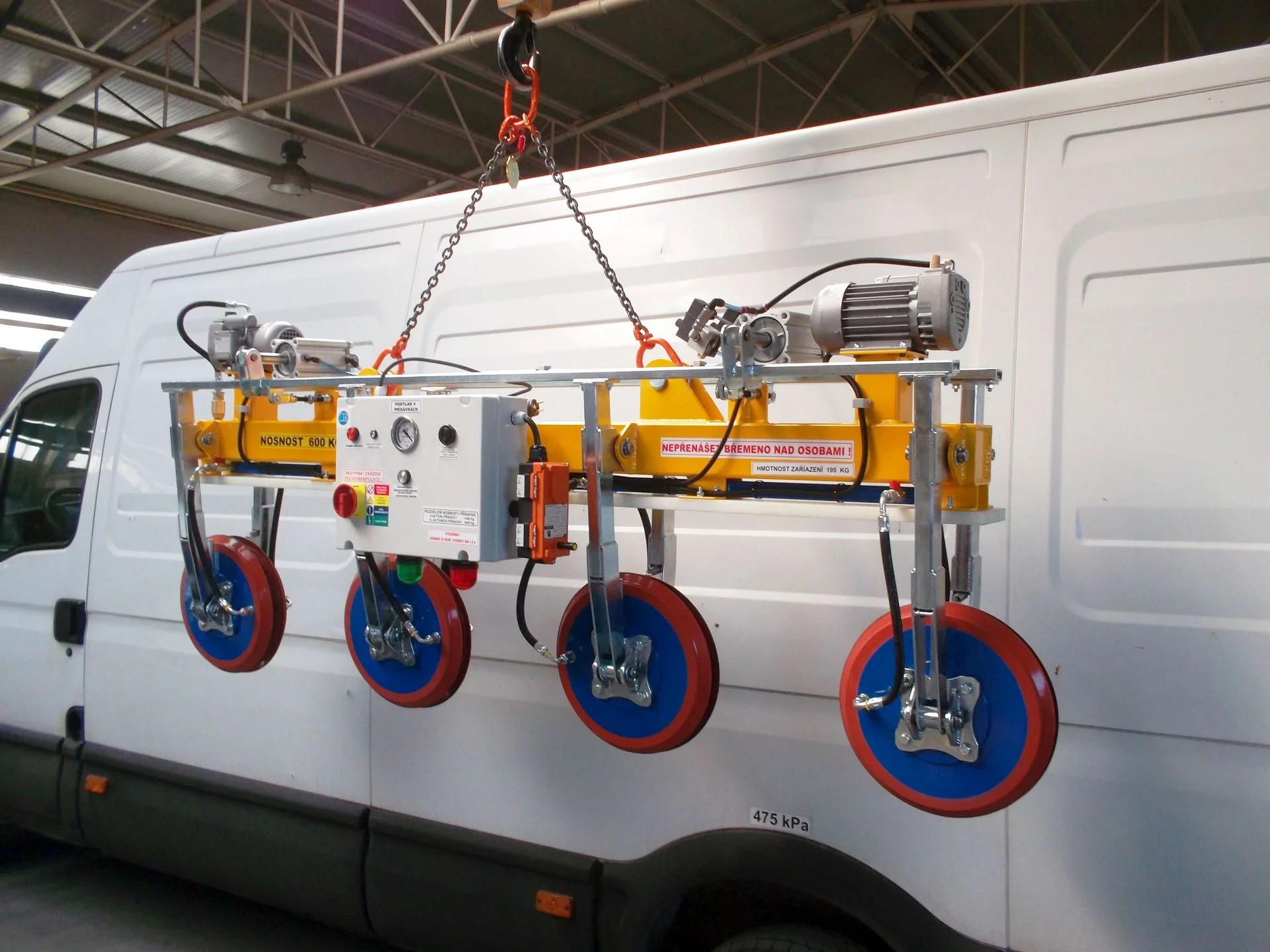

Main supporting steel structure with a multipositional suspension
pneumatic pressure suction cups
Eight suction cups 365 mm in diameter
vacuum pump - 400V three-phase system
the vacuum tank ensures safe lifting of the load even in the event of an unexpected failure of the compressed air.
acoustic and visual signalisation of insufficient vacuum in suction cups
GRIP - through push-button remote control - RDO
RELEASE - through push-button remote control - RDO
spiral cable for connecting a manipulator up to 3 meters
quick-clamping system el. connection through connector

Application:

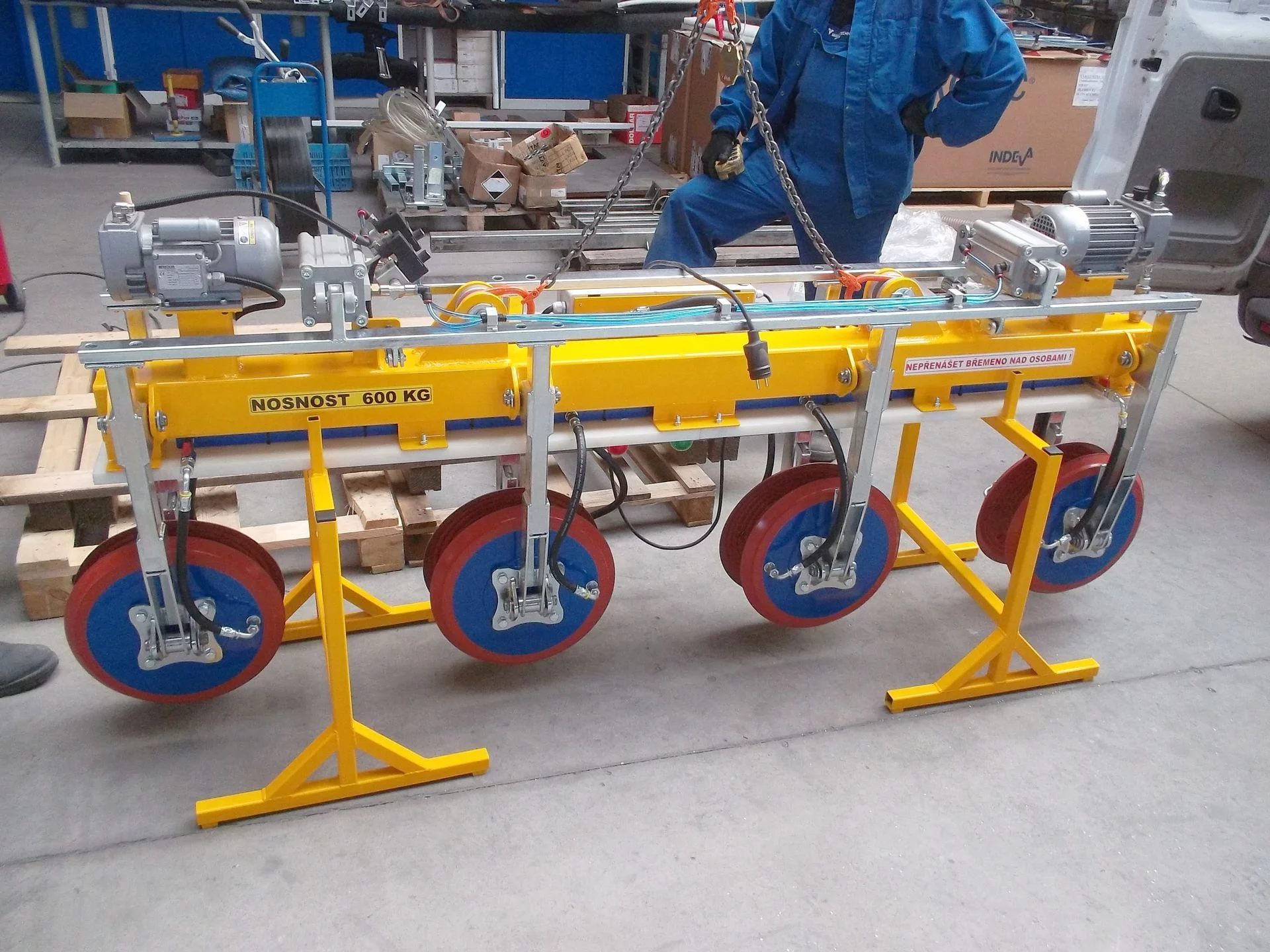

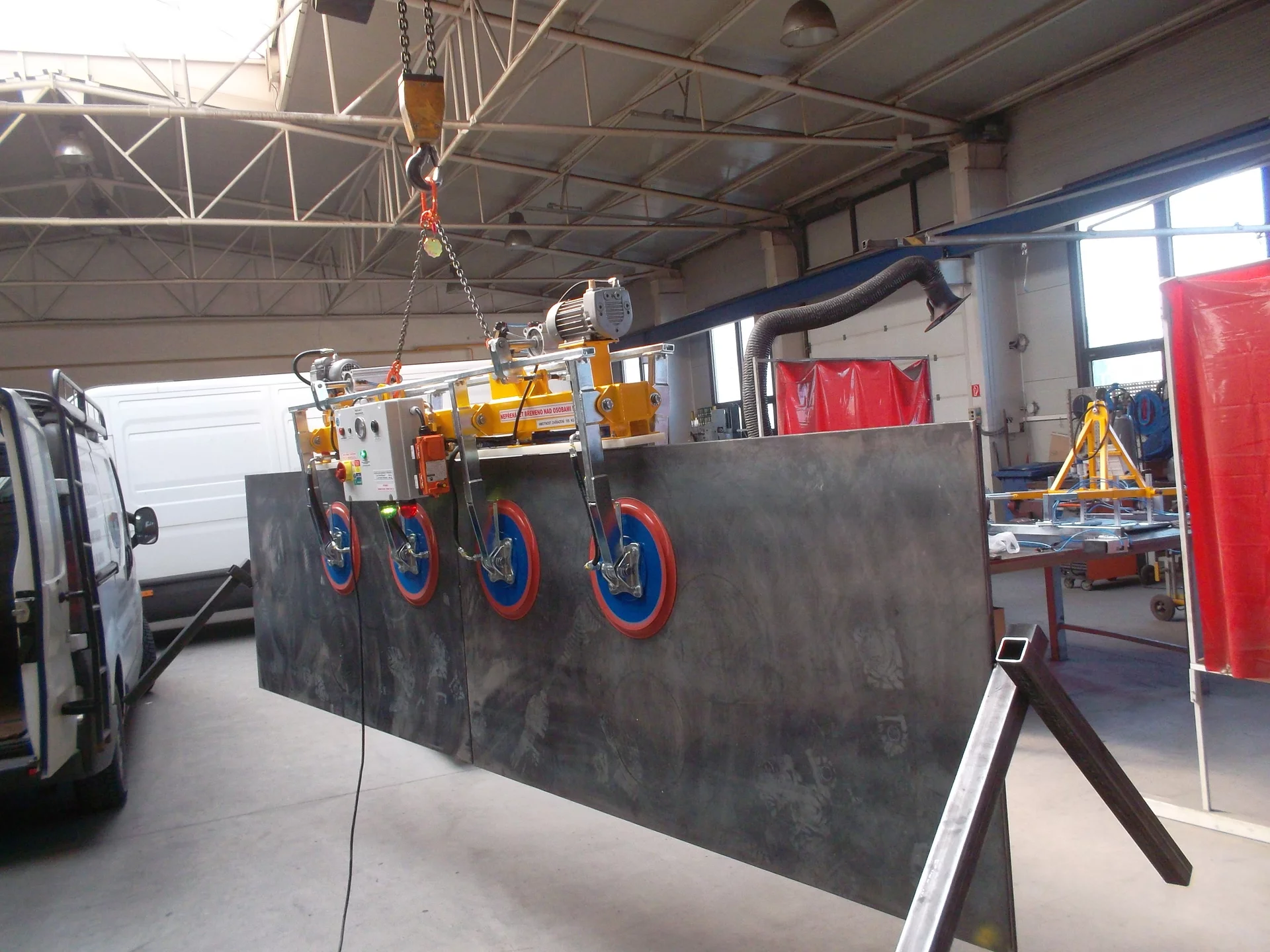

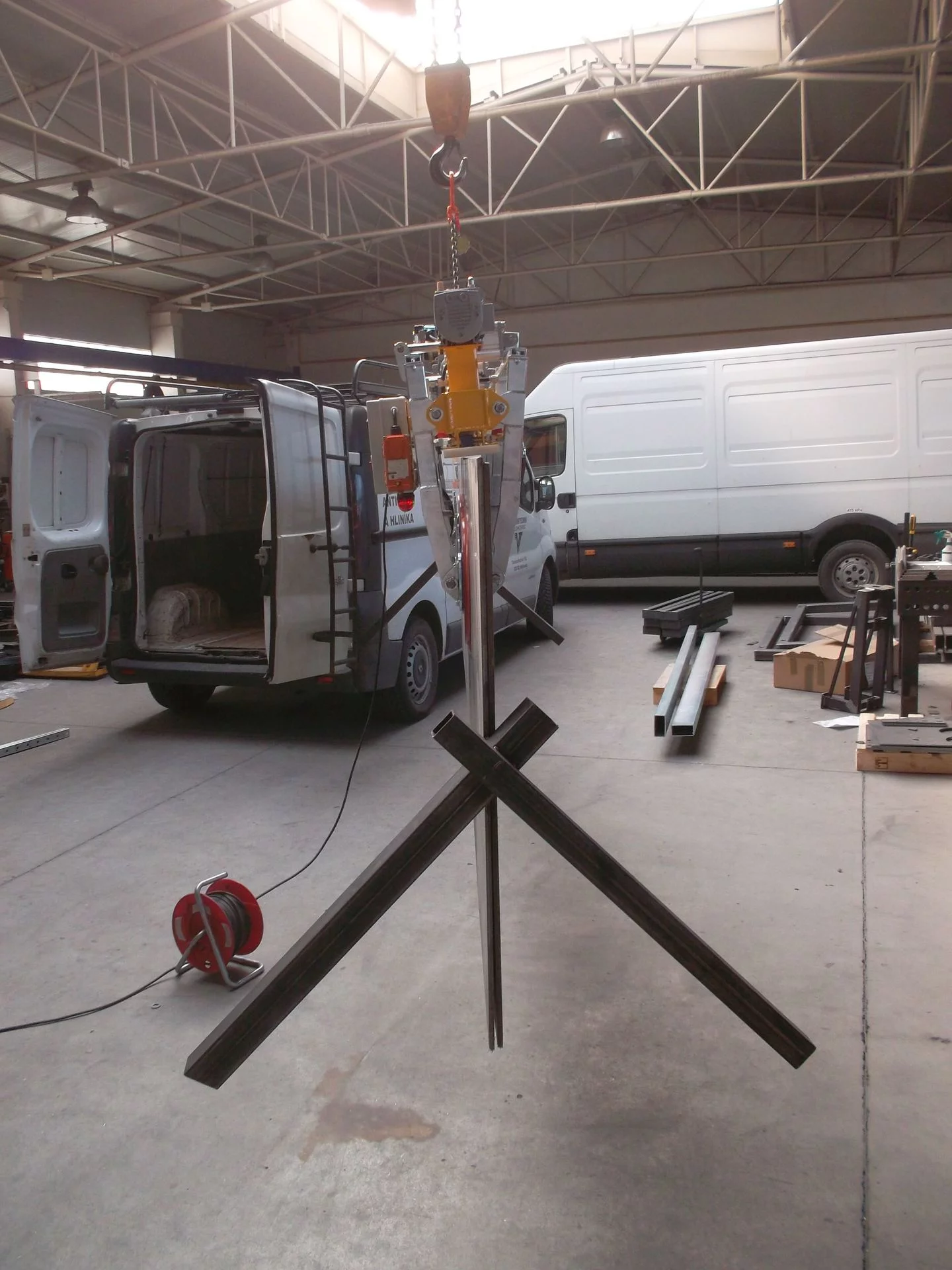

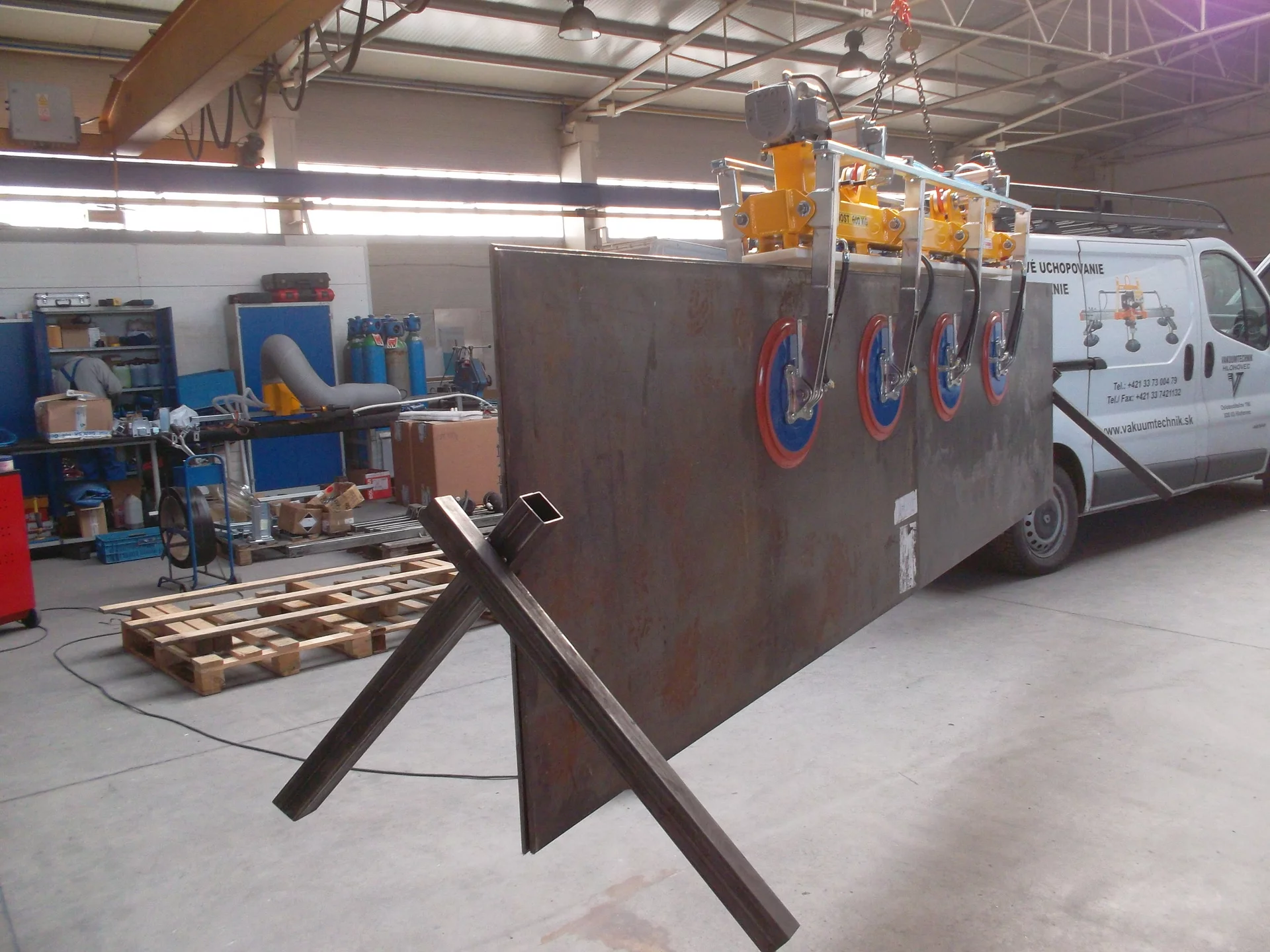

The vacuum manipulator VM 600/4+4-2000/OBS is a handy grasping device that allows you to grasp and handle large-sized flat loads up to 600 kg in vertical position within the work area, which is given by the range of the lifting equipment (crane or any other lifting device) the grasper will be suspended on.

Potential types of loads to be handled:

Glass plates and boards
Steel sheets, boards and non-ferrous metals (includingnon-magnetic)
Plastic plates and boards
Stone with grinded surface
Wooden plates and boards covered with air-tight finish

Benefits:

Simple – very convenient anddedicated device that is easy to operate
Reliable - guarantees high reliability and minimal maintenance
Safe – safety guaranteed in every situation

Basic technical information:


Maximum load capacity	600 kg (with negative pressure –0.6 bar (-60 kPa))
Designed for manipulation	in vertical position, suspended on a lifting device
Weight	195 kg
Max. dimensions of load	4000x3210 mm
Min. dimensions of load	1000x500 mm
Power supply	3 PE (PEN) 400VAC/50Hz/15VAC

Information table:

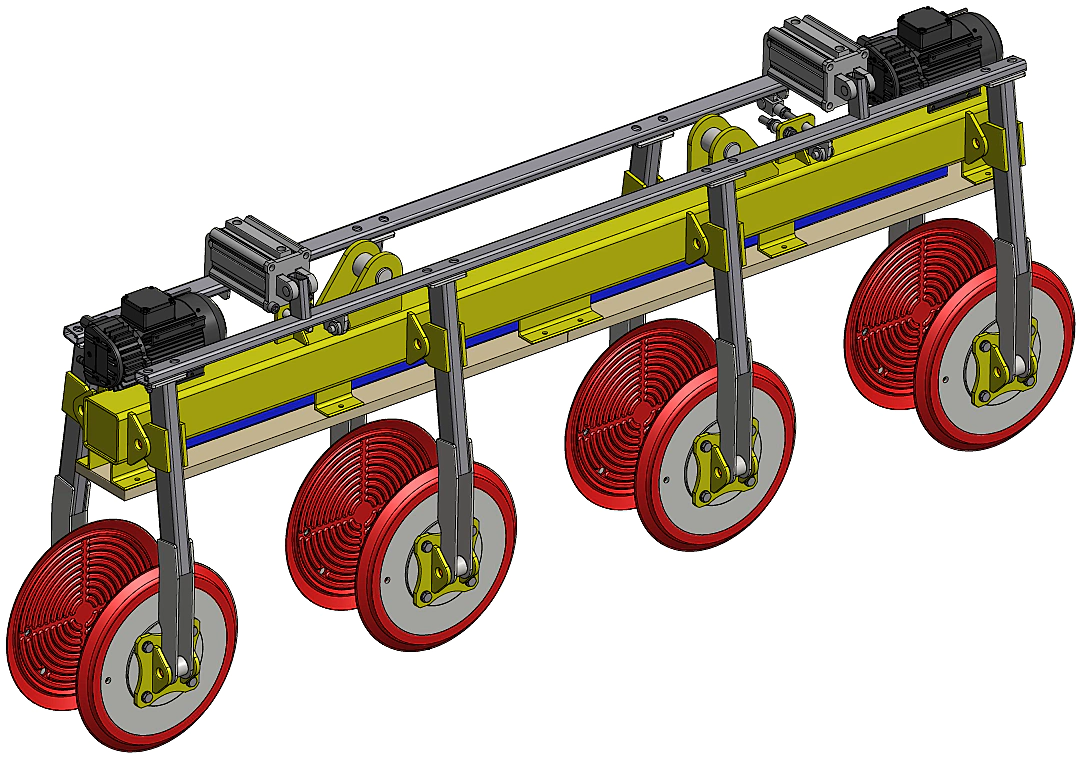

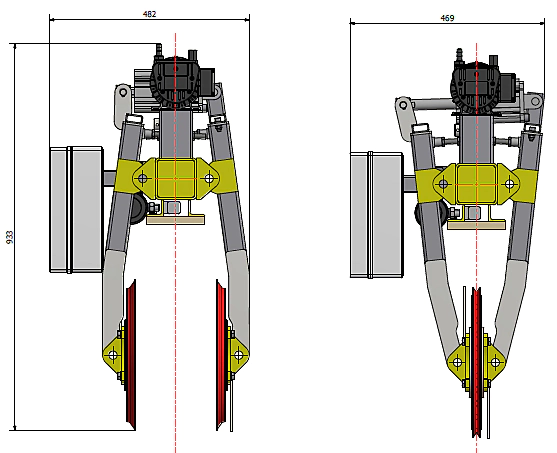

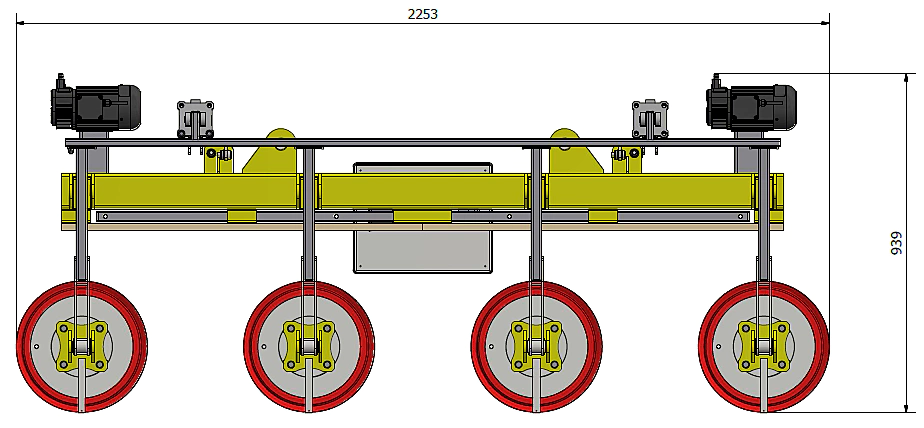

Number of suction cups / dimensions (mm)	MAX. CAPACITY (kg)	WEIGHT (kg)	Overall width	Overall depth (mm)	Overall height (mm)	Suction cup diameter (mm)
8/365	600	195	2000	500	950	365
