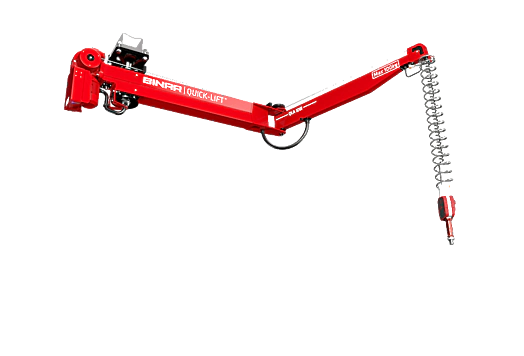

ELECTRONIC BALANCER - Quick-lift Arm (QLAi) OM – overhead costruction

Electronic balancer Quick-lift Arm (QLAi) OM - overhead construction is a sophisticated balance lifting device with its own column construction, manual rotation and electric lift.

Description:

Intelligent lifting device which meets the highest standards of ergonomics, working environment, safety and efficiency.

Unique integrated mechanical, electric, pneumatic swivel simplifies use and minimizes maintenance.
Easy to use thanks to outstanding reaction, regardless of load weight.
Exceptional safety achieved using our intelligent control systems.
The best auto balance available regardless of load weight.
High reliability and low power consumption results in superior cost efficiency

Application:

Electronic balancer Quick-lift Arm (QLAi) OM - overhead construction is a lifting device that is installed either on the steel ceiling of the user's hall or on the concrete ceiling of the user's hall. The manipulator is suitable for handling loads under the center of gravity.
This balancer can be realized in graduated load ranges from 50 kg to 200 kg.

Video preview

Benefits:

  • RELIABLE
    - electronic system guarantees high reliability and minimal maintenance
  • SAFE
    - guaranteed safe and ergonomic for the operator in every situation
  • VARIABLE
    - cooperates with vacuum, pneumatic, mechanical tools for gripping the load
    - suitable for handling loads under the center of gravity
  • EFFECTIVE
    - with its versatility and wide range of construction systems, it will meet even the most demanding requirements of the industry

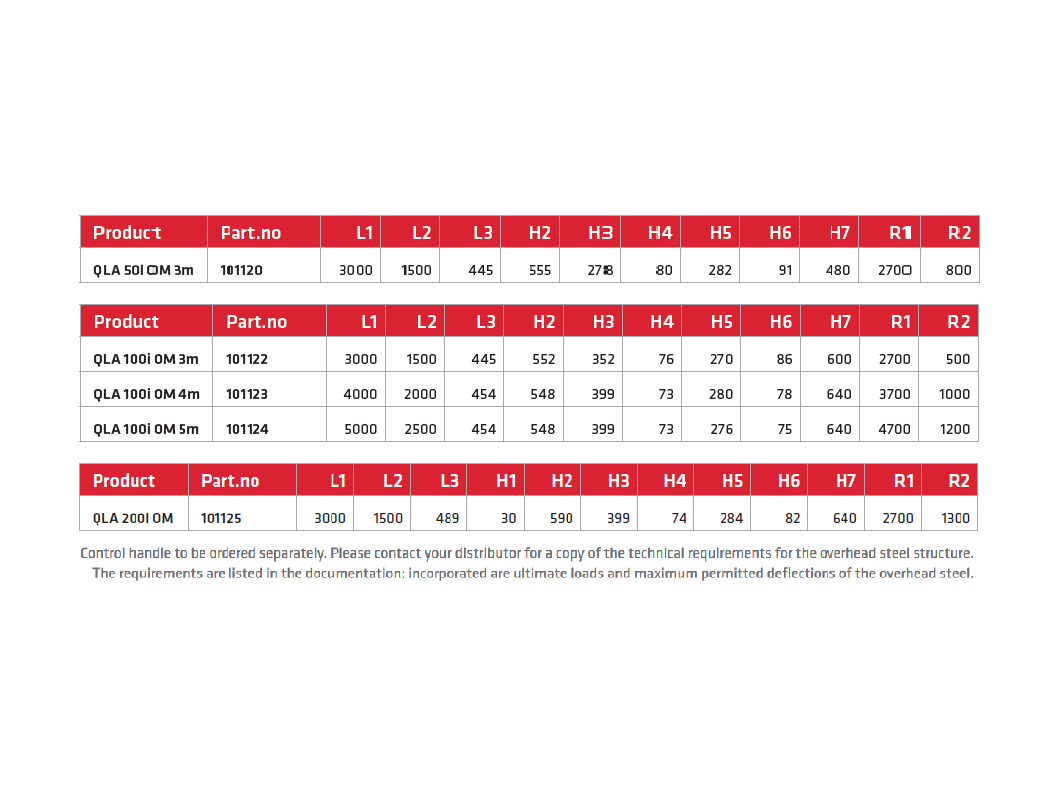

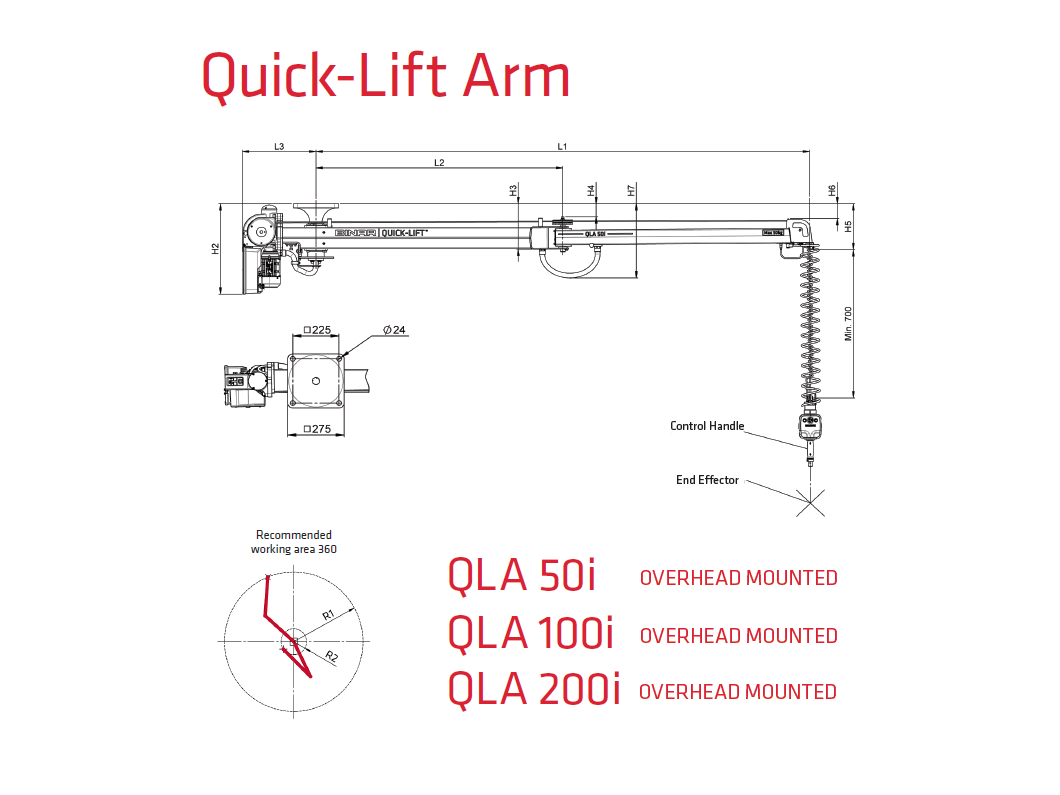

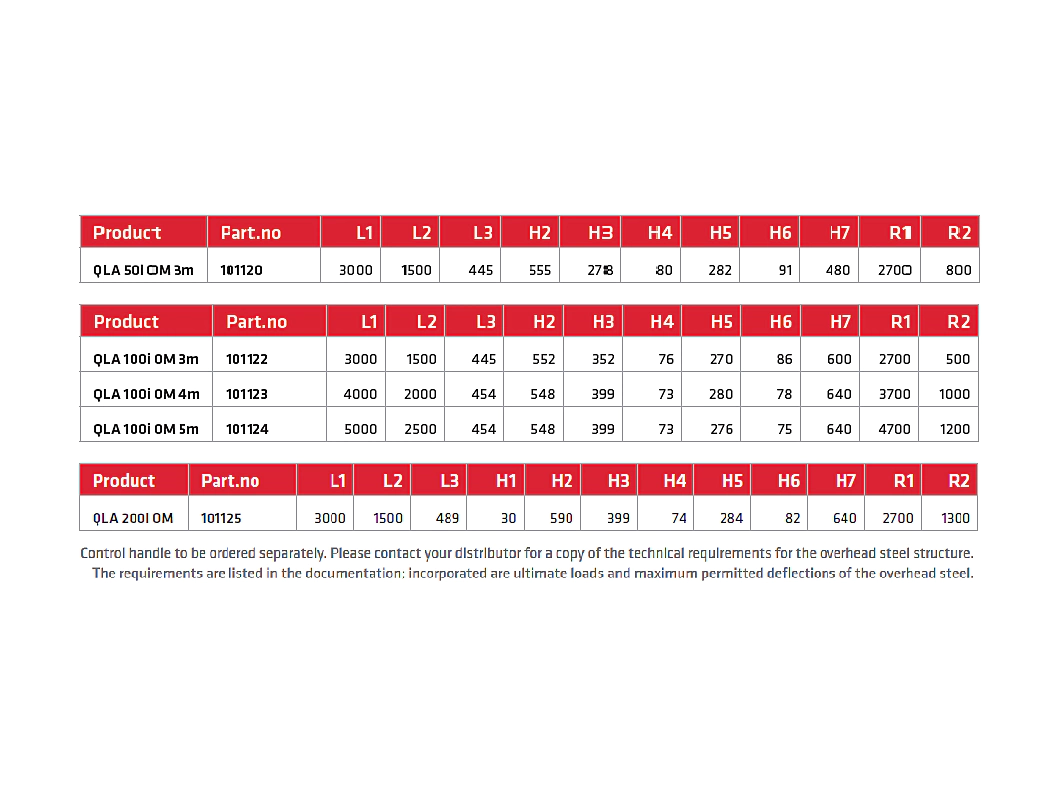

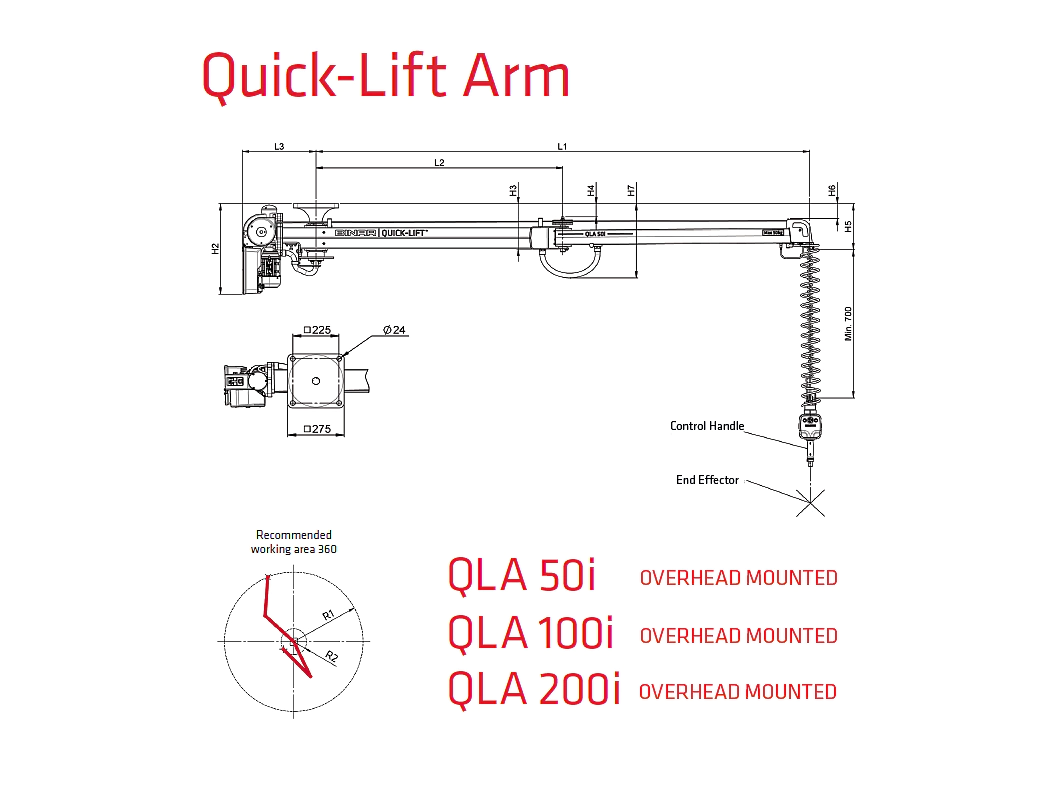

Basic technical data:

TYPEQLA 50i - OMQLA 100i - OMQLA 200i - OM
Maximum load:50 kg100 kg200 kg
Stroke drive:Continuously controlled asynchronous electric motorContinuously controlled asynchronous electric motorContinuously controlled asynchronous electric motor
Lift:2700 mm2700 mm2700 mm
Arm boom length:3000 mm3000 mm, 4000 mm, 5000 mm3000 mm
Electrical connection:230V, 50–60 Hz, 1 phase, 10 A230V, 50–60 Hz, 1 phase, 10 A230V, 50–60 Hz, 1 phase, 10 A
Product-Leaflet_50i_overhead_EN_Binar-Quick-Lift-Systems.pdf
Product-Leaflets_QLA_100i_OM_EN_BQLS.pdf
Product_Leaflet_QLA_200i_OM_EN_BQLS.pdf

Photo gallery - handling of the car seat - 2 rows using a mechanical-pneumatic tool

Manipulácia s plechom
Manipulácia s plechom

Photo gallery - handling of semi-finished products
