Thanks to the low weight of the aluminum boom, the boom can be easily rotated. It is suitable for handling loads that are fragile, valuable and require precise positioning.

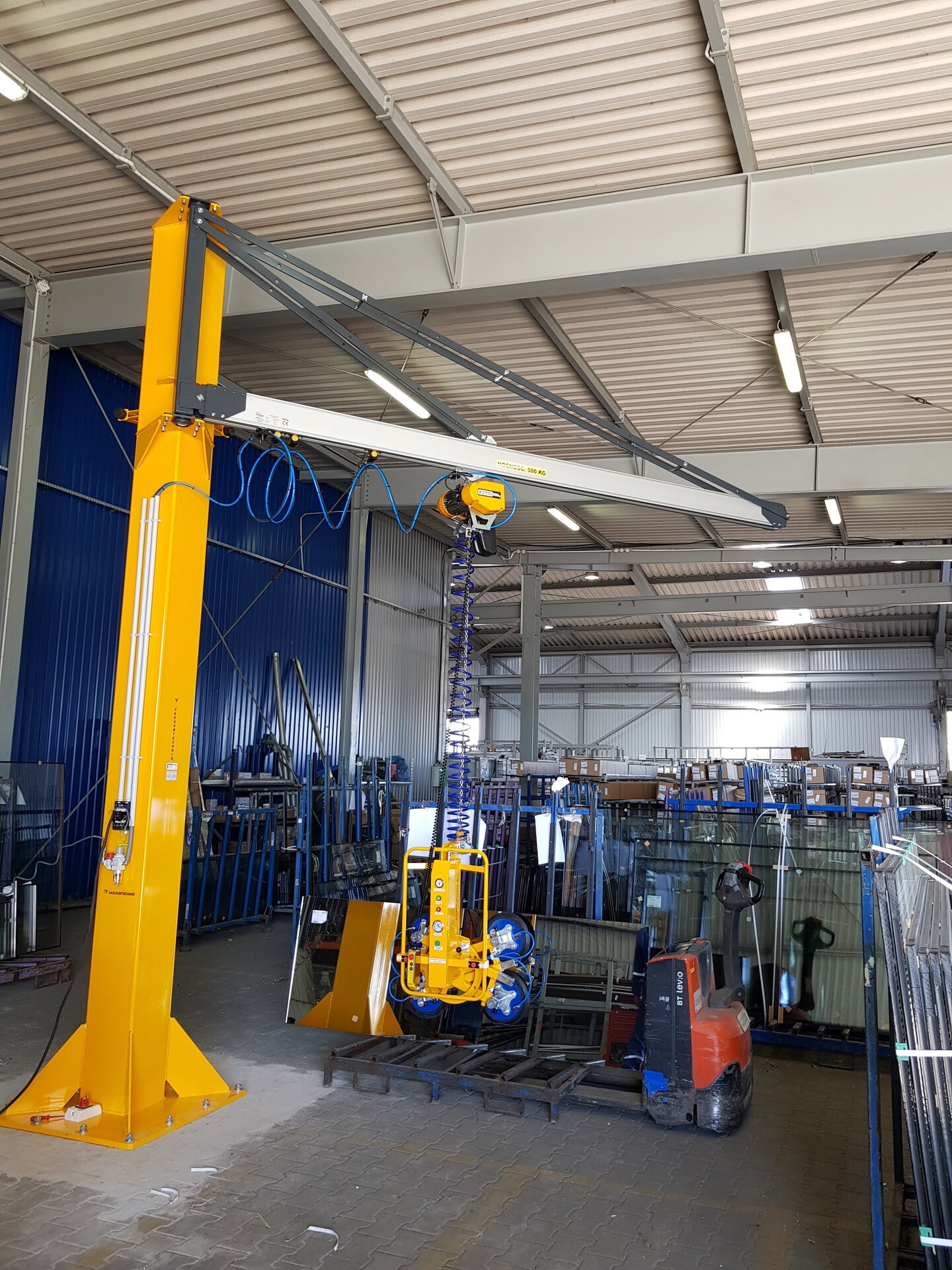

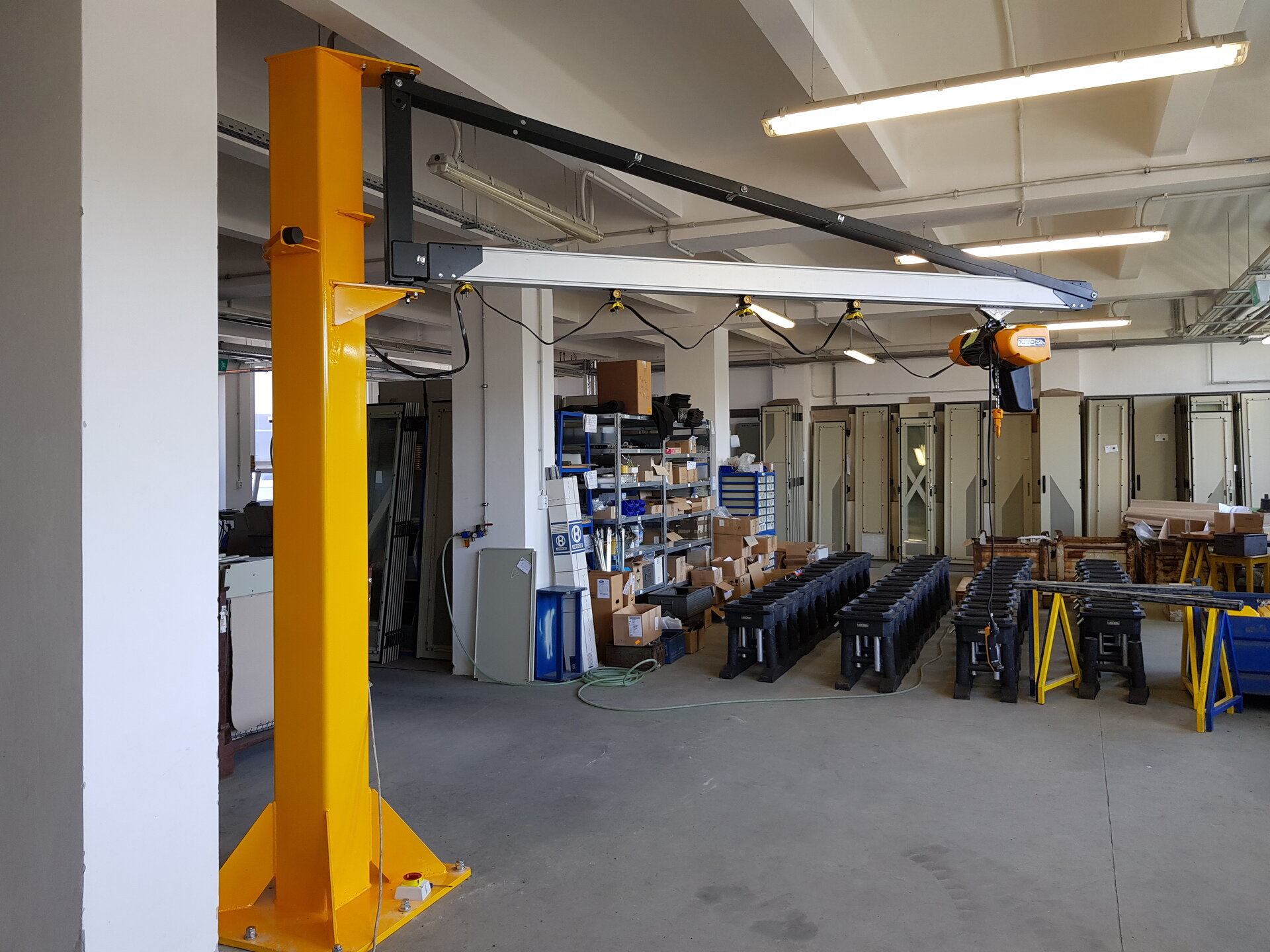

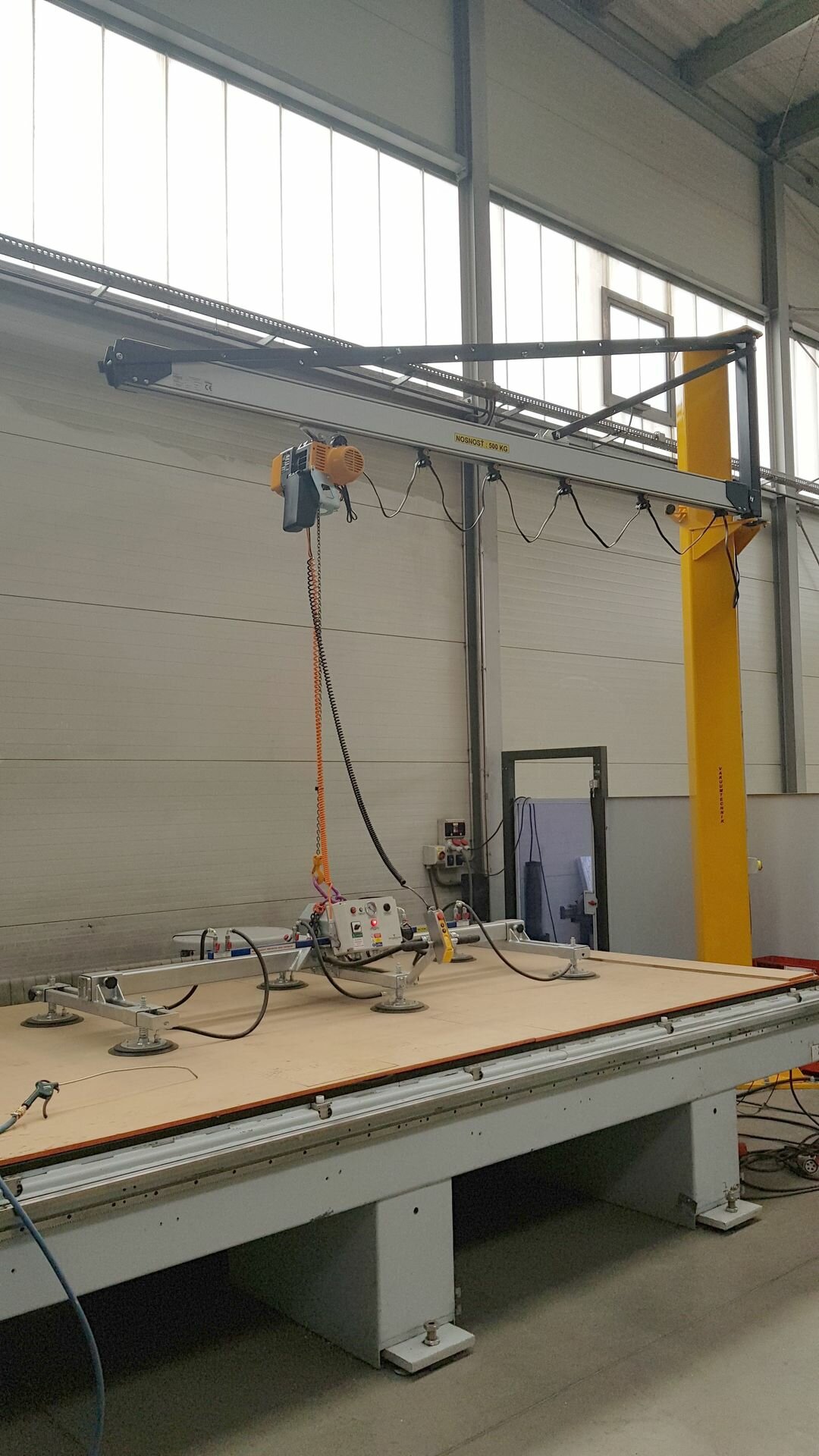

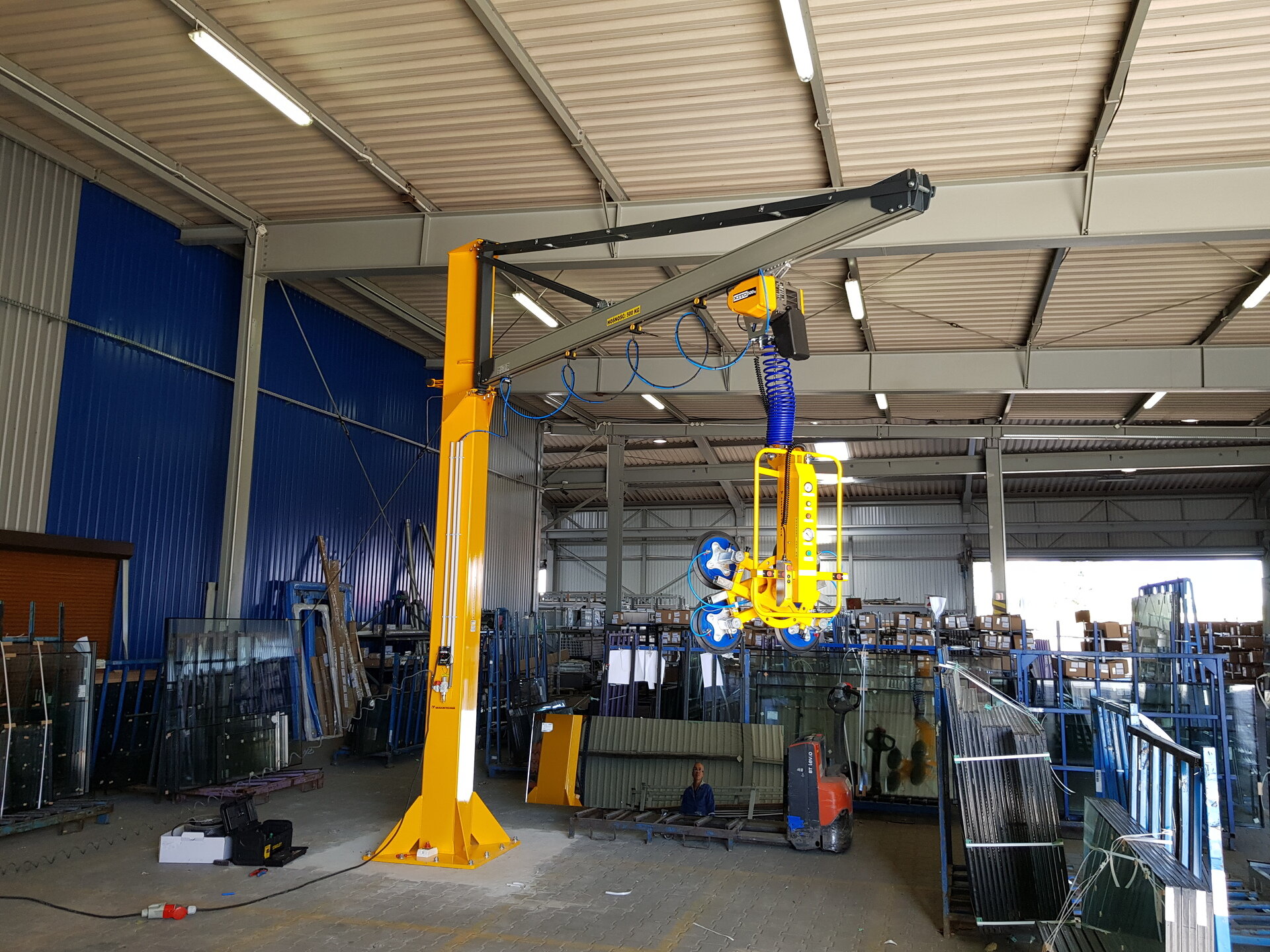

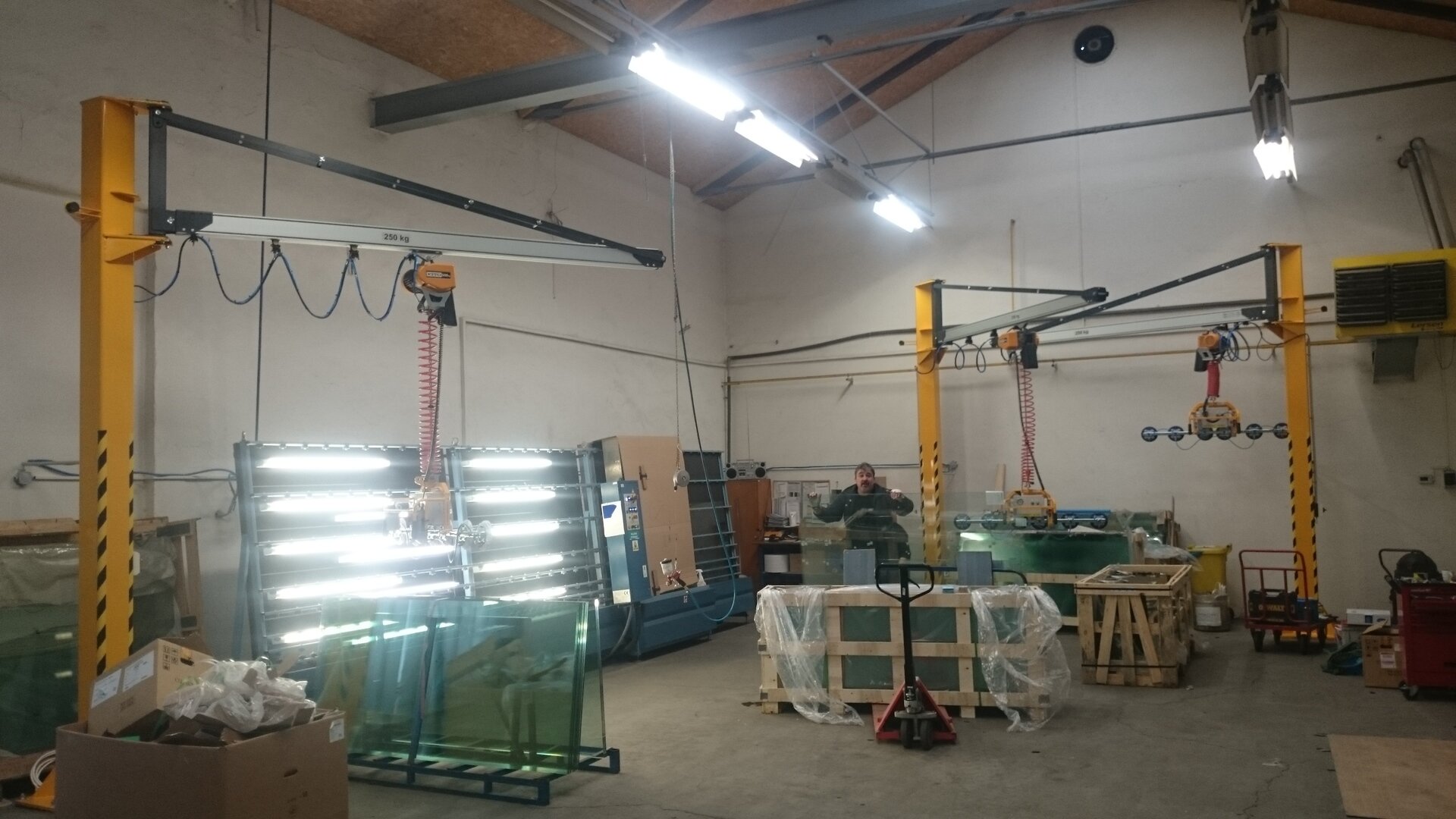

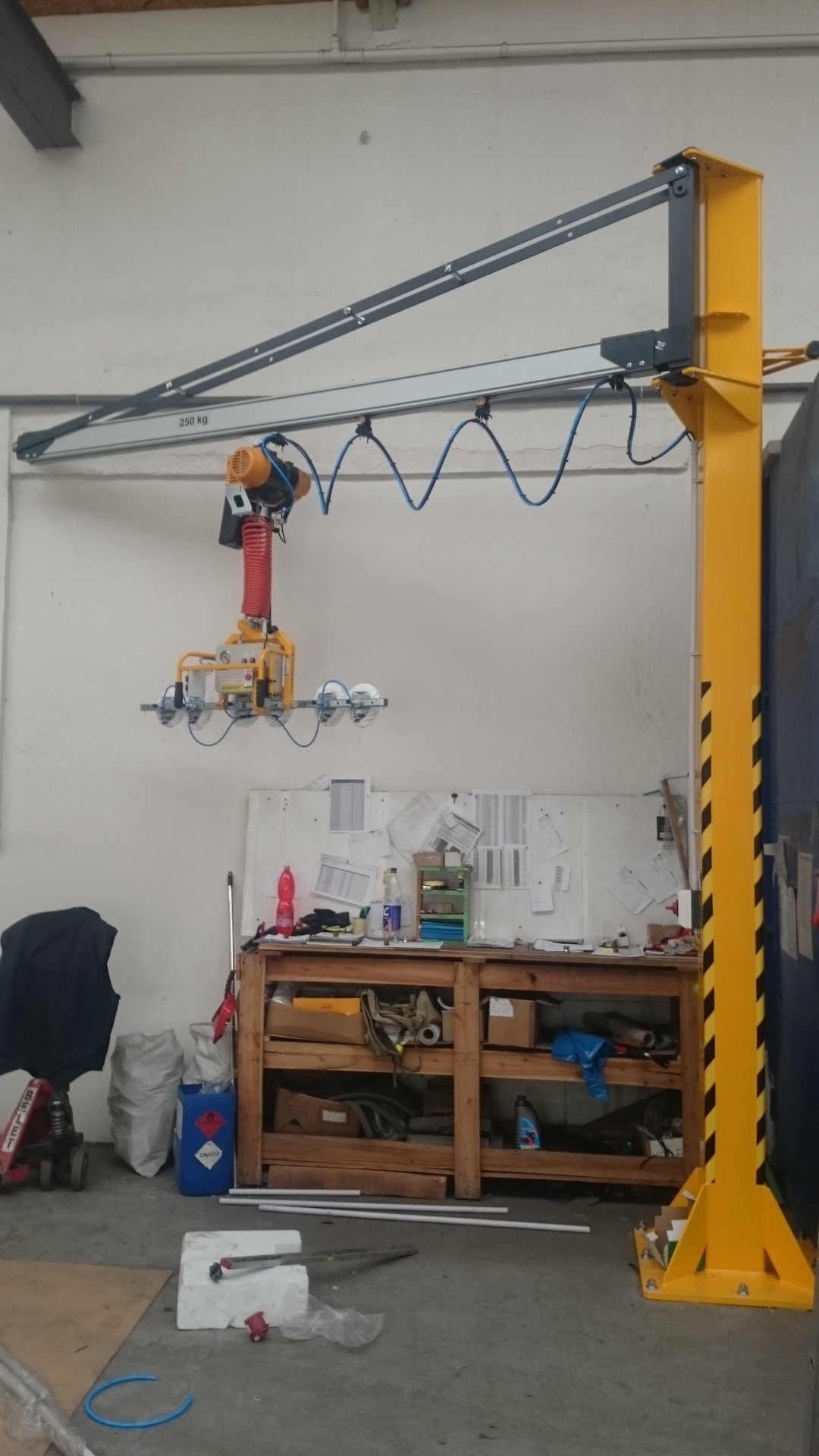

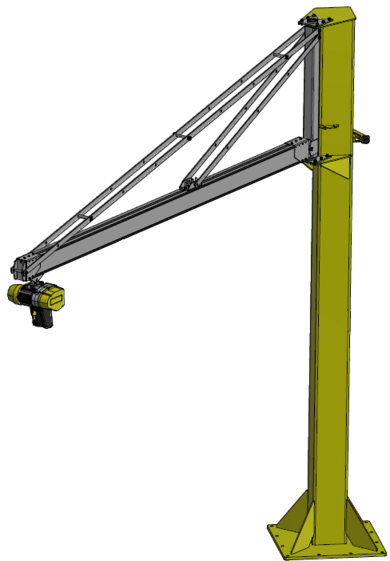

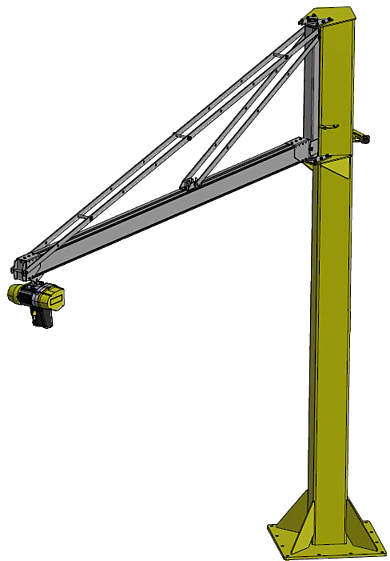

LIGHT COLUMN JIB CRANE - OVS Classic

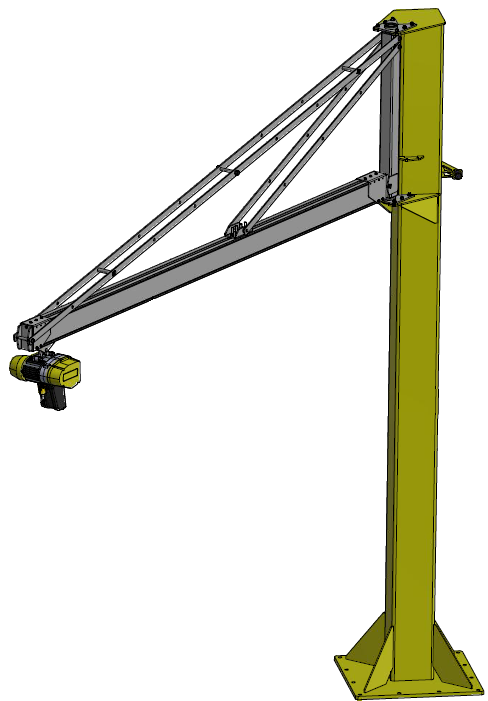

Light column jib crane - OVS Classic is clever lifting device with own column construction, with lightweight aluminum boom with manual rotation and travel and electric lift.
Application:

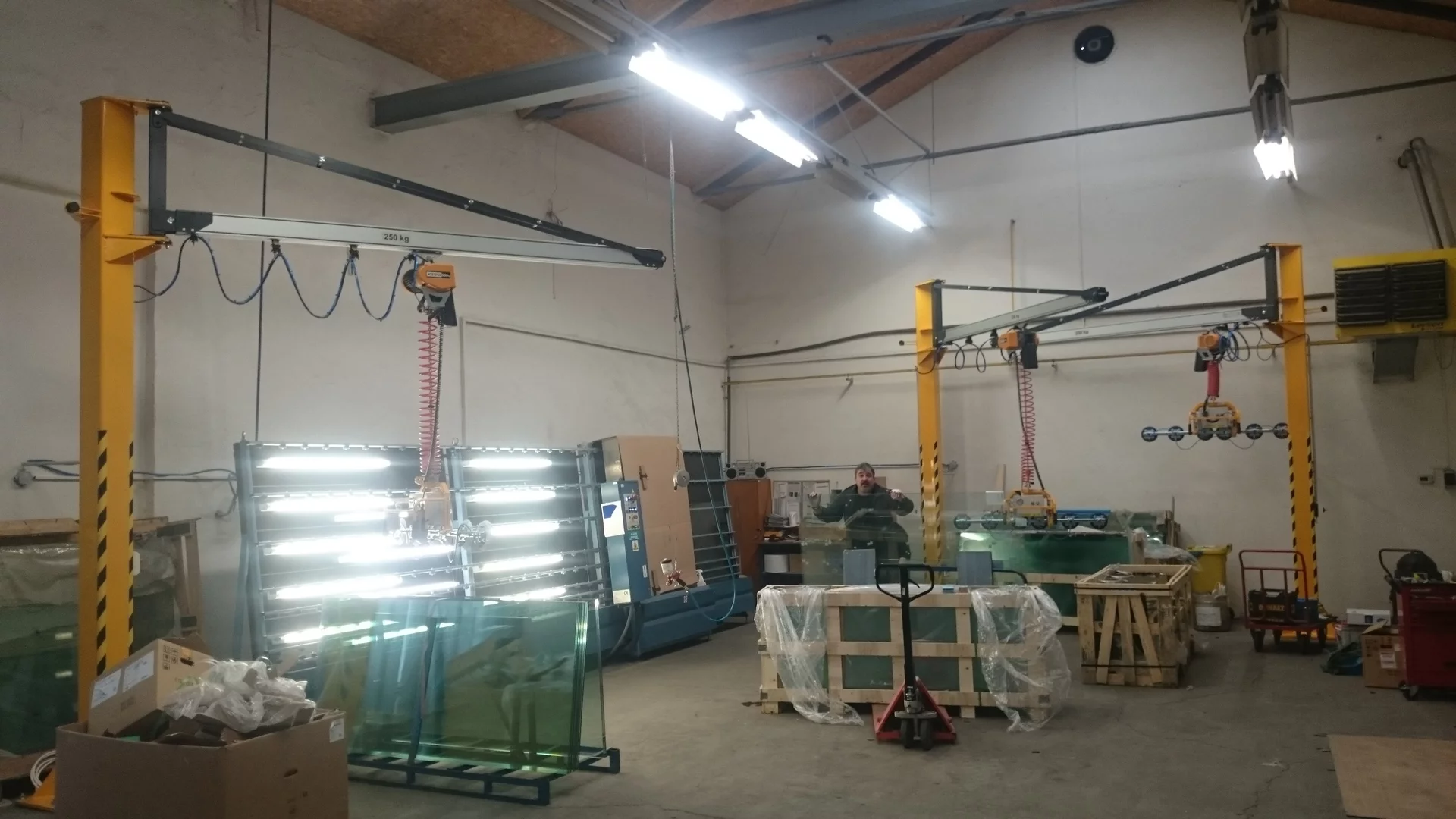

Light column jib crane - OVS Classic is a universal lifting device that is installed on the concrete floor of the user's hall with chemical anchors. The device is suitable for the transport of materials along the boom route. This device can be implemented in graduated load ranges from 150 kg to 1000 kg.
Benefits:
- easy manipulation
- high reliability
- guaranteed safe
- manual guidance of the suspended tool in the "x" axis
Basic technical information:
| Lifting capacity (WLL) | 150, 250, 500 a 1000 kg |
| Lifting speed | 17/2,8 m/min (125 kg), 10/1,7 m/min (250 kg), 7,6/1,3 m/min (500 kg), 7,1/1,2 m/min (1000 kg) |
| Travel speed of electric hoist | manual pusher |
| Speed of rotation jib crane | manual pusher |
| Power supply | 3 PE (PEN) 50 Hz 400V / TN-C |
Information table:

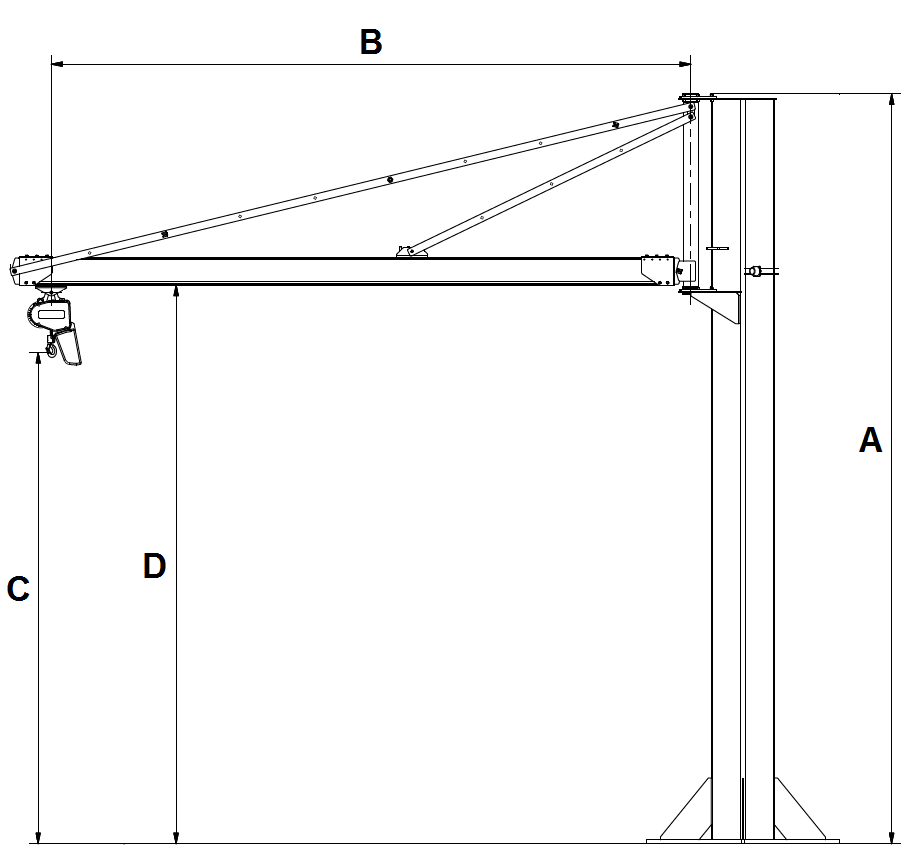

| TYPE OVS Classic | ELECTRIC HOIST (kg) | MAX. CAPACITY (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|
| OVS Classic 150 | EQ001IS | 150 | min. 3550 max. 5250 mm | min. 2000 max. 6000 mm | min. 2500 max. 3500 | min. 3000 max. 4500 | 600 |
| OVS Classic 250 | EQ003IS | 250 | min. 3550 max. 5250 mm | min. 2000 max. 6000 mm | min. 2500 max. 3500 | min. 3000 max. 4500 | 750 |
| OVS Classic 500 | EQ005IS | 500 | min. 3550 max. 5250 mm | min. 2000 max. 6000 mm | min. 2500 max. 3500 | min. 3000 max. 4500 | 900 |
| OVS Classic 1000 | EQ010IS | 1000 | min. 3550 max. 5250 mm | min. 2000 max. 6000 mm | min. 2500 max. 3500 | min. 3000 max. 4500 | 1000 |
